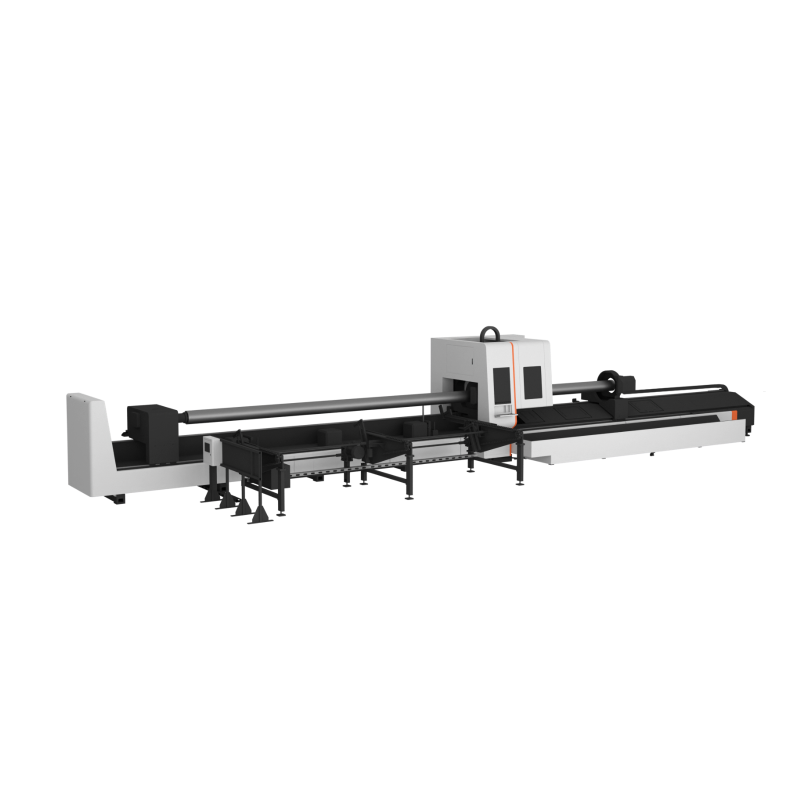

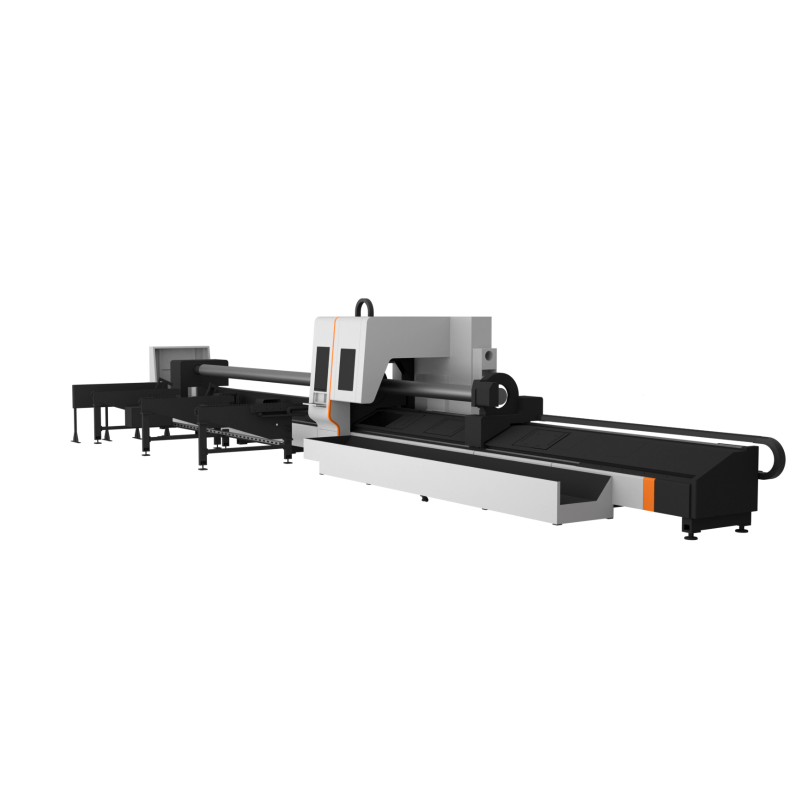

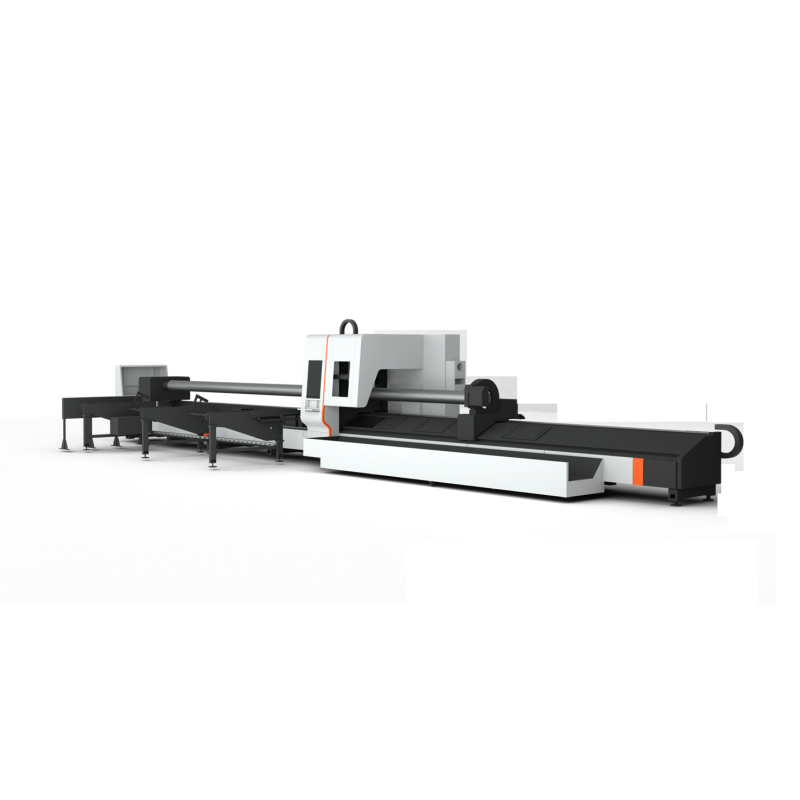

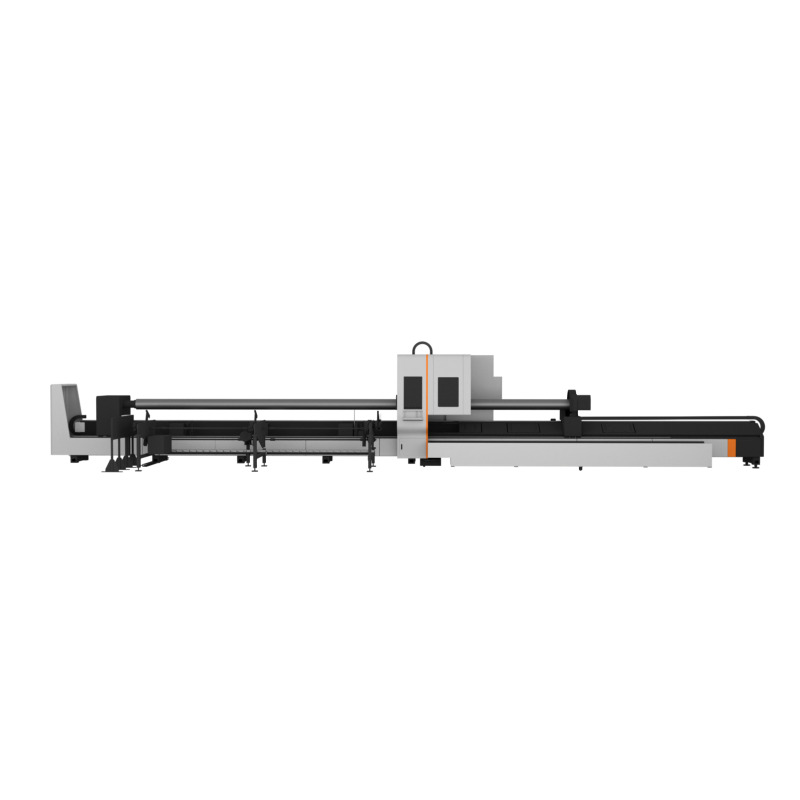

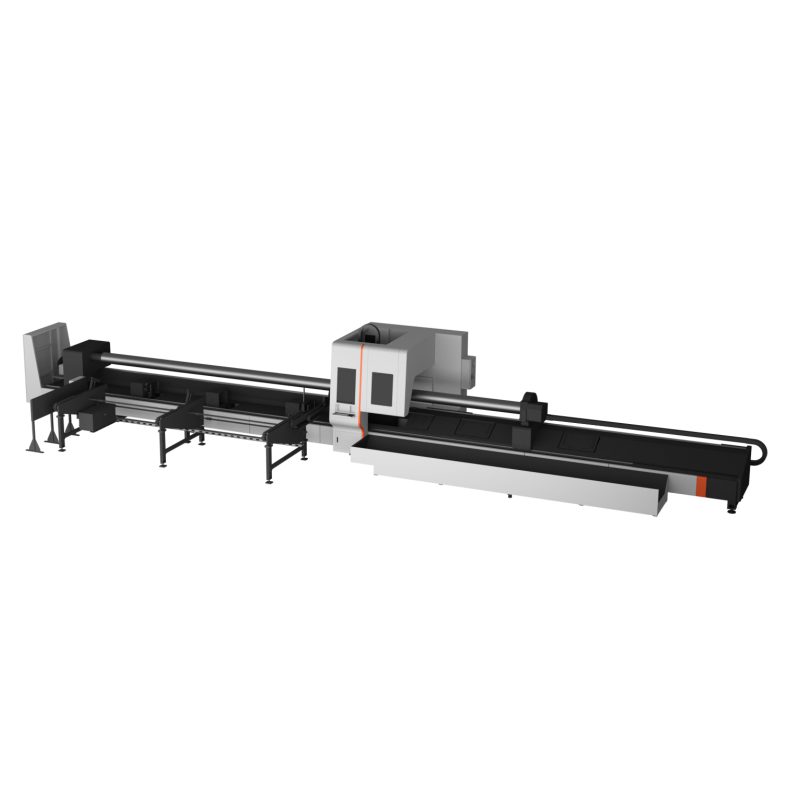

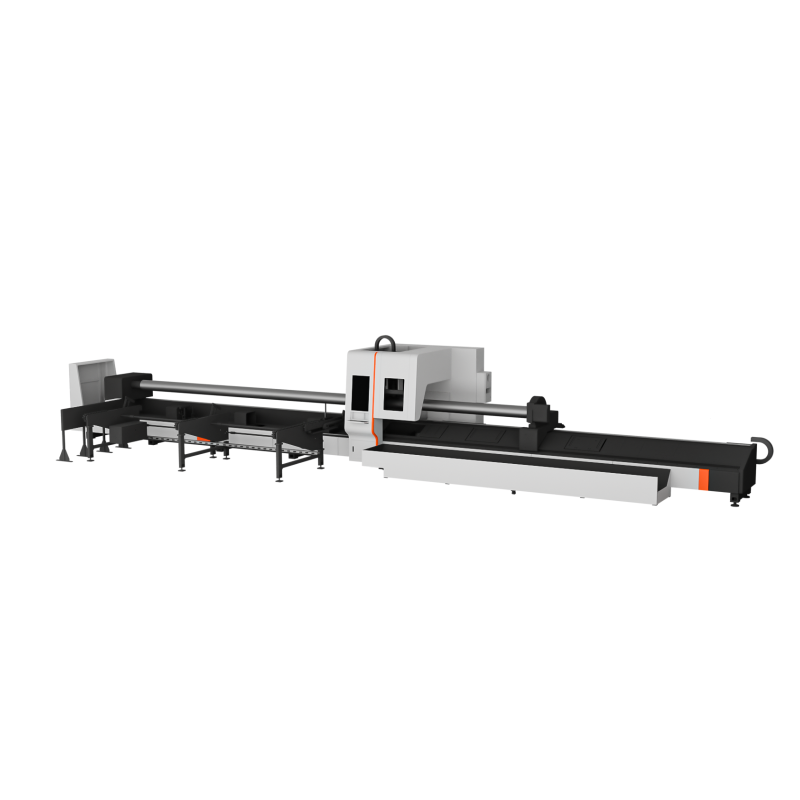

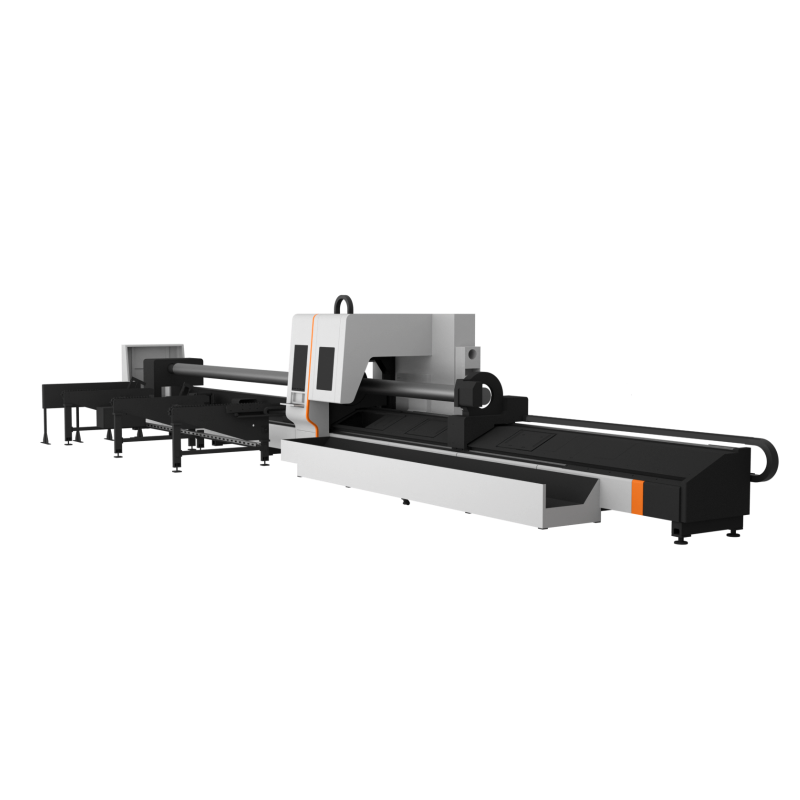

Three Chuck Laser Tube Cutting Machine

Heavy Duty Fiber Laser Pipe Cutting Machine especially design for thick and large size tube cutting, with automatic loading and downloading increase the production efficiency very well.

Chat Now

Description
Specifications
FAQ

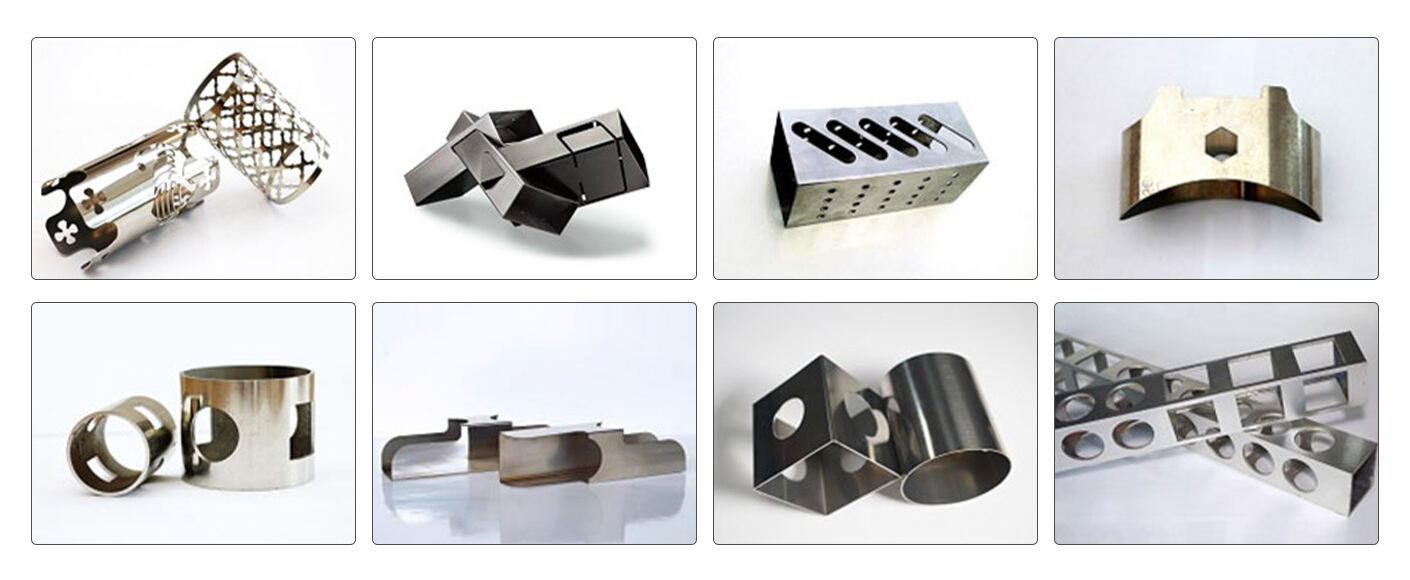

Sample Display

For machine prices and efficient production solutions, please contact us!

+86-13280023931

[email protected]

Description

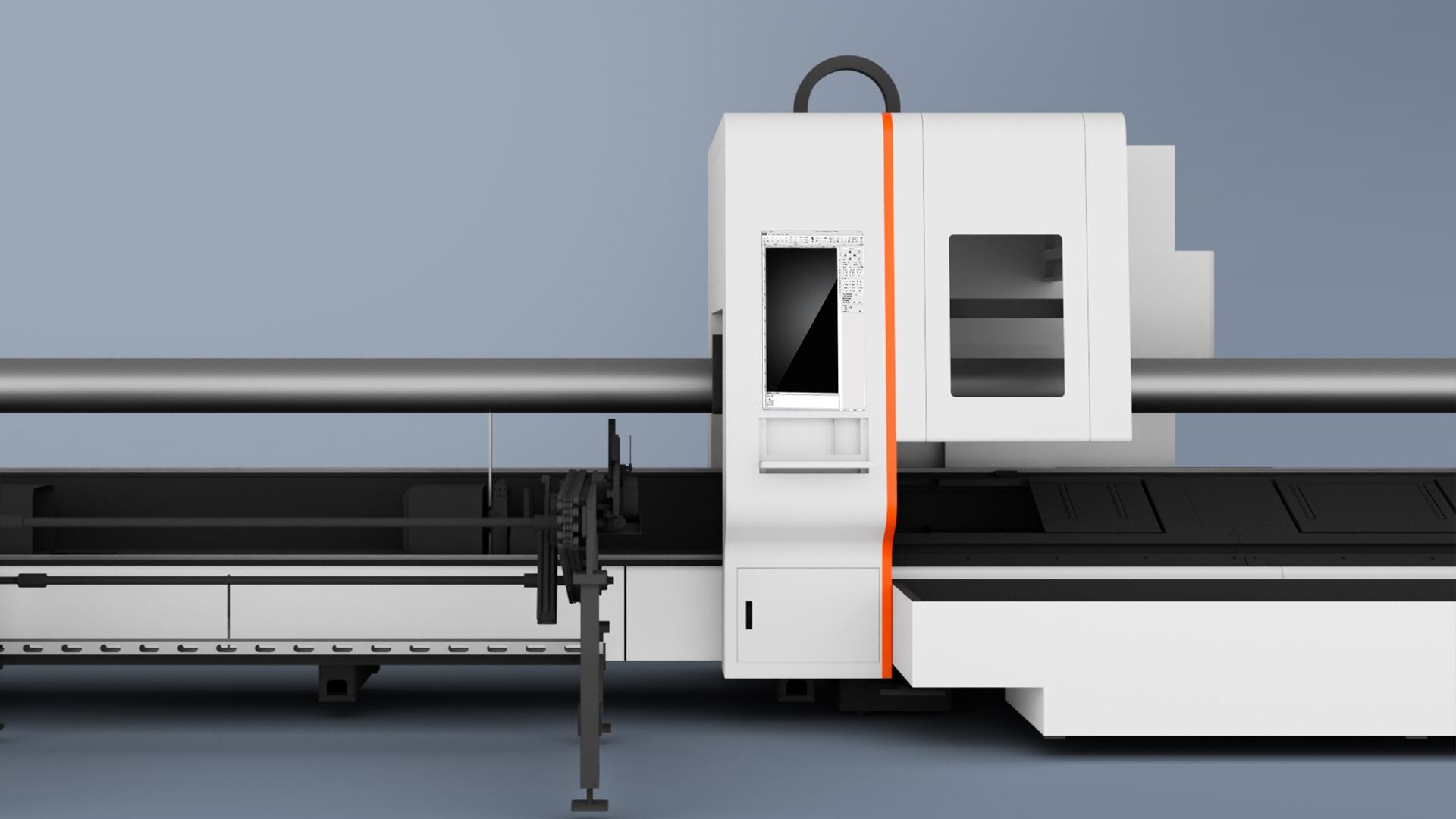

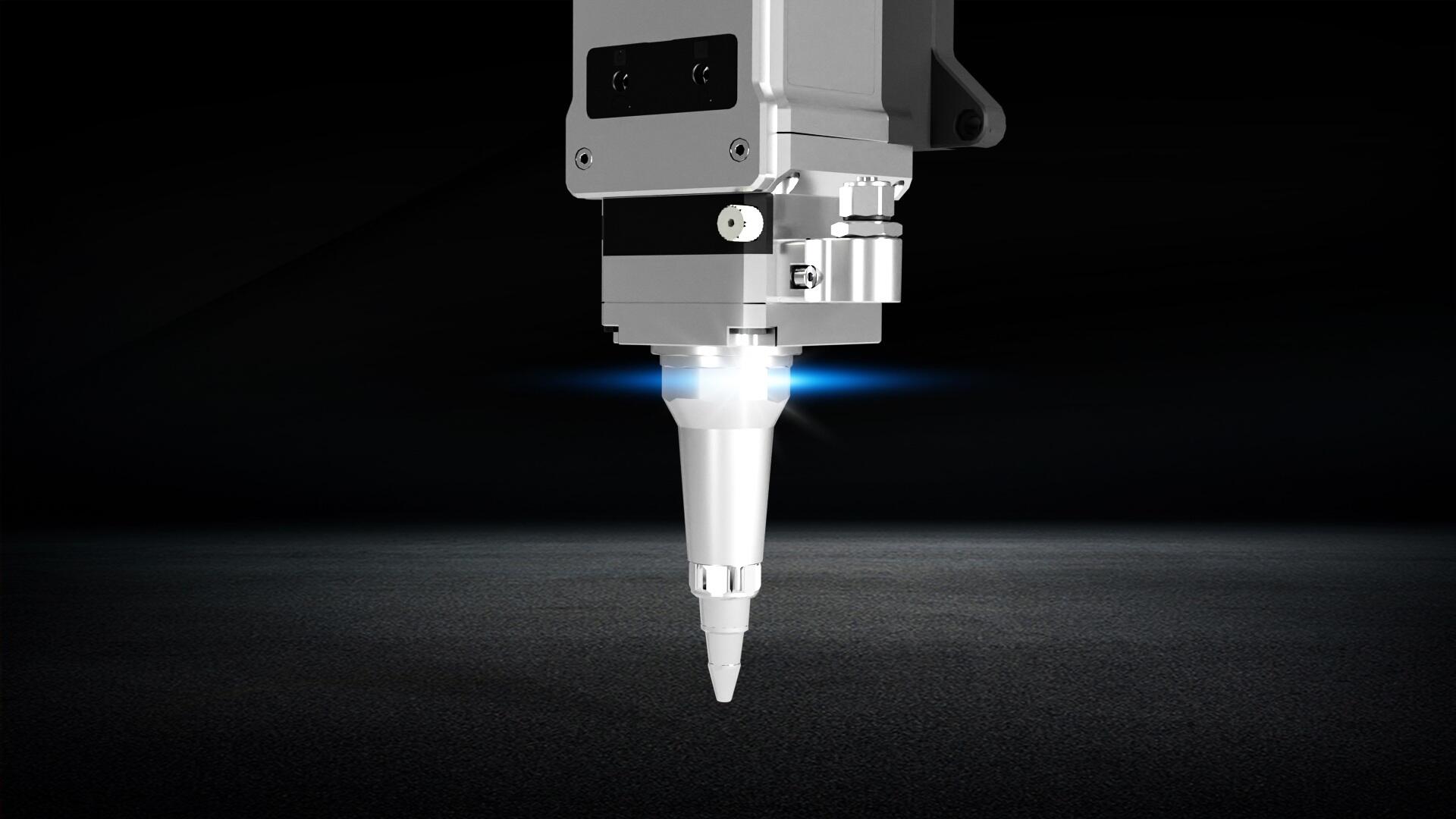

The laser head actively avoids obstacles, the dynamic response and path avoidance algorithms significantly reduce the risk of laser head collision caused by workpiece lifting.

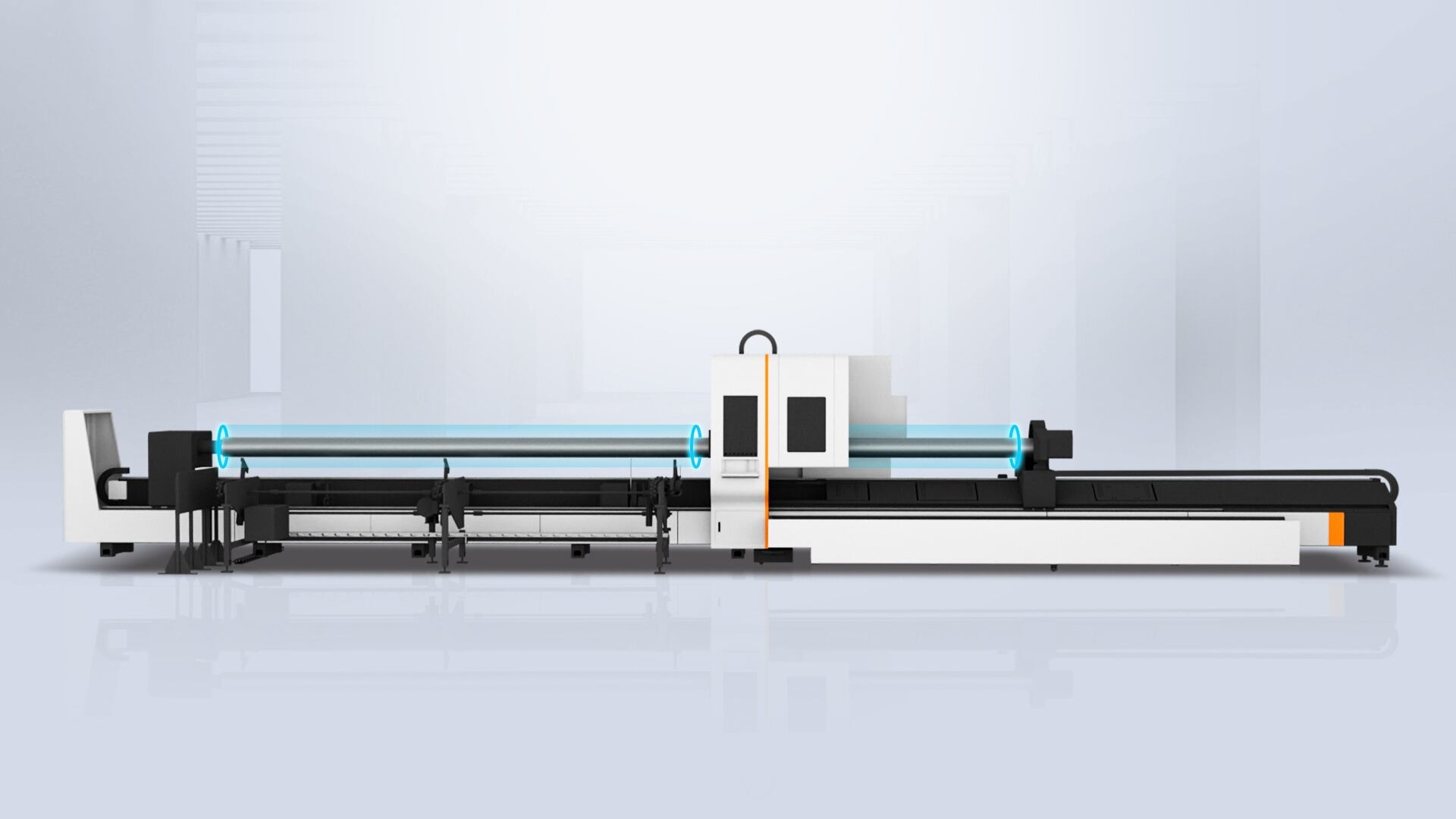

Three chucks grip the workpiece, can avoid bending state cutting, the middle rotating chuck can prevent the inertia of the high-speed rotation of long material to affect the accuracy, especially suitable for the cutting of longer size workpiece.

Excellent intelligent system, stable and reliable, easy to operate, rich functions, suitable for various processing occasions, to bring intelligent human-computer interaction experience to users.

One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.

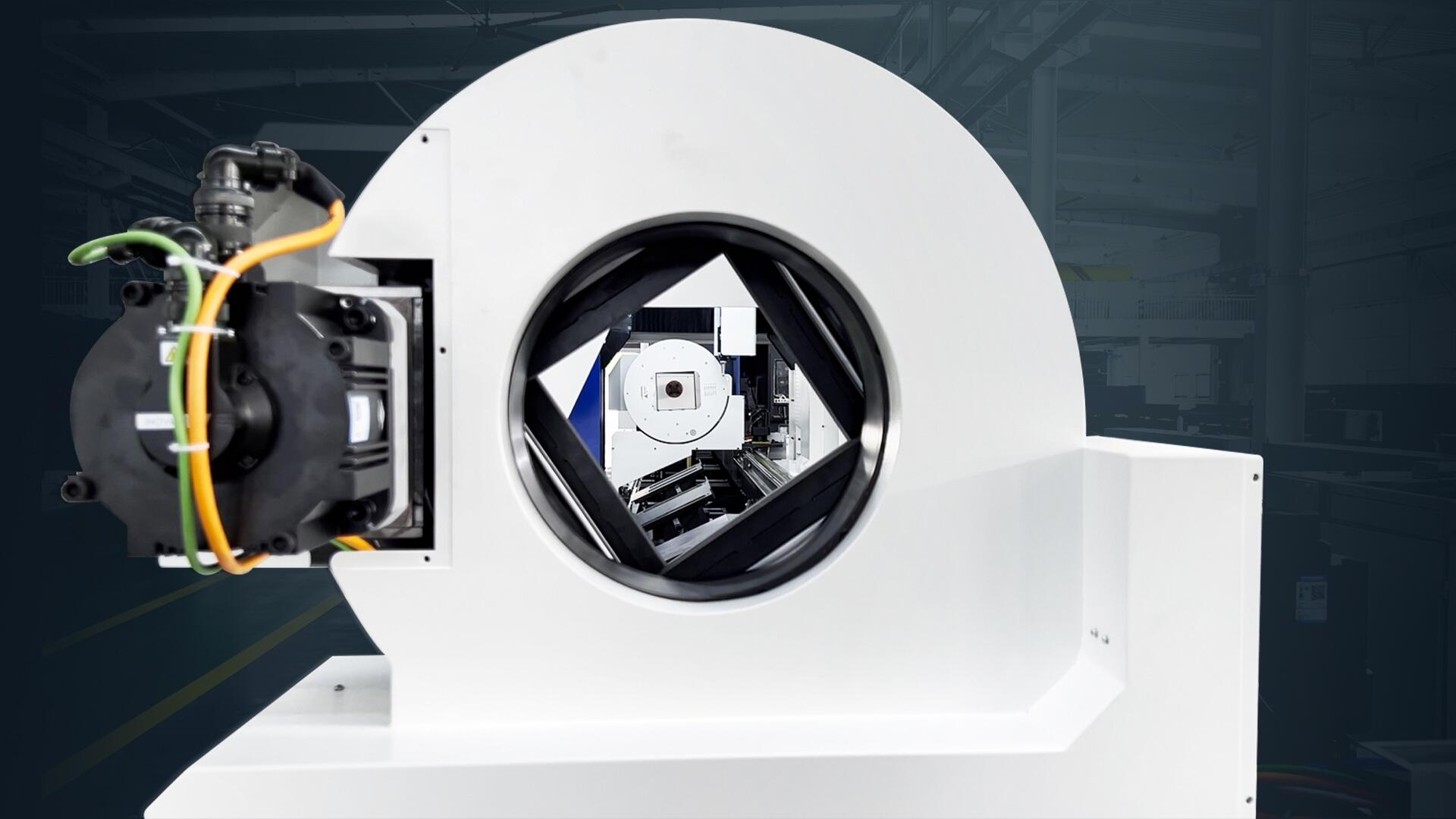

Pneumatic open clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.

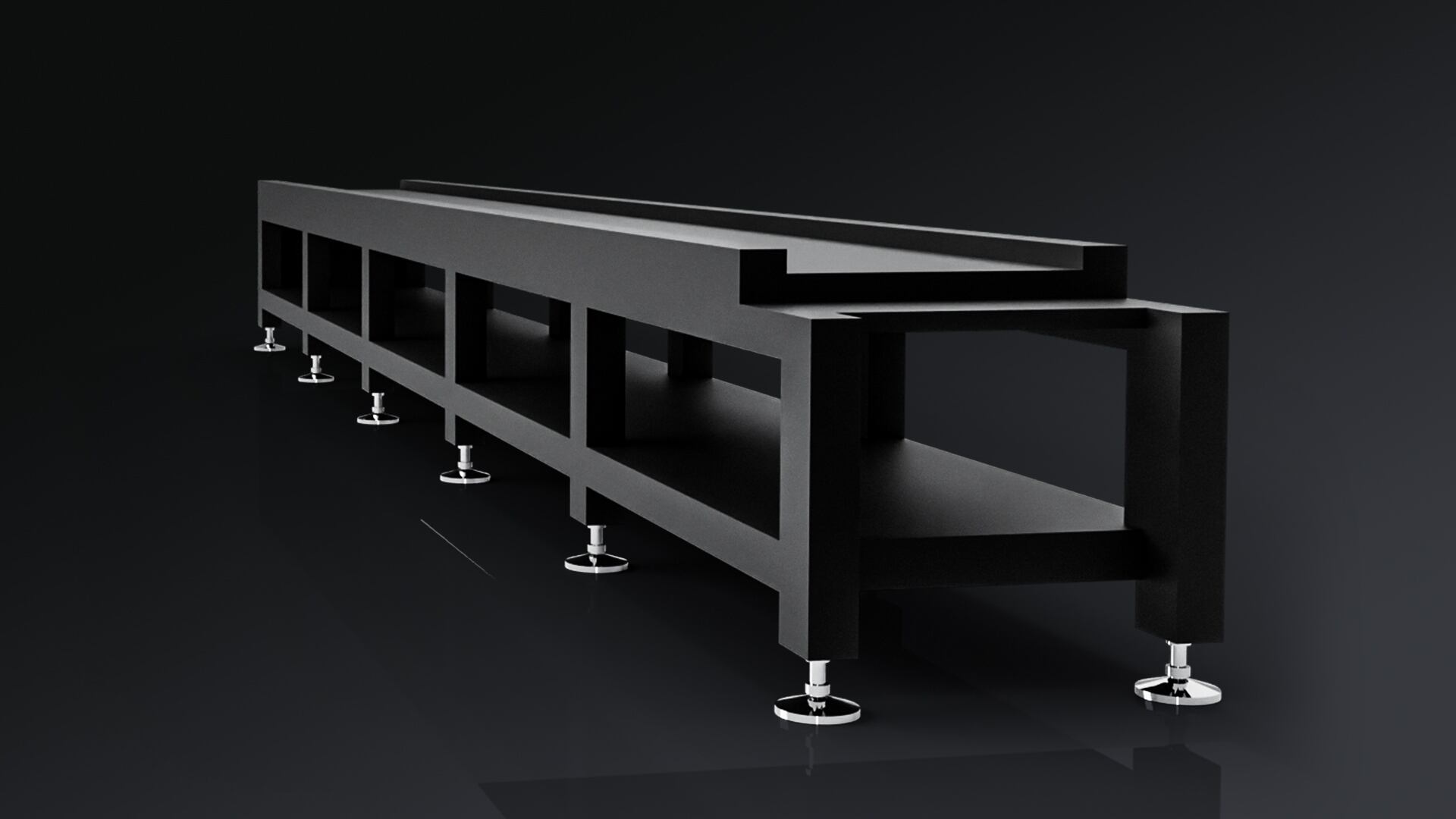

The integrated bed frame ensures the agility of the chuck and the stability during high-speed driving.

Pneumatic roller support avoids sagging and deformation of the pipe, improves cutting accuracy and extends the service life of the chuck.

Specifications

Mode	LEA-DTP6025
Machining pipe diameter	round tube Φ30mm-350mm9100mm square tube 30mm30mm-250mm*9100mm
Laser power	3KW-12KW
X/Y axis maximum positioning speed	80m/min
acceleration	0.5G
Chuck construction	0.03mm
Chuck quantity	3
Chuck rotation speed	80r/min
load	600kg

FAQ

1. What is the warranty policy for the machine and its core components?

-Both the whole machine and the laser generator come with a 2-year warranty, excluding wearing parts. The warranty period starts from the machine finished date notified by us.

2. Is lifetime maintenance service provided after purchasing the machine?

-Lifetime maintenance free of charge is provided.

3. Do you offer training related to machine operation?

-Free training courses are available at our plant.

4. How can I get after-sales technical support? What communication channels are available?

-There is a specialized after-sales service group available 24 hours a day. Free technical support can be obtained via Email, WhatsApp, WeChat and other channels.

5. Do I need additional debugging after receiving the machine, and can it be used directly?

-The machine has been tested and adjusted before delivery. You can use it directly after receiving it.

6. Do you provide on-site technical services? How are the related costs borne?

-On-site technical services are available, including machine installation, commissioning and maintenance. Customers need to bear the engineer's ticket and related charges, and the accommodation problem shall be handled by the customer.

7. Is machine installation complicated? Which main parts need to be connected? How to get guidance if there are questions?

-The machine is shipped in a full container with few disassembled parts. The main parts to be connected are the laser source, water chiller and controller. Detailed manuals and videos are provided. If you have any questions, our after-sales staff can guide you hand by hand via video call.
