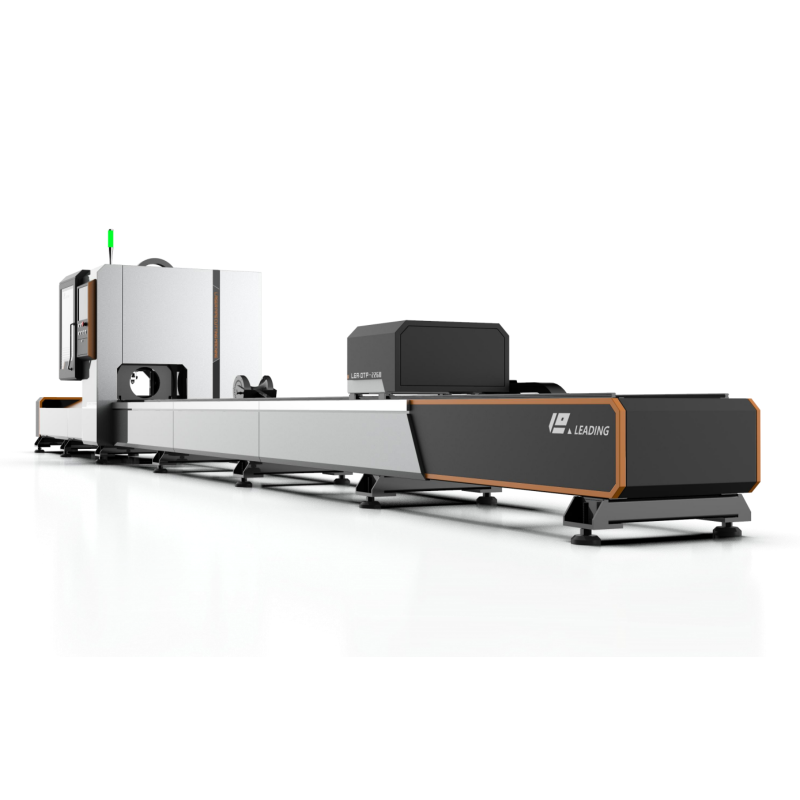

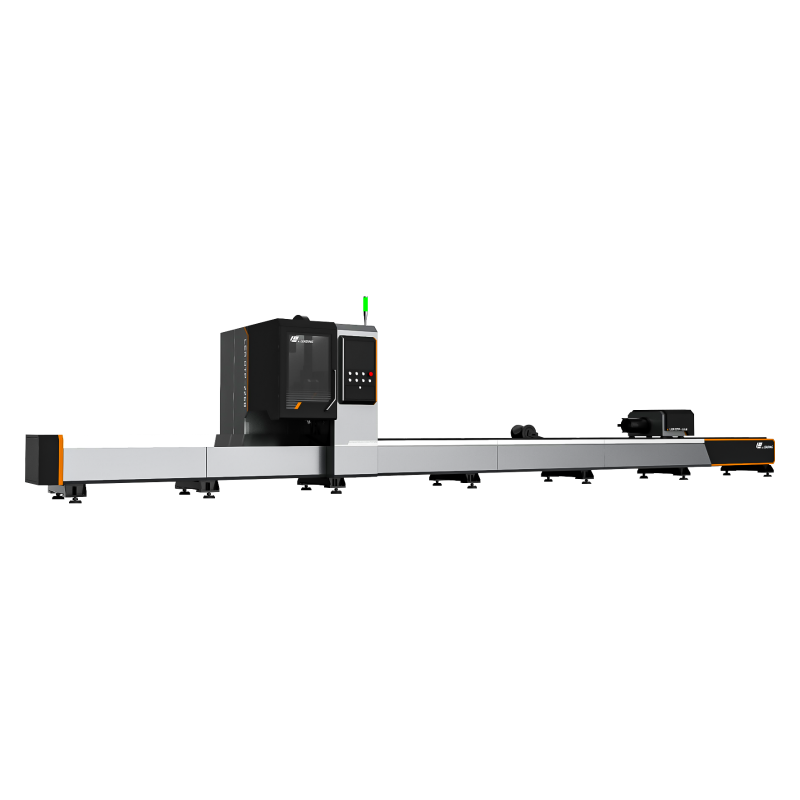

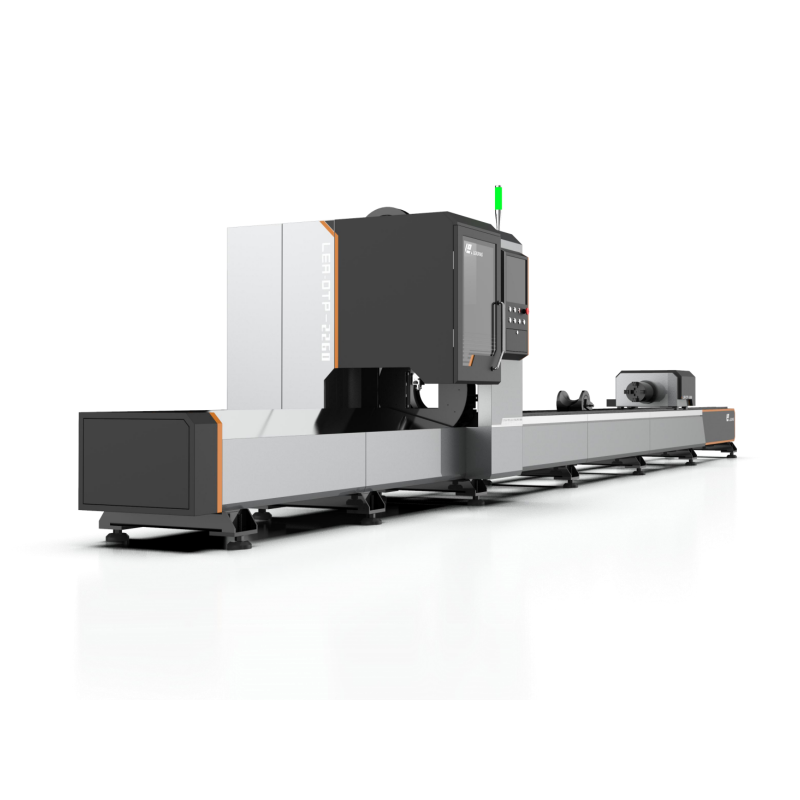

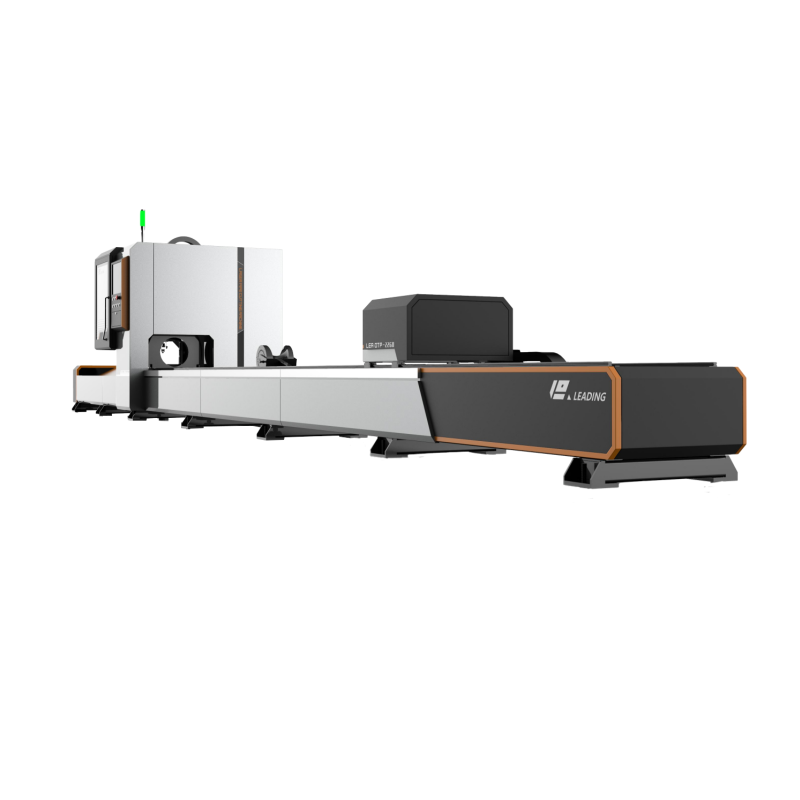

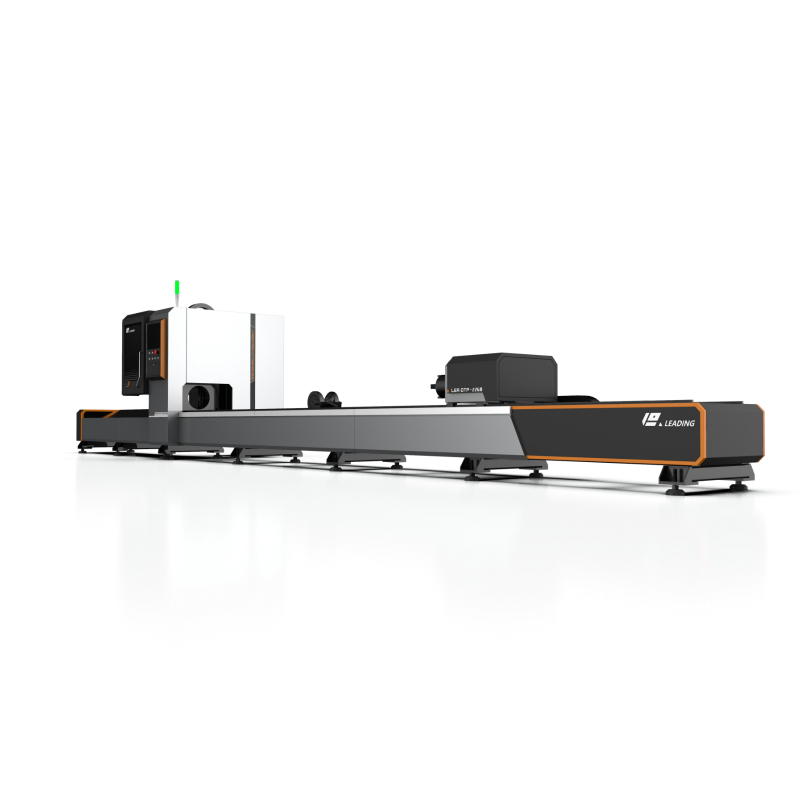

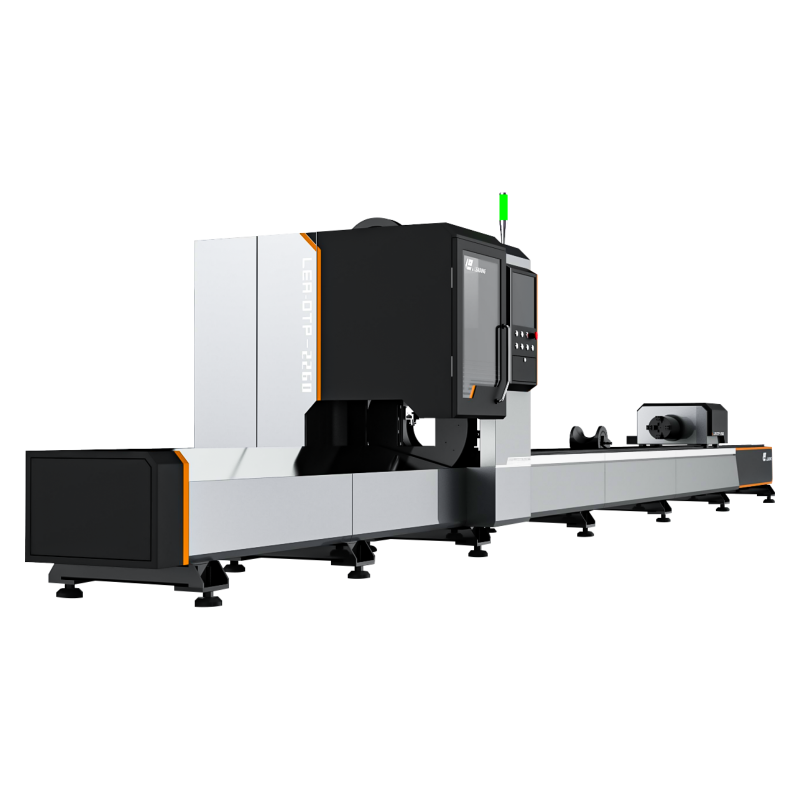

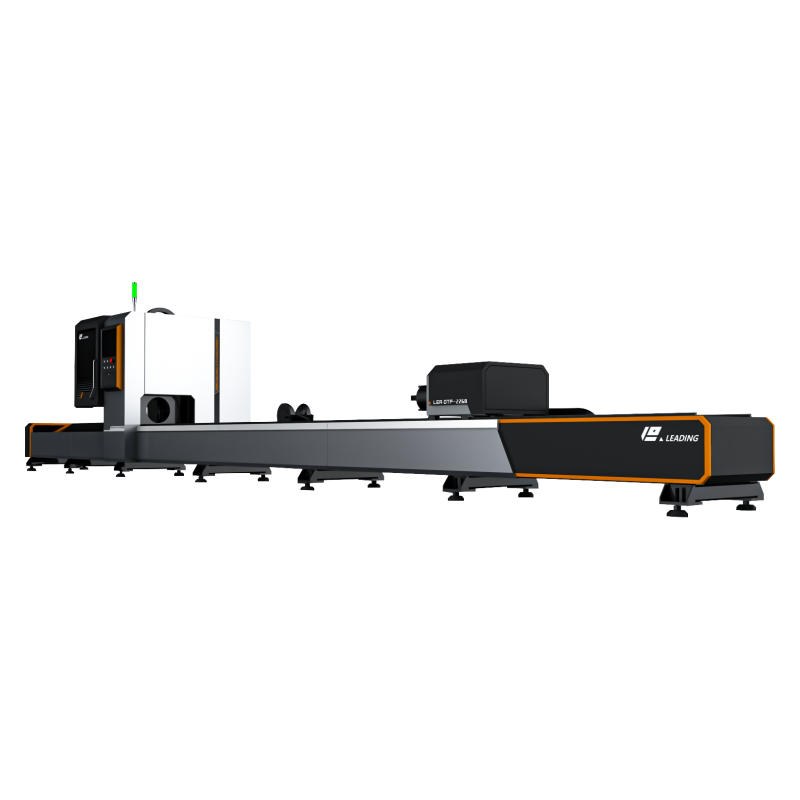

LEA-DTP High Speed Fully Automatic Tube Laser Cutting Machines

This CNC laser tube cutter is ideal for cutting standard pipes such as round, square and rectangular tubes, as well as most profiled and open profiles such as hexagonal tubes, elliptical tubes, channels, angles, H-beams, I-beams, etc. The machine is also suitable for the cutting of all kinds of tubes. I-beam etc.

Chat Now

Description
Specifications
FAQ
Sample Display

For machine prices and efficient production solutions, please contact us!

+86-13280023931

[email protected]

Description

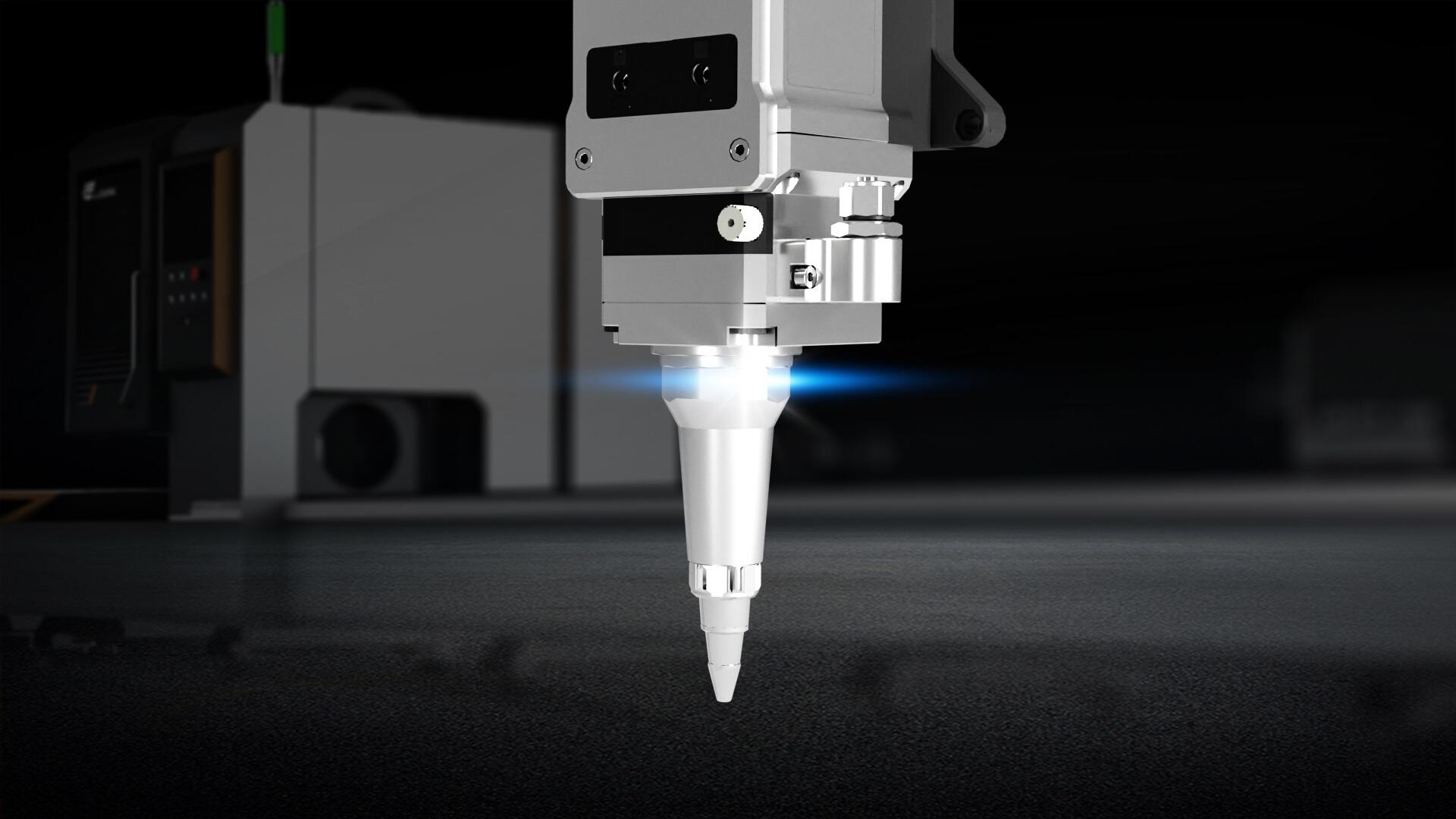

The laser head actively avoids obstacles, the dynamic response and path avoidance algorithms significantly reduce the risk of laser head collision caused by workpiece lifting.

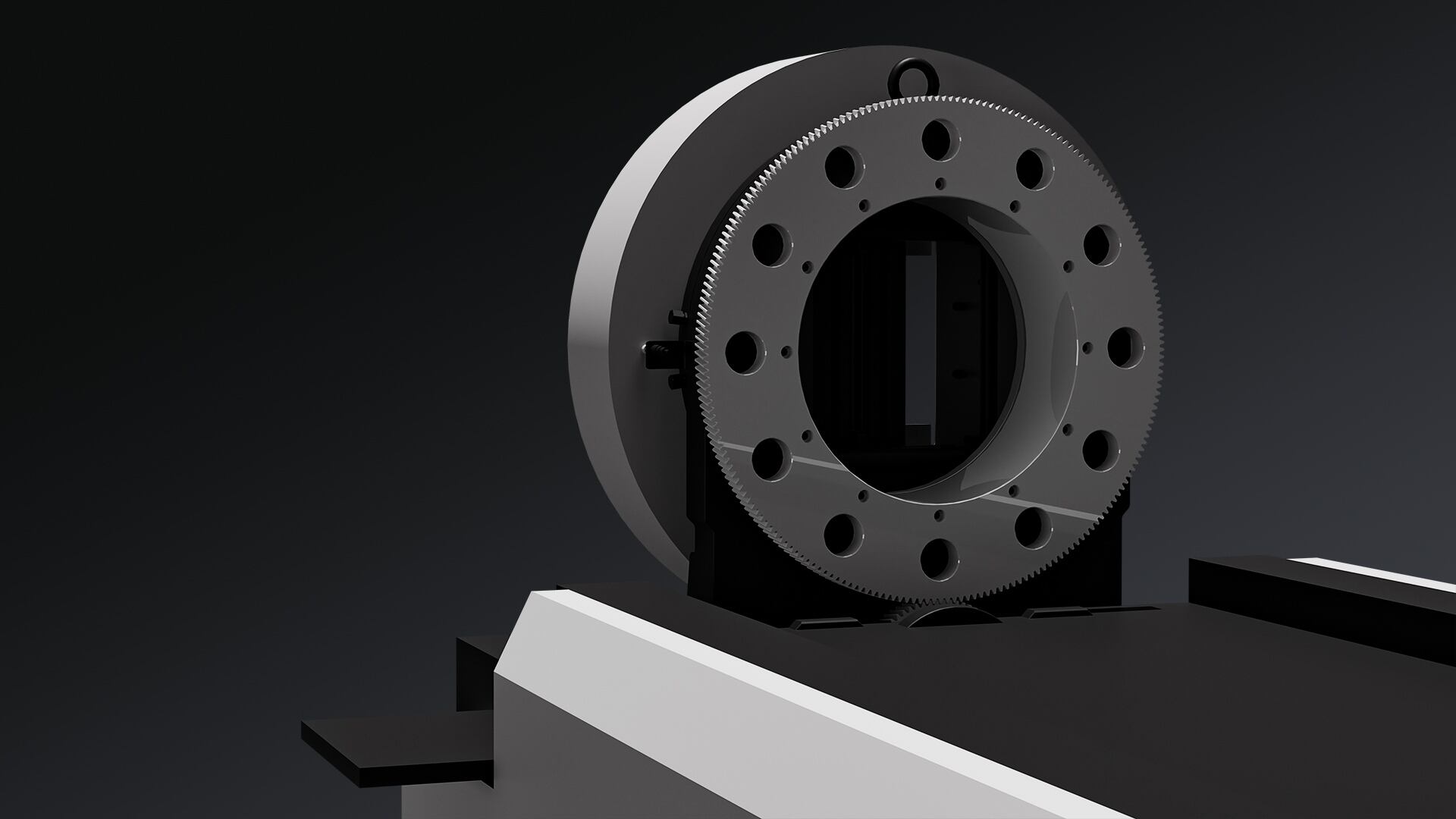

• Double Chuck Clamping round tube 10-160 mm.

• Servo Motor and reducer are driven synchronously to enssure processing accurcay

• Both front and rear chucks are pneumatically tightened.

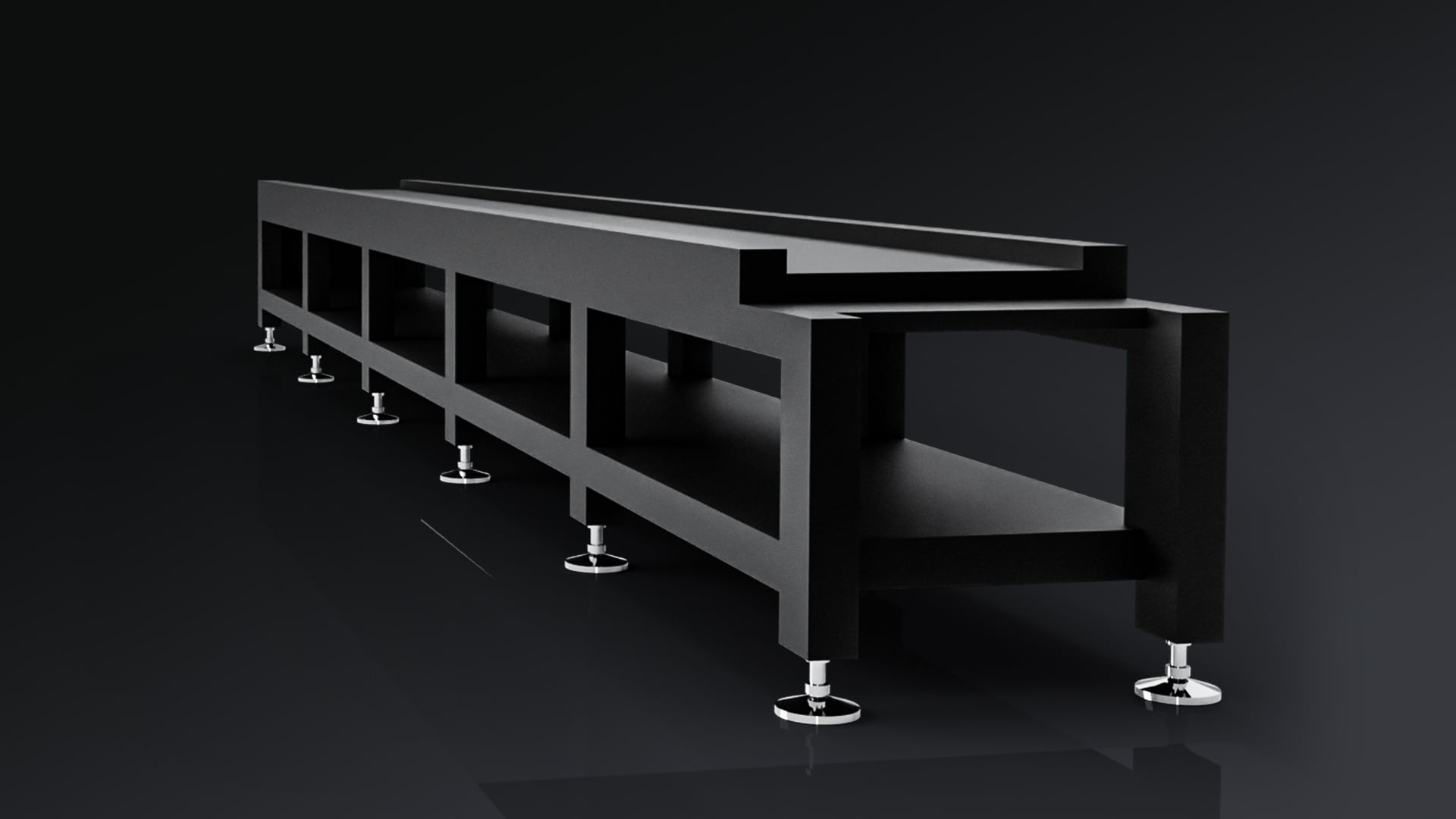

The integrated bed frame ensures the agility of the chuck and the stability during high-speed driving. Pneumatic roller support avoids sagging and deformation of the pipe, improves cutting accuracy and extends the service life of the chuck.

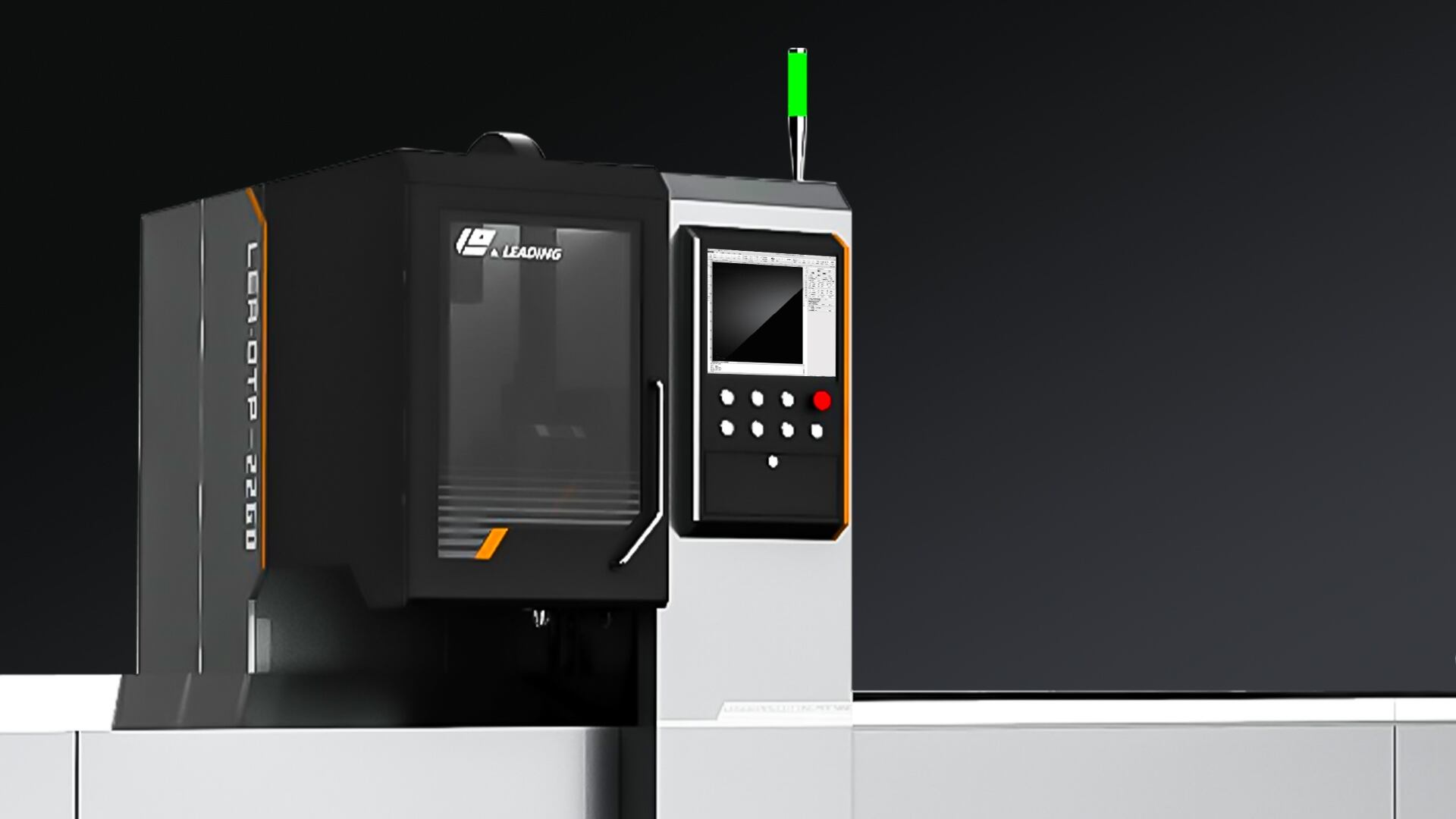

Excellent intelligent system, stable and reliable, easy to operate, rich functions, suitable for various processing occasions, to bring intelligent human-computer interaction experience to users.

Specifications

Model	LEA-DTP-2260
Machine bed	Sauare tube weldin
Gantry struture	Aluminum
Machine overall dimensions	11000 * 1200 * 2260mm
Overall weightGuiderail	3000ka
Laser head	THK / PEK / HIWIN
Laser source	Raytools / PrecitecIPG / Raycus / MAX
Servo motor and drive	YASKAWA / FUJ
Control system	Sypcut / WEIHONG
Chuck	Dysonbot
Clamping Range	20-220mm(240/320/350) mm
Max linkage speed	100m / min
Max acceleration	1.5G
Positioning accuracy	0.03mm
Pepositioning accuracy	0.02mm
laser power	3KW-6KW
Power supply	380V 50HZ / 60HZ / 60A
cutting material	lron/CS/SS/Aluminum/Copper and all kinds metal

FAQ

1. What is the warranty policy for the machine and its core components?

-Both the whole machine and the laser generator come with a 2-year warranty, excluding wearing parts. The warranty period starts from the machine finished date notified by us.

2. Is lifetime maintenance service provided after purchasing the machine?

-Lifetime maintenance free of charge is provided.

3. Do you offer training related to machine operation?

-Free training courses are available at our plant.

4. How can I get after-sales technical support? What communication channels are available?

-There is a specialized after-sales service group available 24 hours a day. Free technical support can be obtained via Email, WhatsApp, WeChat and other channels.

5. Do I need additional debugging after receiving the machine, and can it be used directly?

-The machine has been tested and adjusted before delivery. You can use it directly after receiving it.

6. Do you provide on-site technical services? How are the related costs borne?

-On-site technical services are available, including machine installation, commissioning and maintenance. Customers need to bear the engineer's ticket and related charges, and the accommodation problem shall be handled by the customer.

7. Is machine installation complicated? Which main parts need to be connected? How to get guidance if there are questions?

-The machine is shipped in a full container with few disassembled parts. The main parts to be connected are the laser source, water chiller and controller. Detailed manuals and videos are provided. If you have any questions, our after-sales staff can guide you hand by hand via video call.
