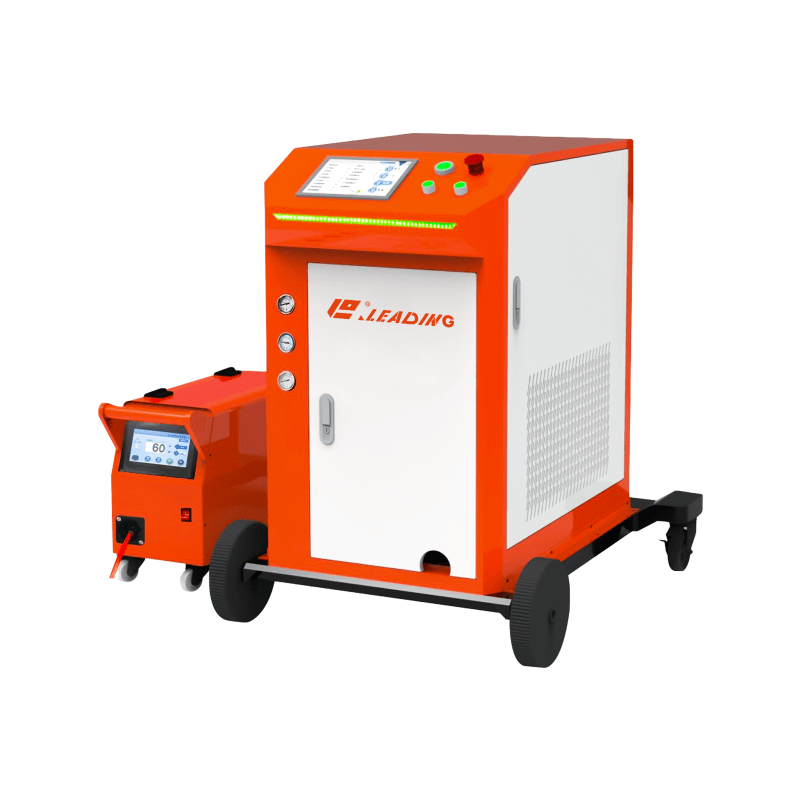

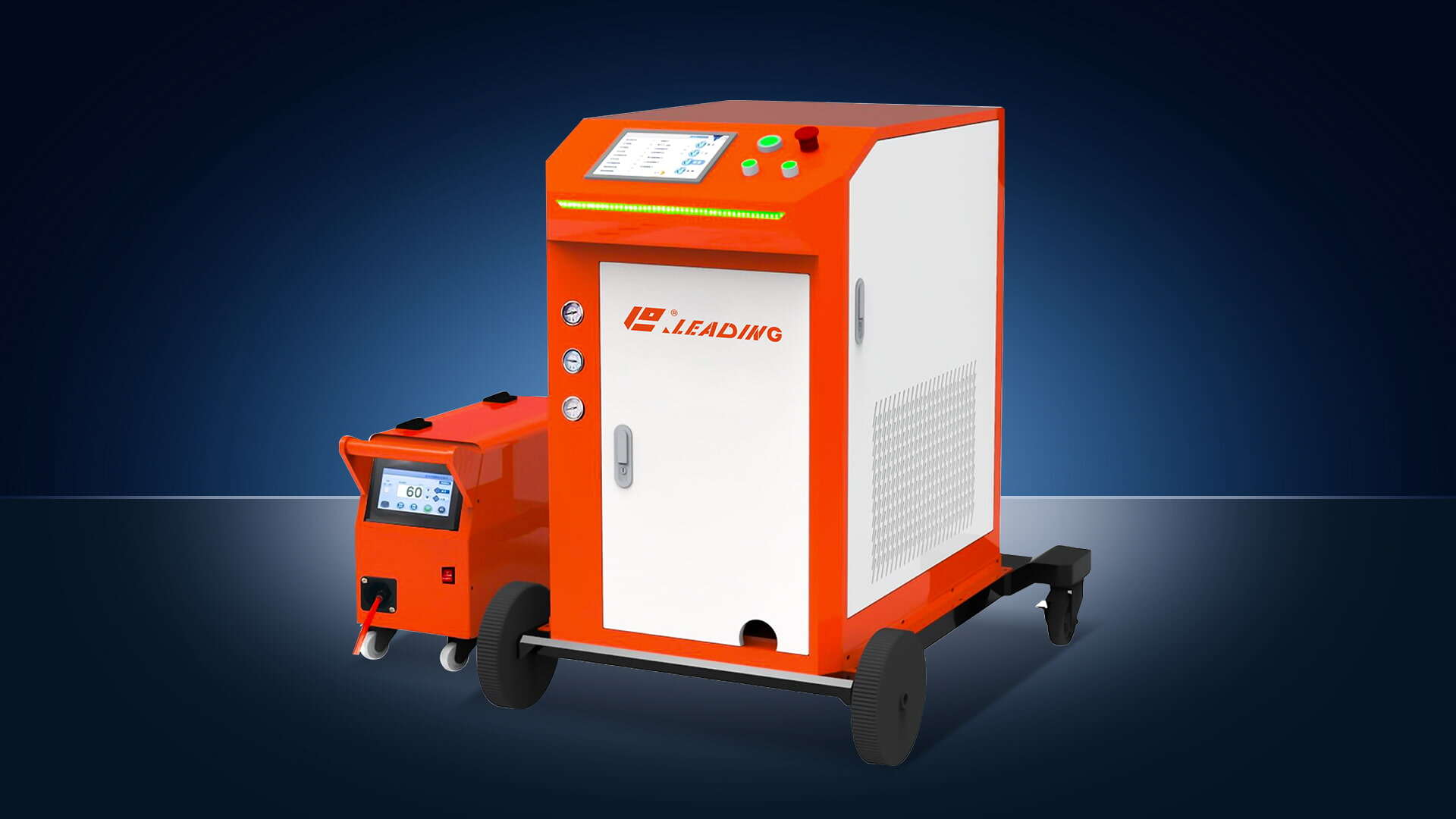

Handheld Fiber Laser Welding Machine

The handheld fiber laser welding and cutting machine is equipped with an intelligent dual-swing handheld welding head. Features an intelligent protection system, a mobile terminal app, and PC-based monitoring, which provide real-time feedback on operational status.

It has multiple functions:
welding/cutting/cleaning/weld seam cleaning.

Chat Now

Description
Specifications
FAQ

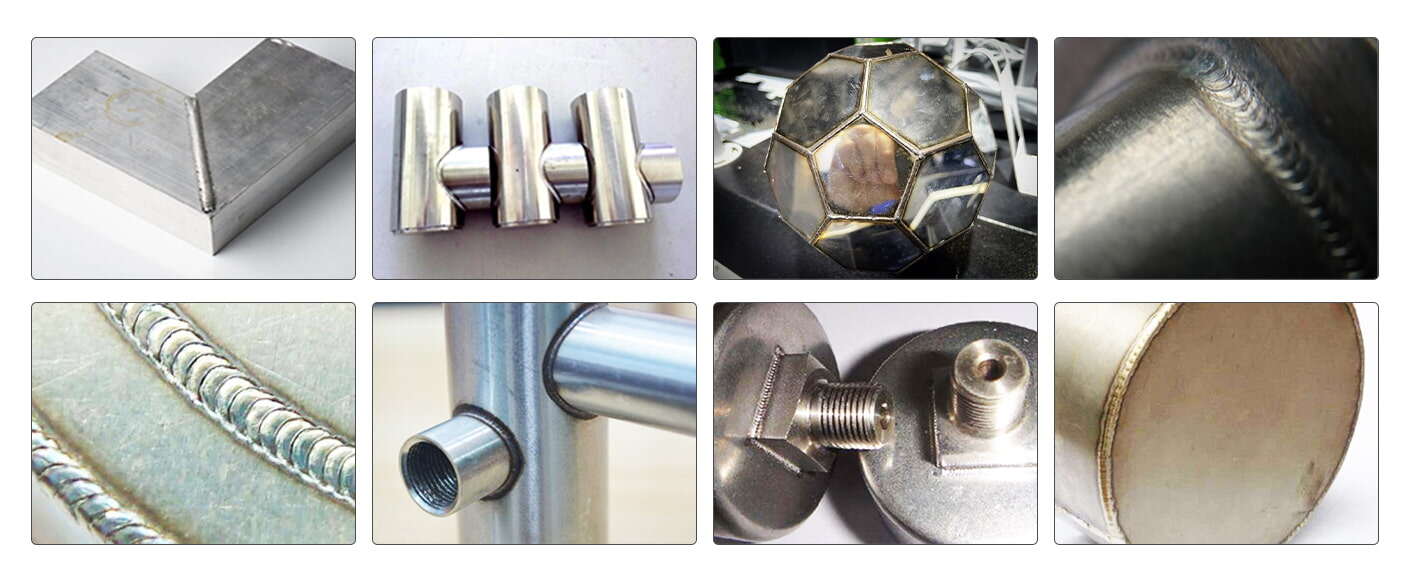

Sample Display

For machine prices and efficient production solutions, please contact us!

+86-13280023931

[email protected]

Description

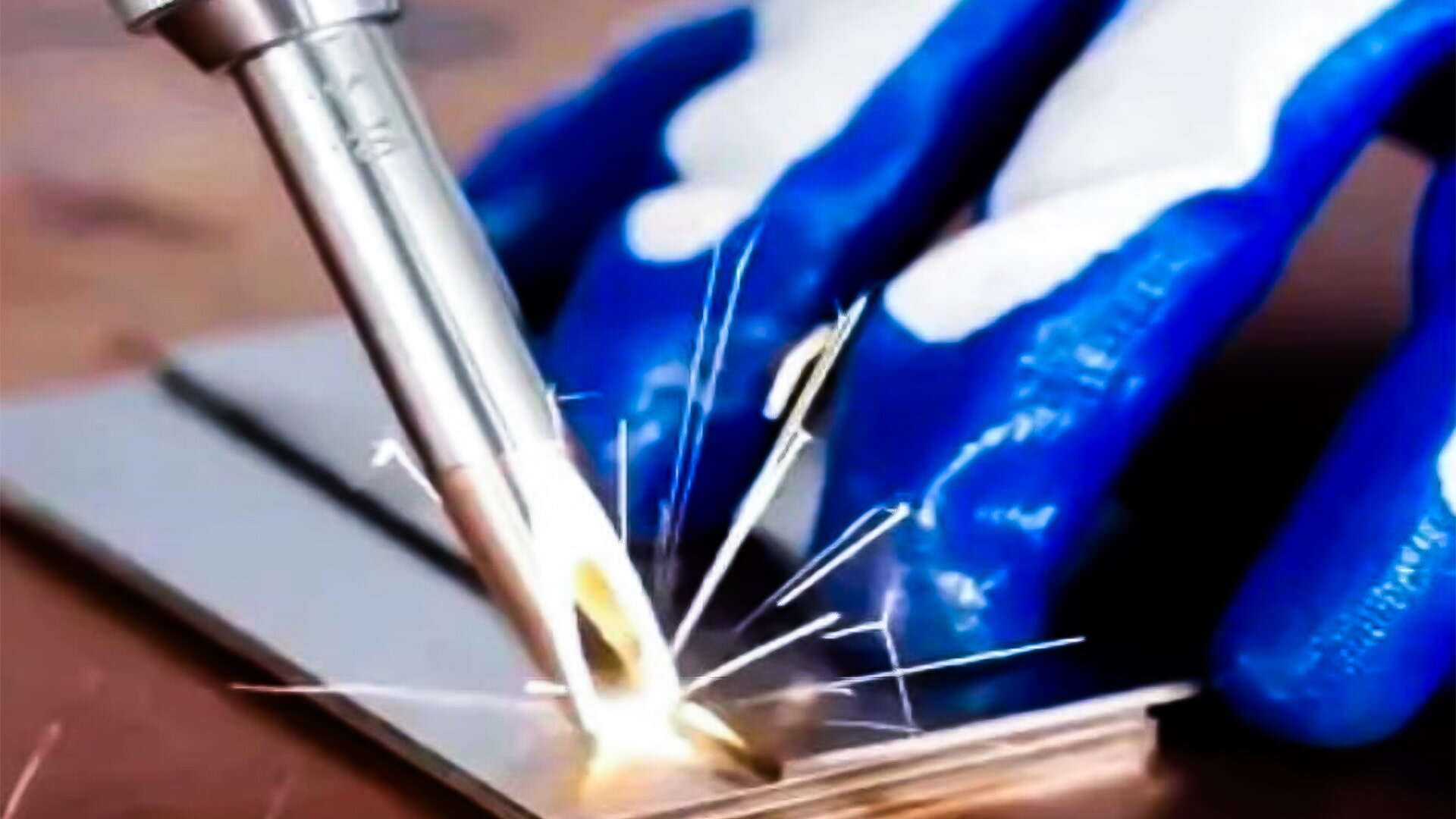

The operation is simple, the speed is fast, the weld seam is smooth and beautiful, the deformation is small, the subsequent grinding process is reduced, and beautiful products can be welded without an experienced master.

1 (3).jpg

The convenience brought by integrated design

The organic integration of the nitrogen generation system and the laser welding system makes the overall structure of the equipment more compact. It has reduced a large number of connecting pipes and external equipment, eliminating the need for complex installation and commissioning of nitrogen generators and laser welders separately, thus lowering the usage threshold and the initial investment cost.

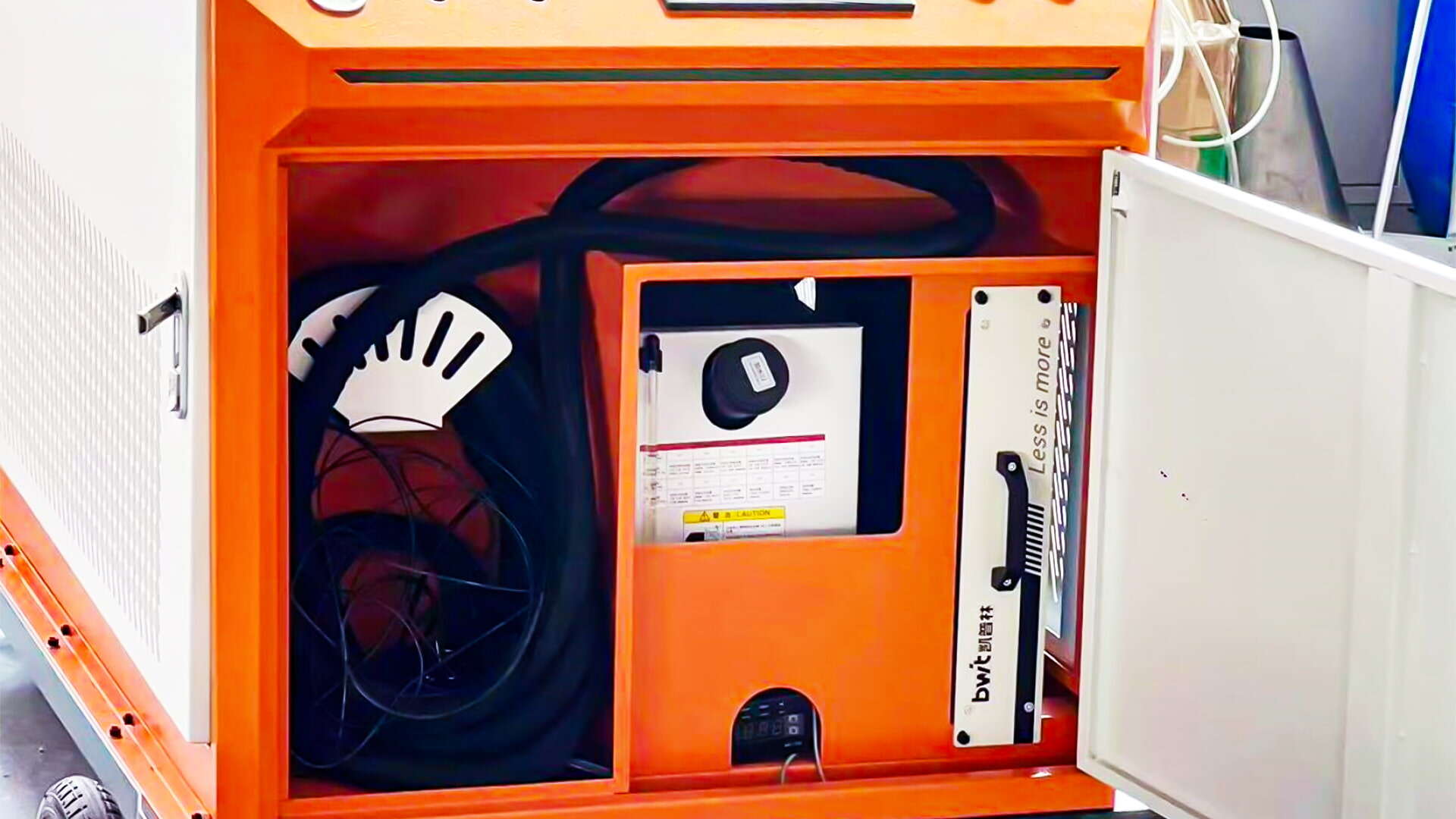

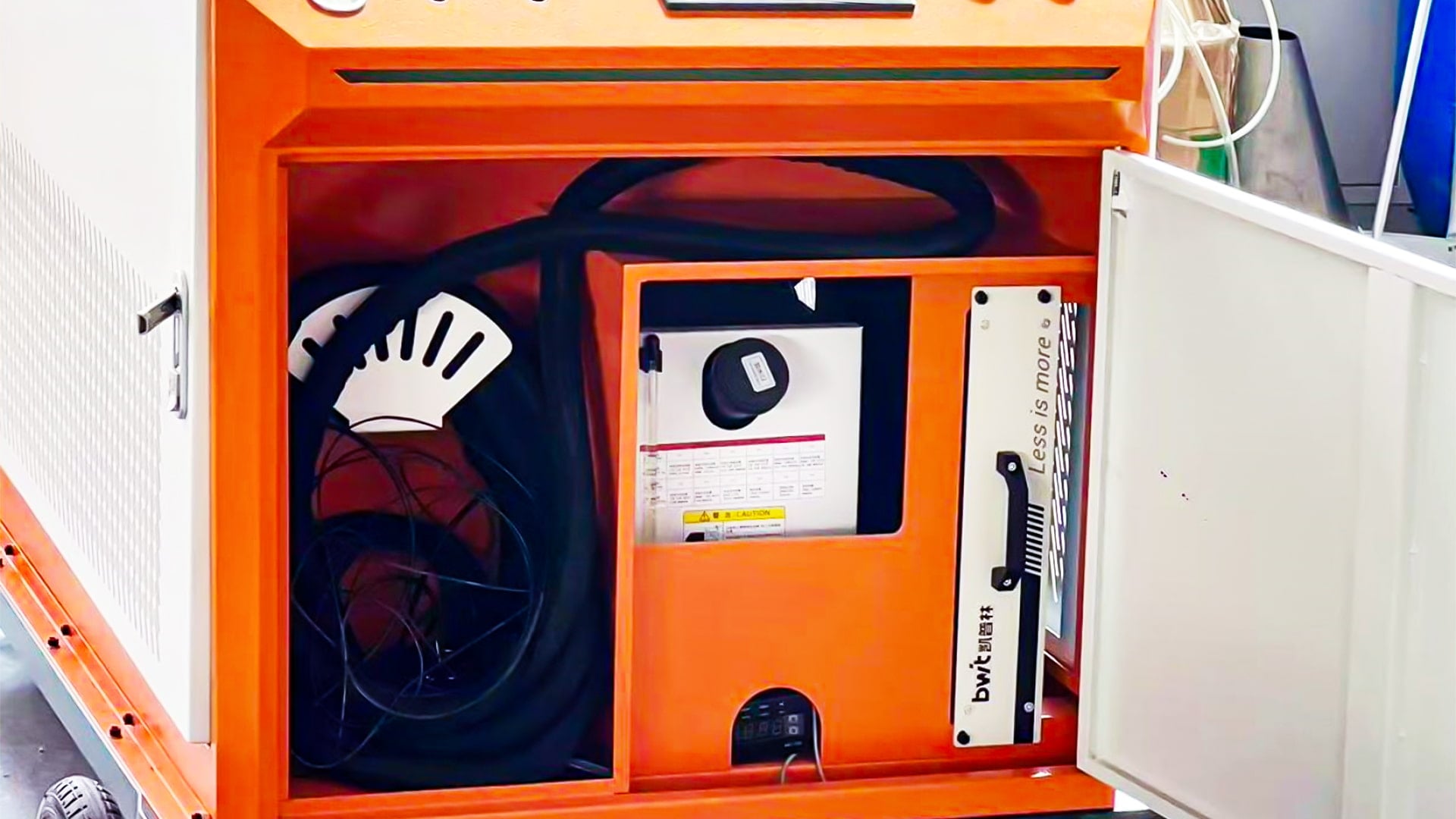

The interior adopts a modular design

The laser welding module and the nitrogen generation module work closely together. Through the optimized layout of gas transmission pipelines and electrical circuits, efficient collaborative work is achieved.

1 (1).jpg

1 (2).jpg

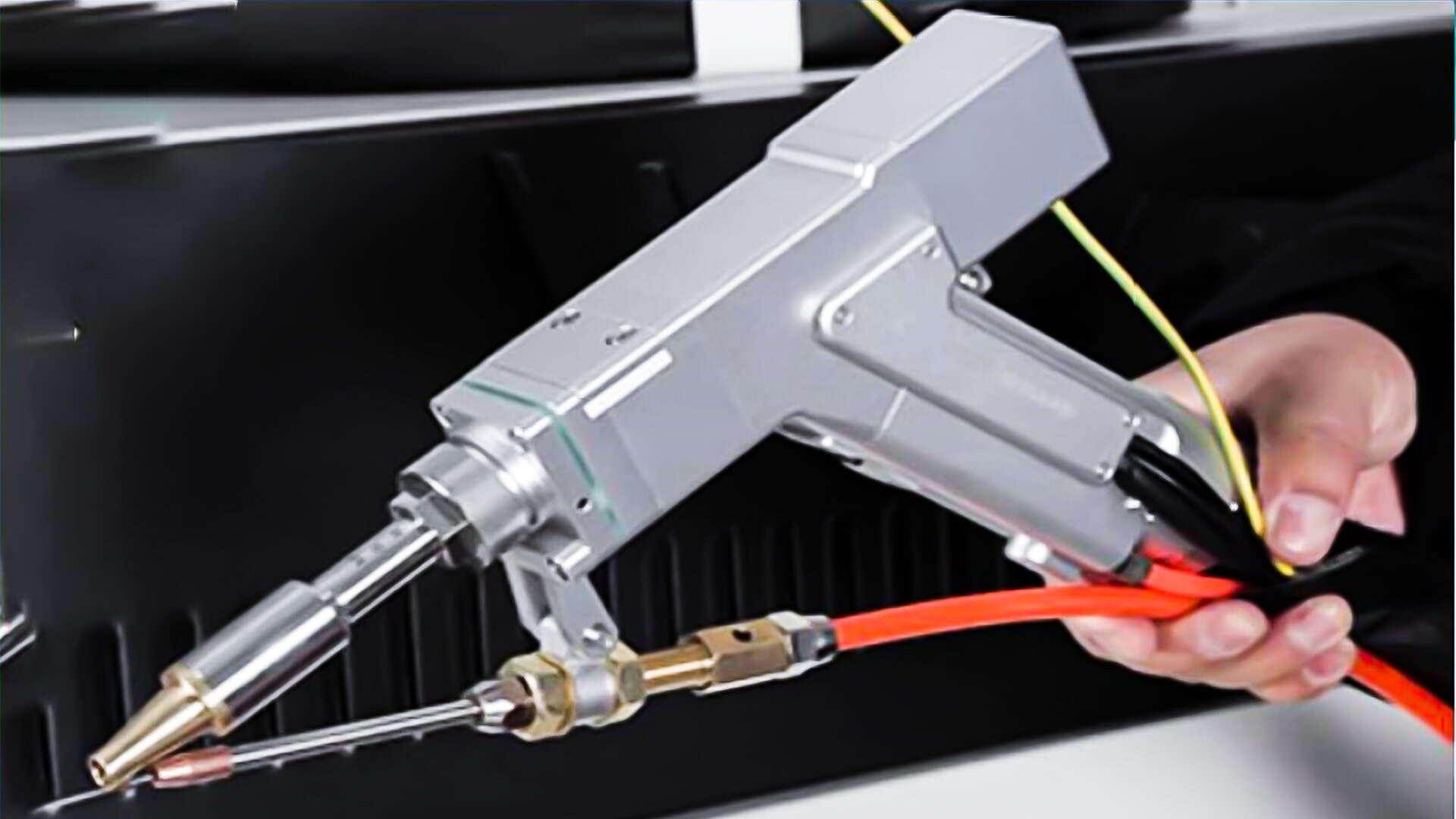

Technical features of the super-strong welding head

• It adopts a laser emitter with higher power, which can provide stronger welding ability and higher welding speed.

• It has an auto-focusing function and can automatically adjust the focal length according to the thickness and shape of the welding material, simplifying the operation process.

• The appearance and ergonomics have been optimized, and a lighter body design has been adopted, which is convenient for holding and operation.

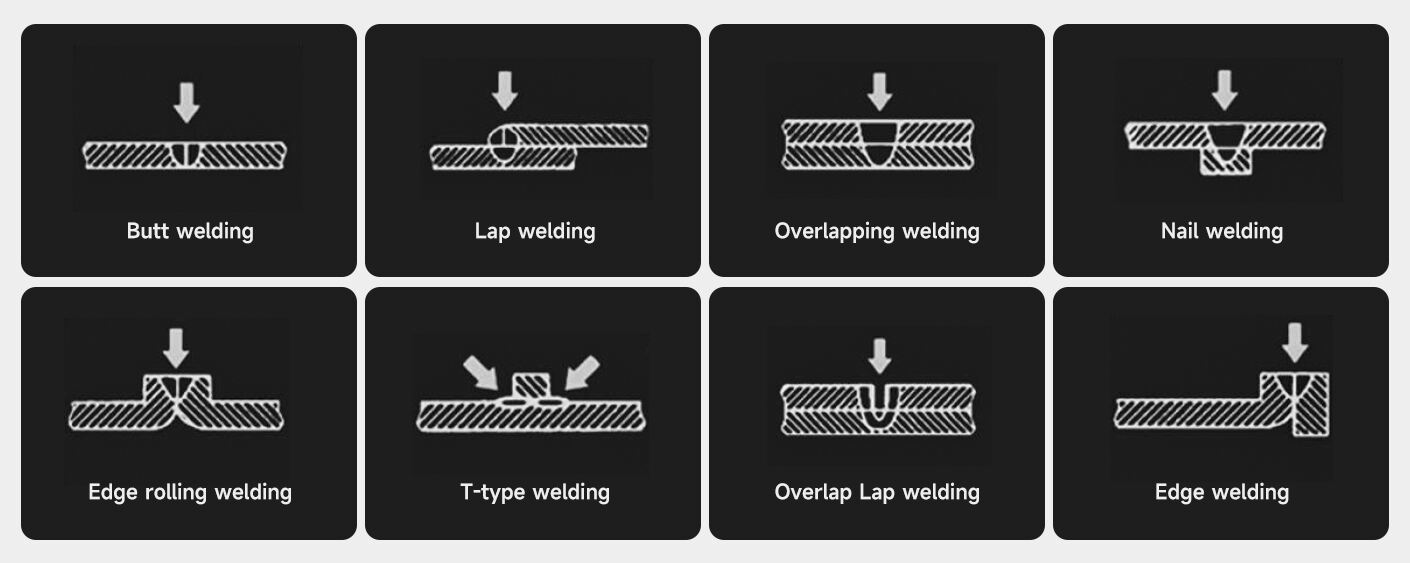

Suitable for a variety of welding processes

The welding head can realize arbitrary Angle welding of the workpiece, and is suitable for various complex welds and various devices.


Specifications

Laser power	1000W/1500W/2000W/3000W
Central wavelength	1080+10mm
Spot size	0-5mm
Welding speed	0-120mm/s
Welding thickness	0.5-10mm
Welding materials	Metal material
Working mode	Continuous/Pulse
Optical fiber length	10m
Cooling method	Water cooling

FAQ

1. What is the warranty policy for the machine and its core components?

-Both the whole machine and the laser generator come with a 2-year warranty, excluding wearing parts. The warranty period starts from the machine finished date notified by us.

2. Is lifetime maintenance service provided after purchasing the machine?

-Lifetime maintenance free of charge is provided.

3. Do you offer training related to machine operation?

-Free training courses are available at our plant.

4. How can I get after-sales technical support? What communication channels are available?

-There is a specialized after-sales service group available 24 hours a day. Free technical support can be obtained via Email, WhatsApp, WeChat and other channels.

5. Do I need additional debugging after receiving the machine, and can it be used directly?

-The machine has been tested and adjusted before delivery. You can use it directly after receiving it.

6. Do you provide on-site technical services? How are the related costs borne?

-On-site technical services are available, including machine installation, commissioning and maintenance. Customers need to bear the engineer's ticket and related charges, and the accommodation problem shall be handled by the customer.

7. Is machine installation complicated? Which main parts need to be connected? How to get guidance if there are questions?

-The machine is shipped in a full container with few disassembled parts. The main parts to be connected are the laser source, water chiller and controller. Detailed manuals and videos are provided. If you have any questions, our after-sales staff can guide you hand by hand via video call.
