• The software adopts a WINDOWS interface and is compatible with files output by various software such as CORELDRAW, autocad, and Photoshop.
• Supports formats such as PLT/DXF/BMP/JPG, and directly uses SHX/TTF font libraries;
• Supports automatic encoding, printing of serial numbers, batch numbers, dates, barcodes, QR codes, automatic number skipping, etc.
• You can freely design graphics, Chinese characters, numbers, English, etc. on the computer, which is flexible and convenient.
For machine prices and efficient production solutions, please contact us!
Inquiry|

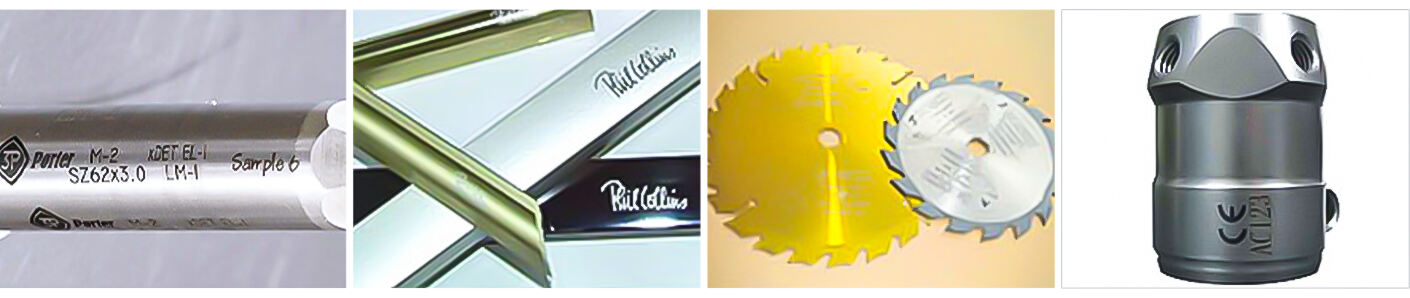

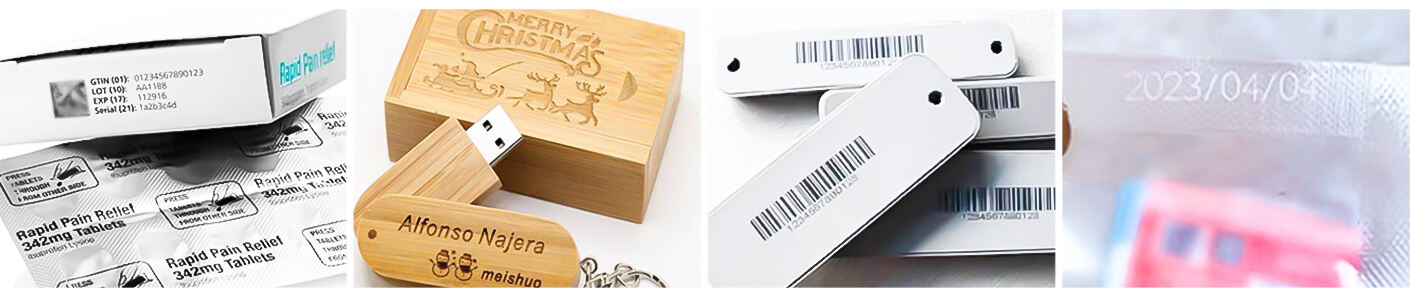

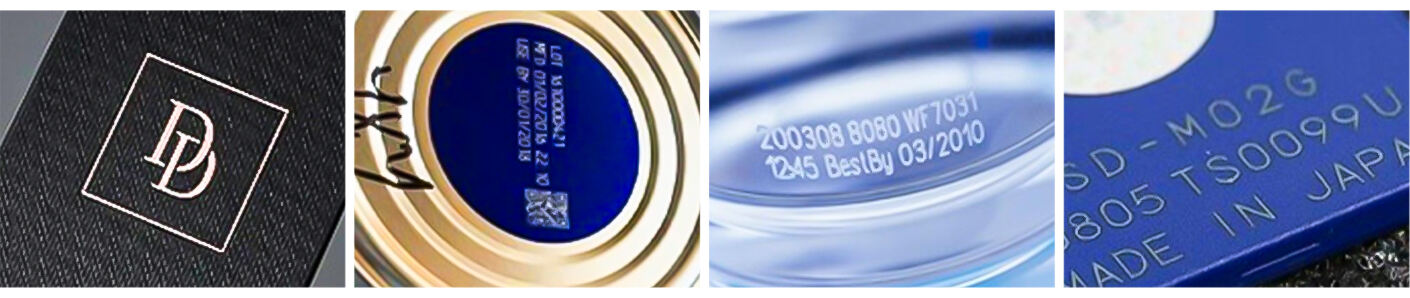

Applicable materials for fiber laser Metals: Stainless steel, carbon steel, alumina, aluminum alloy, aluminum, copper, iron, gold, silver, hard metals: alloys and other metal materials can all be engraved on the surface. Plastics: Rigid plastics, PVC materials, etc. (Different components require actual testing) Industry: Widely applied in automotive parts, electronic communication, hardware jewelry, chip manufacturing, light industrial products, pharmaceutical and food packaging, and other industries.
|
 |
|
Materials applicable to CO₂ laser Non-metallic materials: wood, bamboo, cork, paper, plastic materials such as PE/ABS/PVC, leather, rubber, acrylic, fabric, etc. (Actual testing is required due to different compositions) Industry: Gift box packaging, yoga MATS, handicrafts, furniture, boards, wood, leather processing, stationery.
|
 |
|
Materials applicable to UV laser Glass: Surface and interior engraving of glass and crystal products. Widely applied to the surface engraving of: metal, plastic, wood, leather, acrylic, nano, fabric, ceramic purple clay, and coated film. (Actual testing is required due to different components.)
|
 |
|

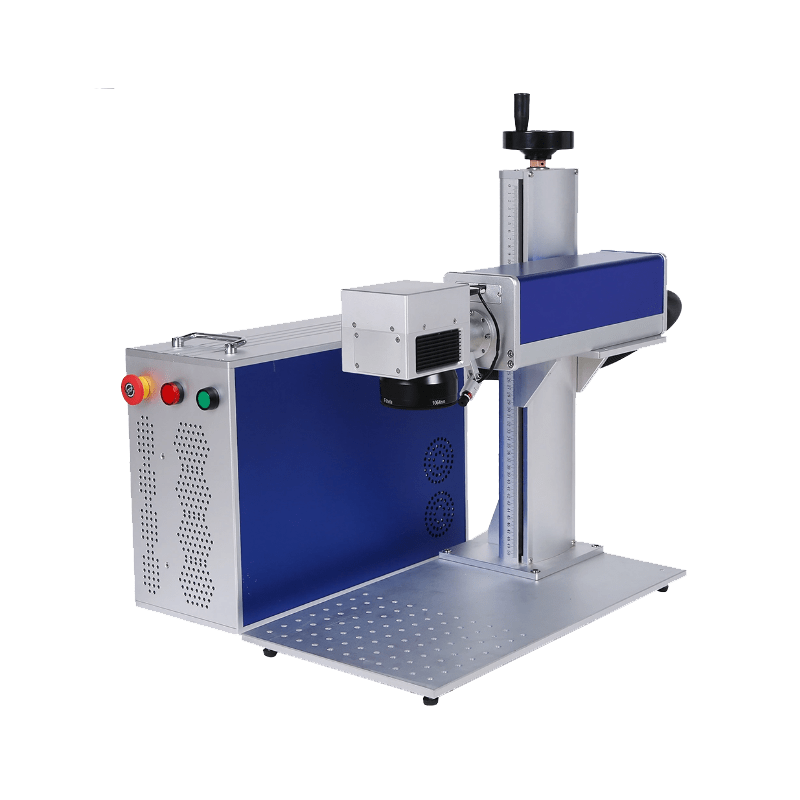

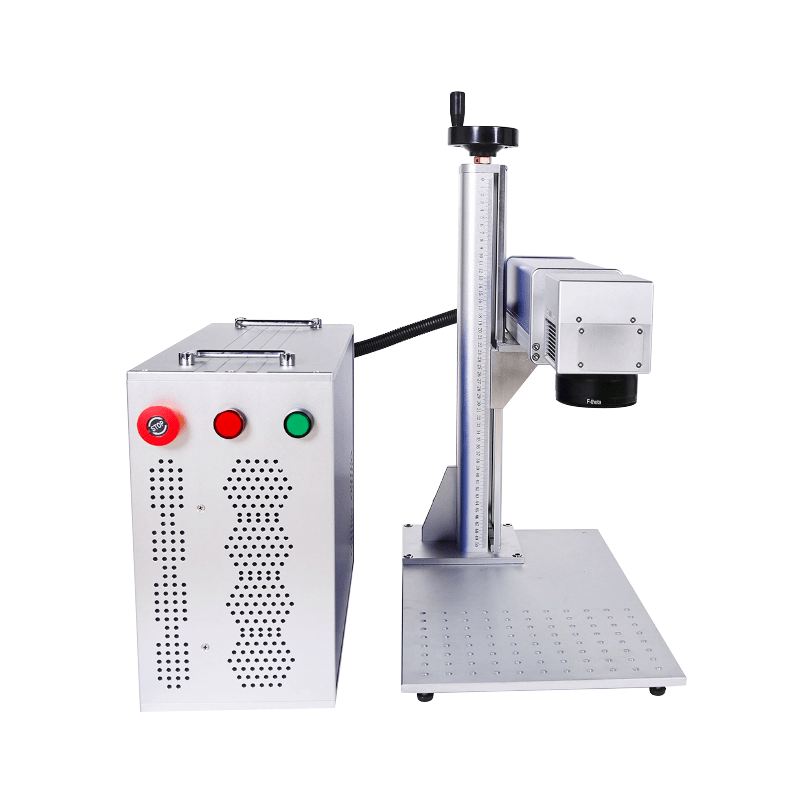

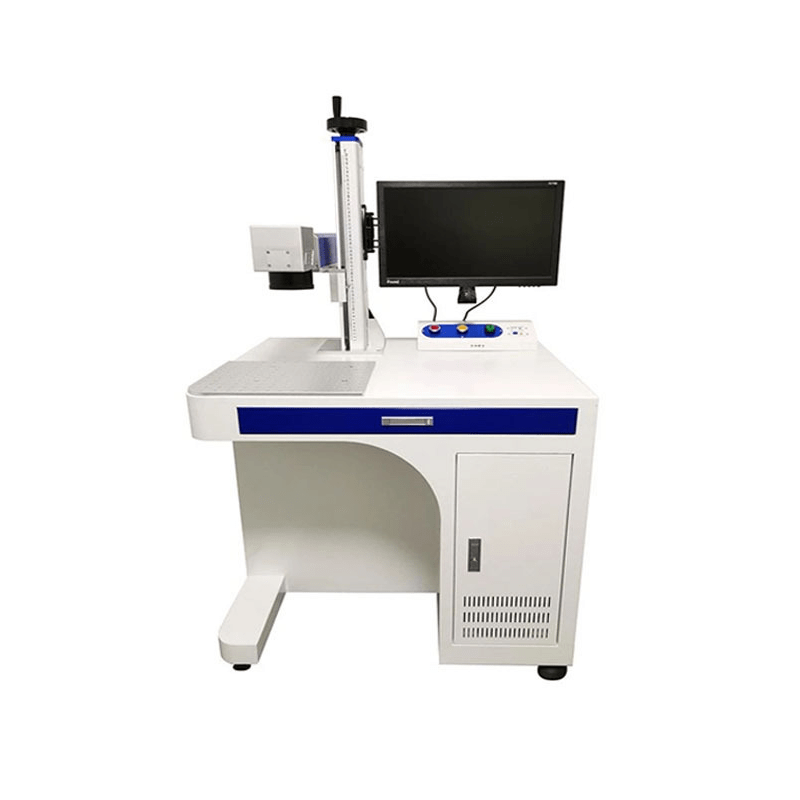

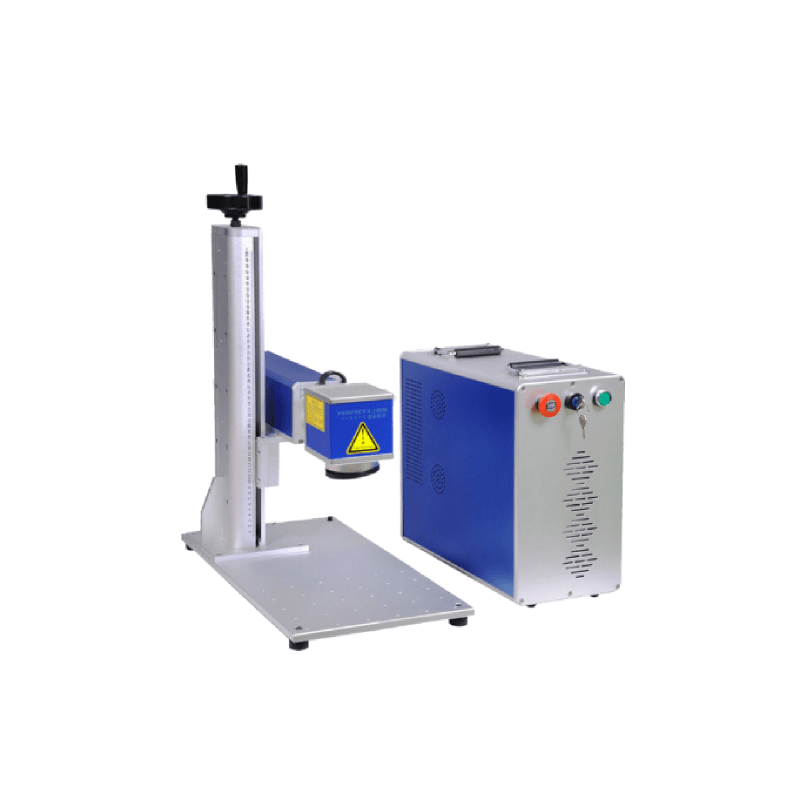

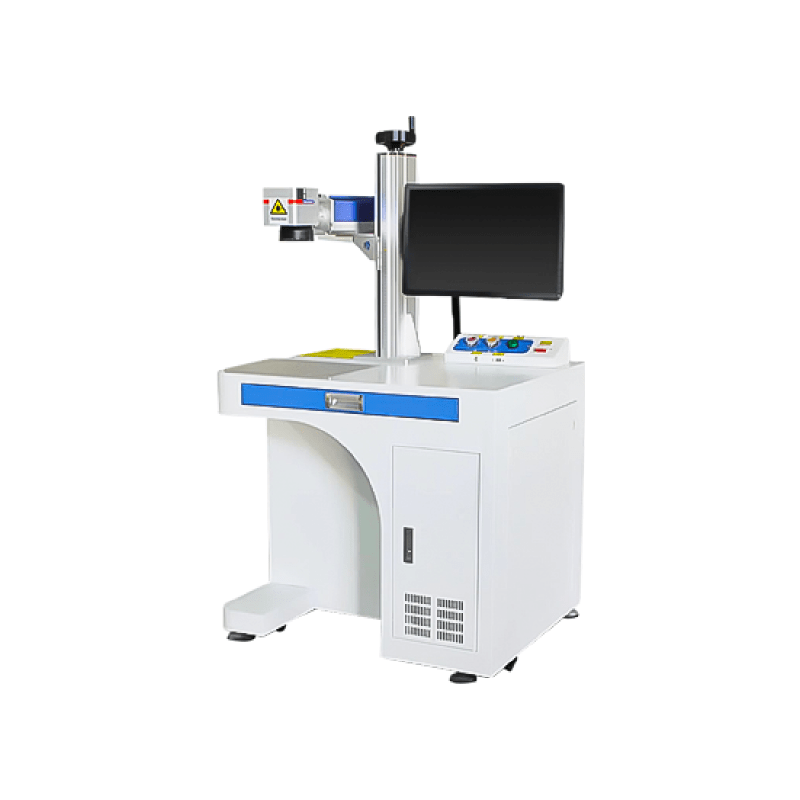

Machine name |

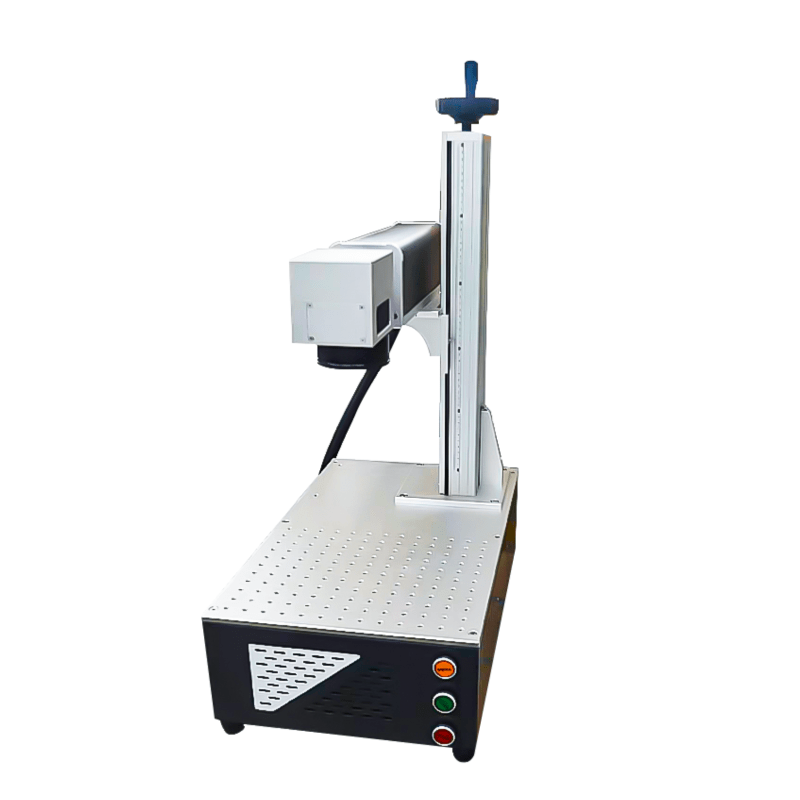

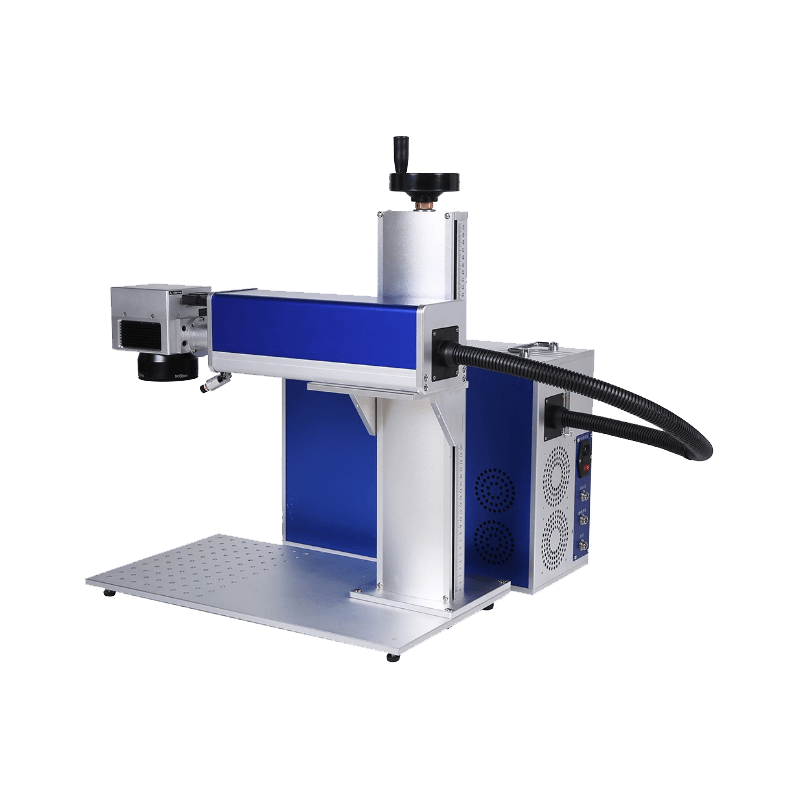

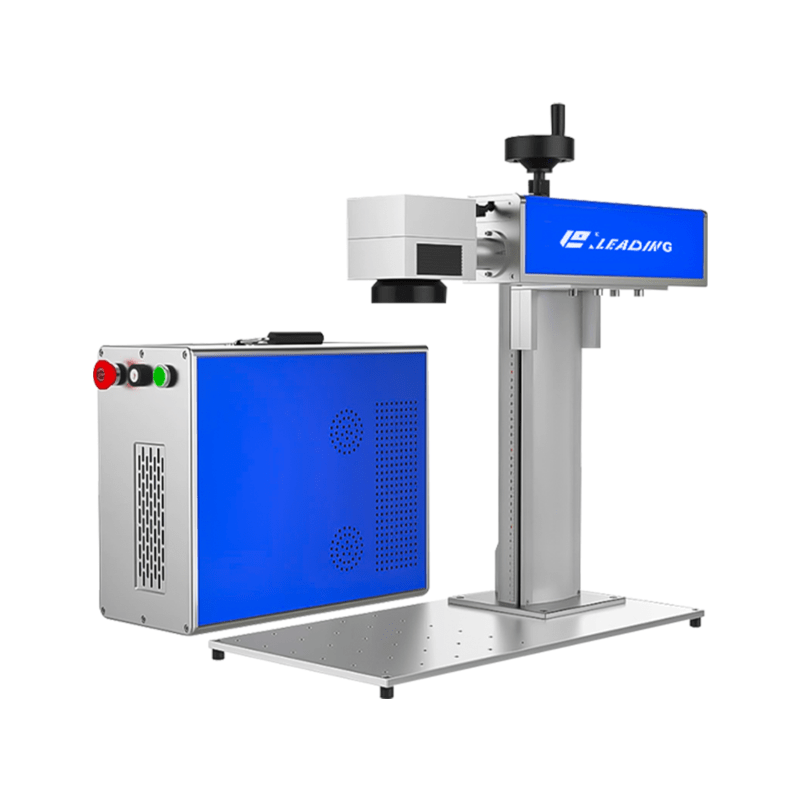

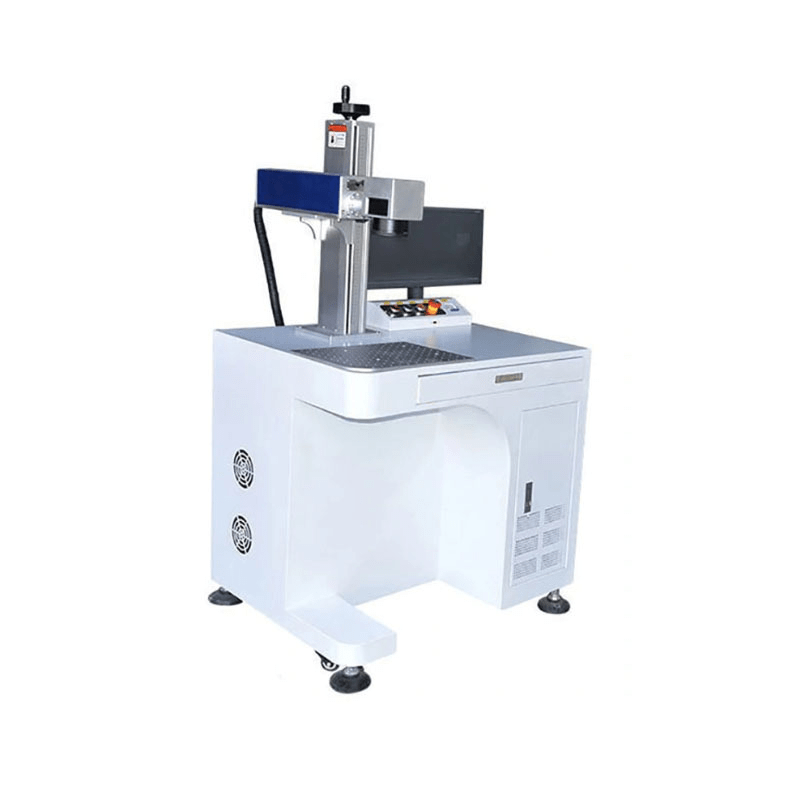

Laser Marking Machine |
|
Laser source |
JPT (RAYCUS or MAX or IPG) |
|
Laser wavelength |
1064nm |
|
Marking depth |
0~2.0mm (Depends on metal material and Marking time) |
|
Marking speed |
8000mm/s |
|
Marking minimum character |
0.1x0.1mm |
|
Repeatability accuracy |
±0.02 mm |
|
Marking content |
text, logo,pattern, date, bar code,pictures etc |
|
Control software |
EZCAD 2 lite(support Windows computer) |
|
Software Format Supported |
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DXF, DST, etc. |
|
Machine weight |
40~45KG |
|
Laser Source Type |
|||
|
Mode |
Fiber Laser |
CO2 Laser |
UV Laser |
|
Laser Power |
20w, 30w, 50w, 60w, 70w, 80w,100w |
30w, 40w, 60w,80w, 100w |
3w, 5w, 7w, 10w, 12w, 15w |
|
Laser Source |
Raycus/Max/JPT |
BOST/DAVI/SUNLITE |
Gainlaser/Raycus/Inggu |
|
Cooling Mode |
Air Cooling |
Air Cooling or Water Cooling |
Water Cooling |
|
Application |
Mainly used for metal surface and hard plastic surface marking |
Mainly used for nonmetallic surface marking: wood,paper, plastic,leather, acrylic, rubber, etc |
Main used for all kinds of glass, Charger shell of Mobile phone, earphone, TFT, LCD, plasma screens, textiles, thin ceramic Silicon, IC Crystal, Sapphire, polymers, drug, cosmetic, polymer materials such as wire, bottles(boxes)surface marking, and micro-holes |
