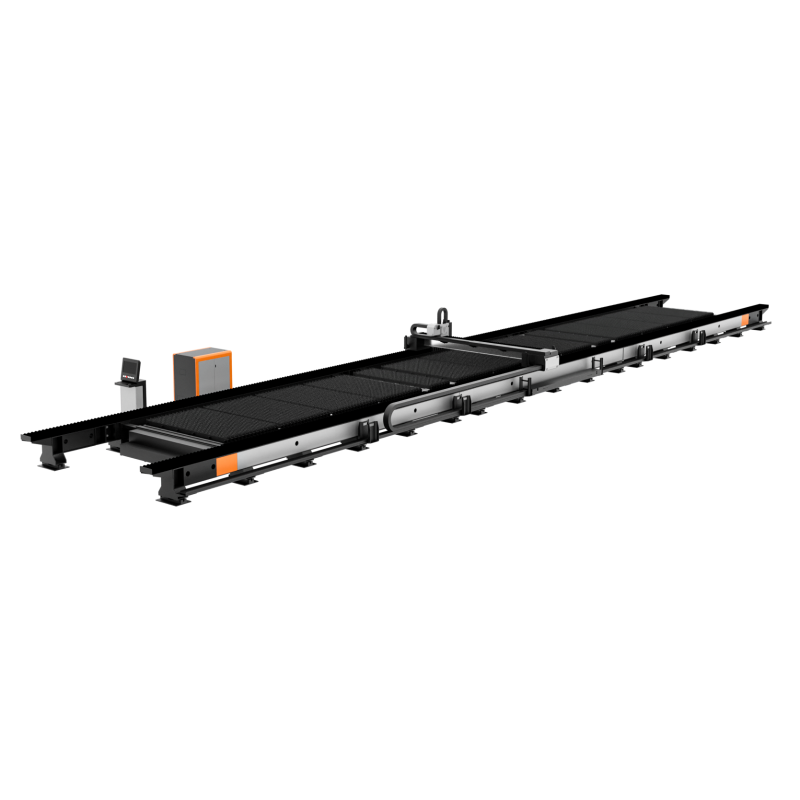

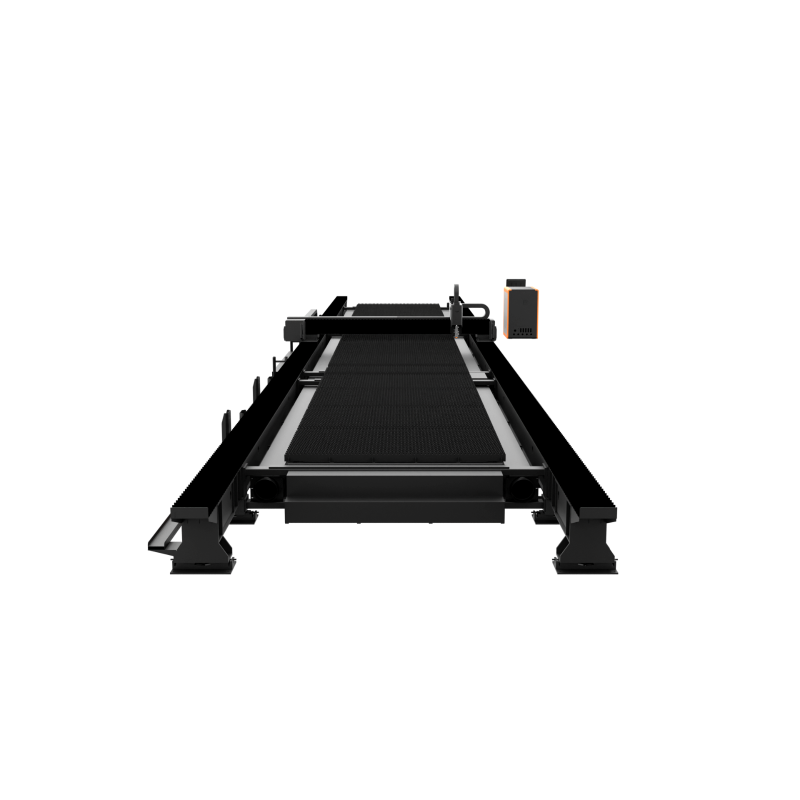

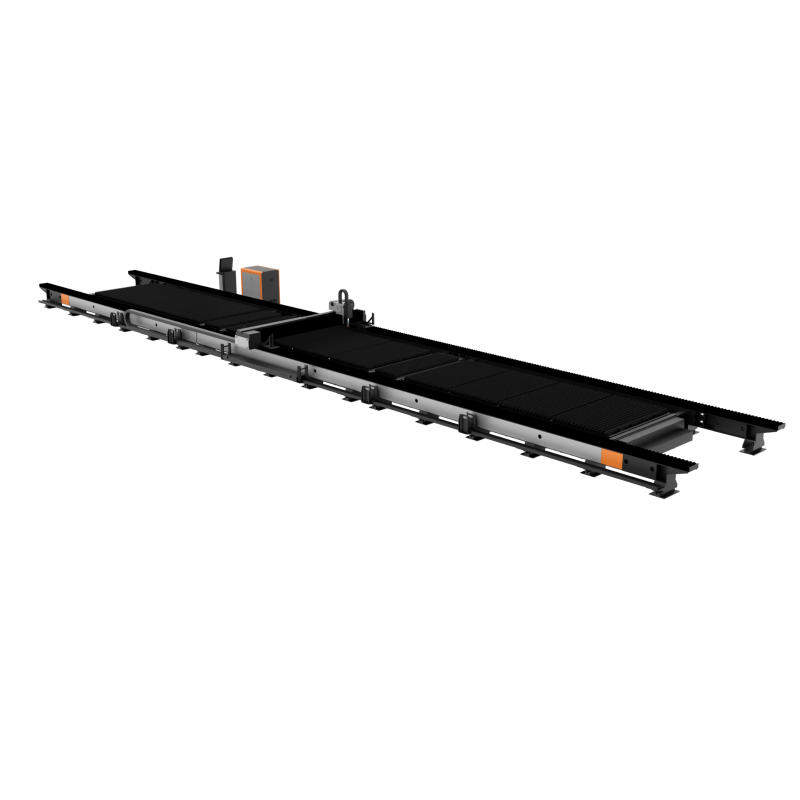

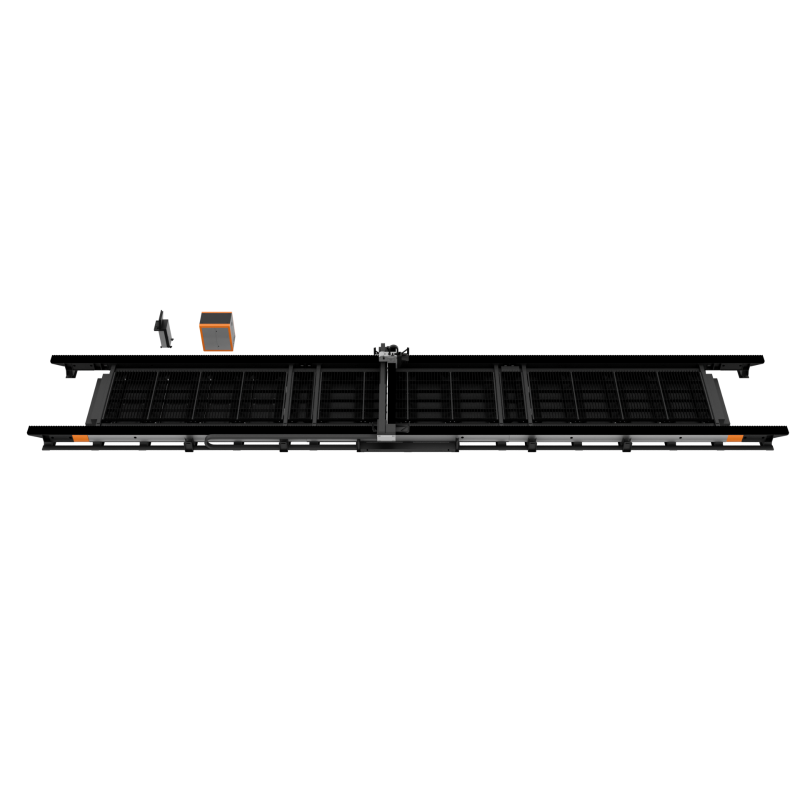

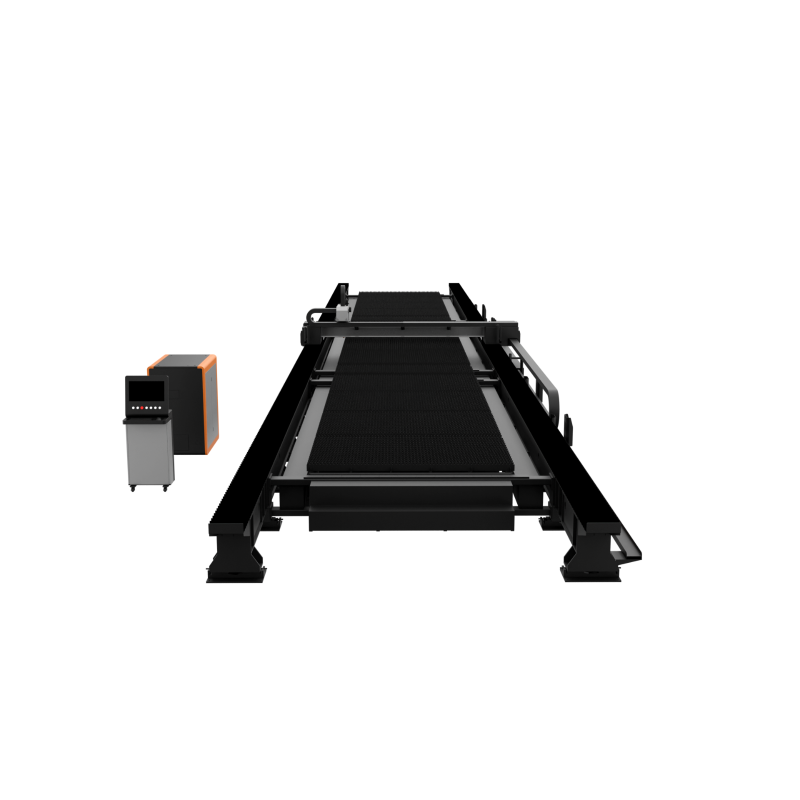

Ground-Track Gantry Laser Cutting Machine

Ground-Track Gantry Laser Cutting Machine

The machine adopts the dragon door mother surround super anti-pressure design, the original thermal cutting anti-high temperature process patent, designed for high power, thick plate, heavy industry production, perfect to avoid the pressure and heat deformation, users upgrade higher power without replacing the machine tool, save half of the new cost, provide ten years of insurance for the equipment machine tool, to achieve the development of equipment preservation function for cutting equipment, It has epoch-making significance.

Chat Now

Description
Specifications
FAQ

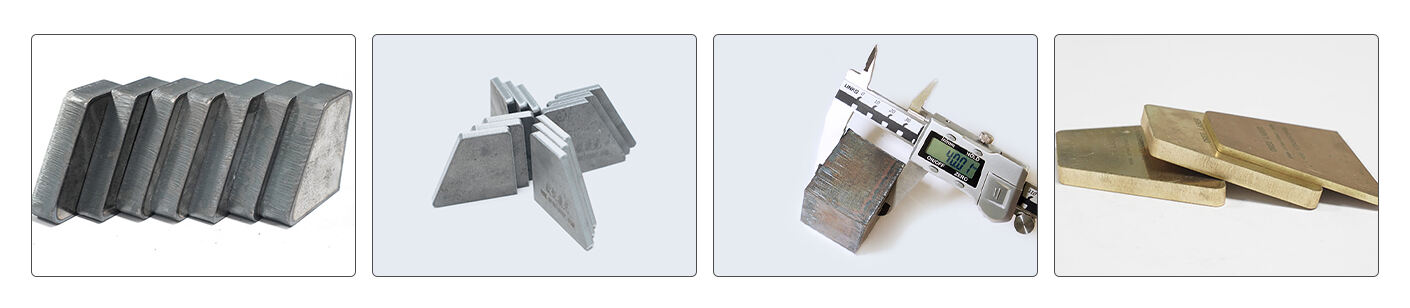

Sample Display

For machine prices and efficient production solutions, please contact us!

+86-13280023931

[email protected]

Description

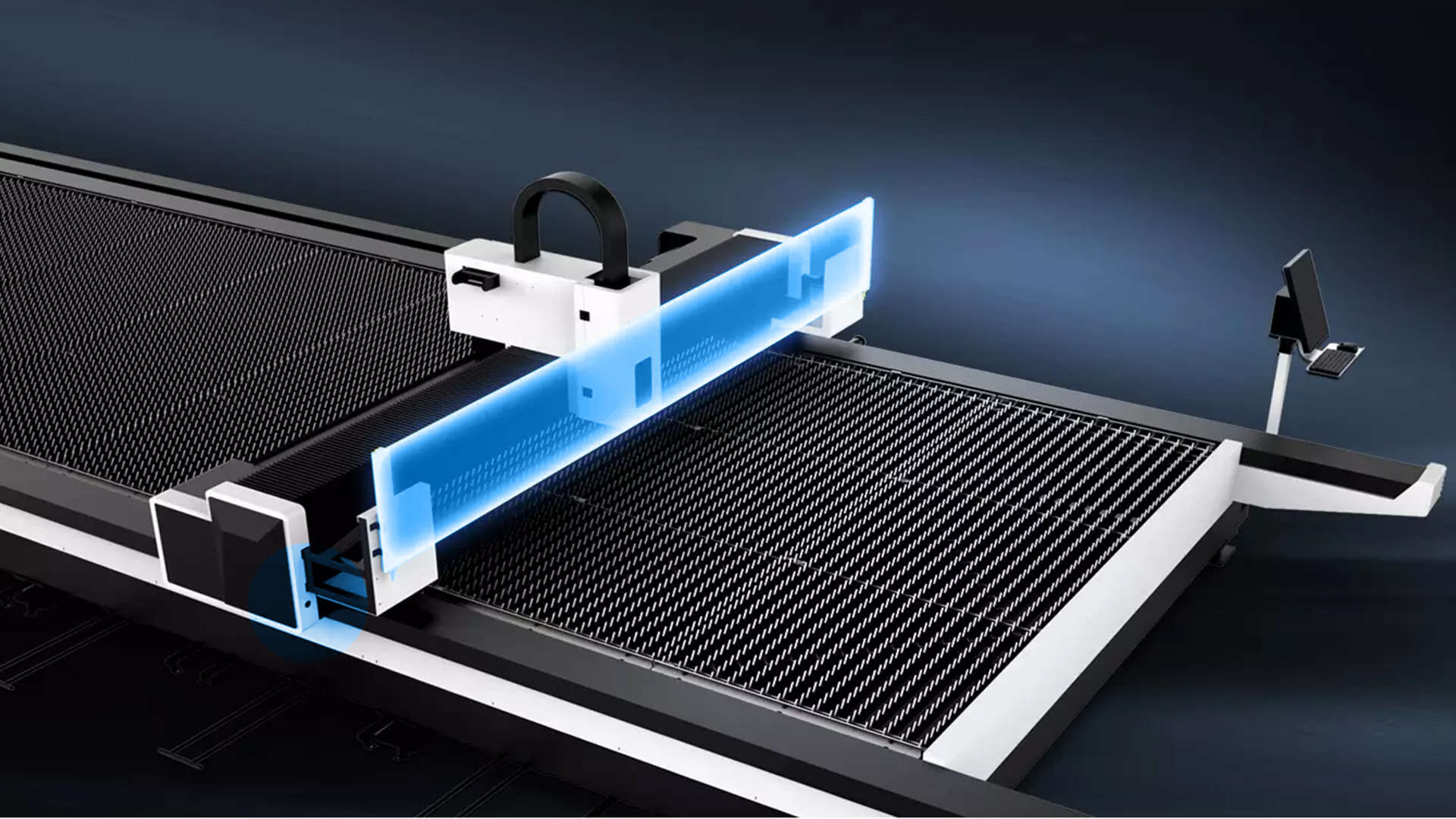

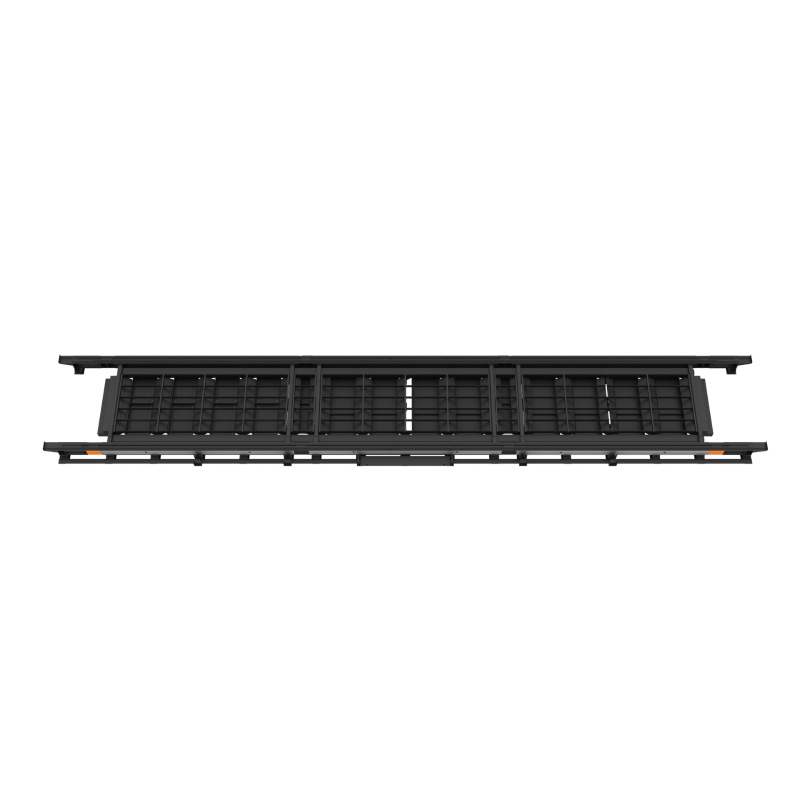

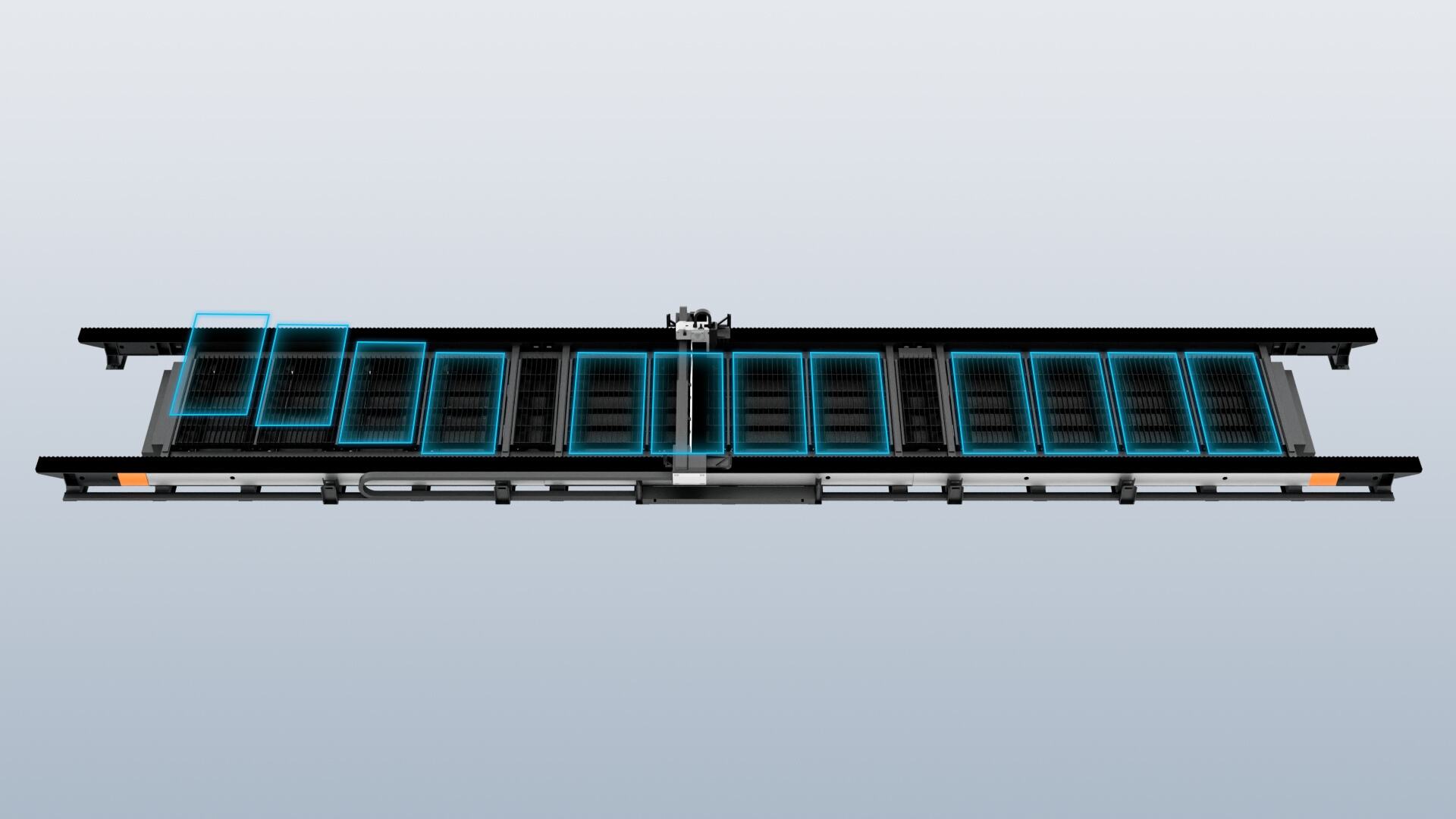

Segmented Ground-Track Bed

The ground track gantry laser cutting machine adopts a segmented ground track bed design, which is convenient for assembly and disassembly.

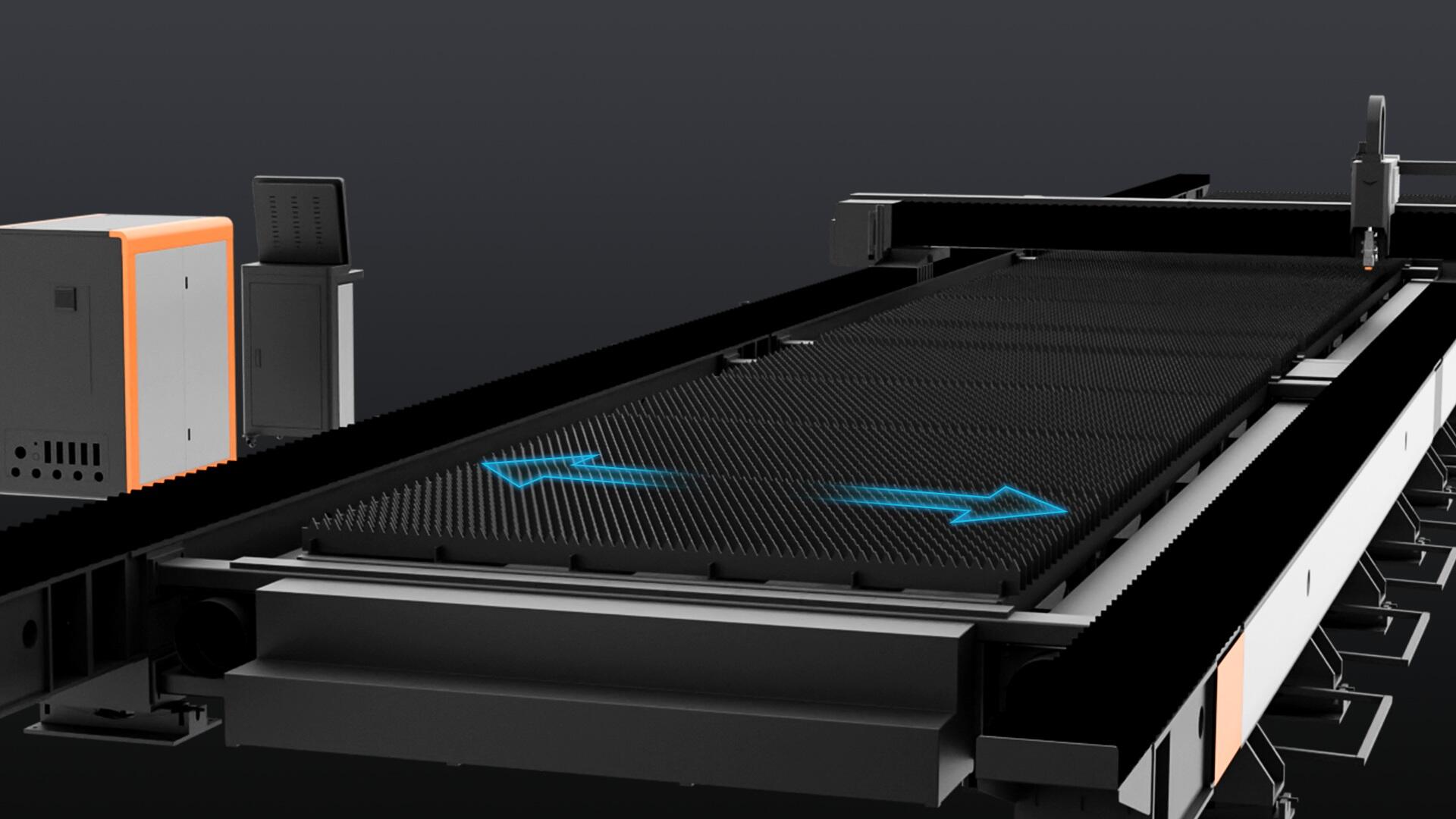

Ultra-wide format, Can be customized at will

It supports cutting of large-sized and thick materials, support continuous processing of super-long workpieces, significantly enhancing work efficiency.

Comprehensive performance improved by 15%

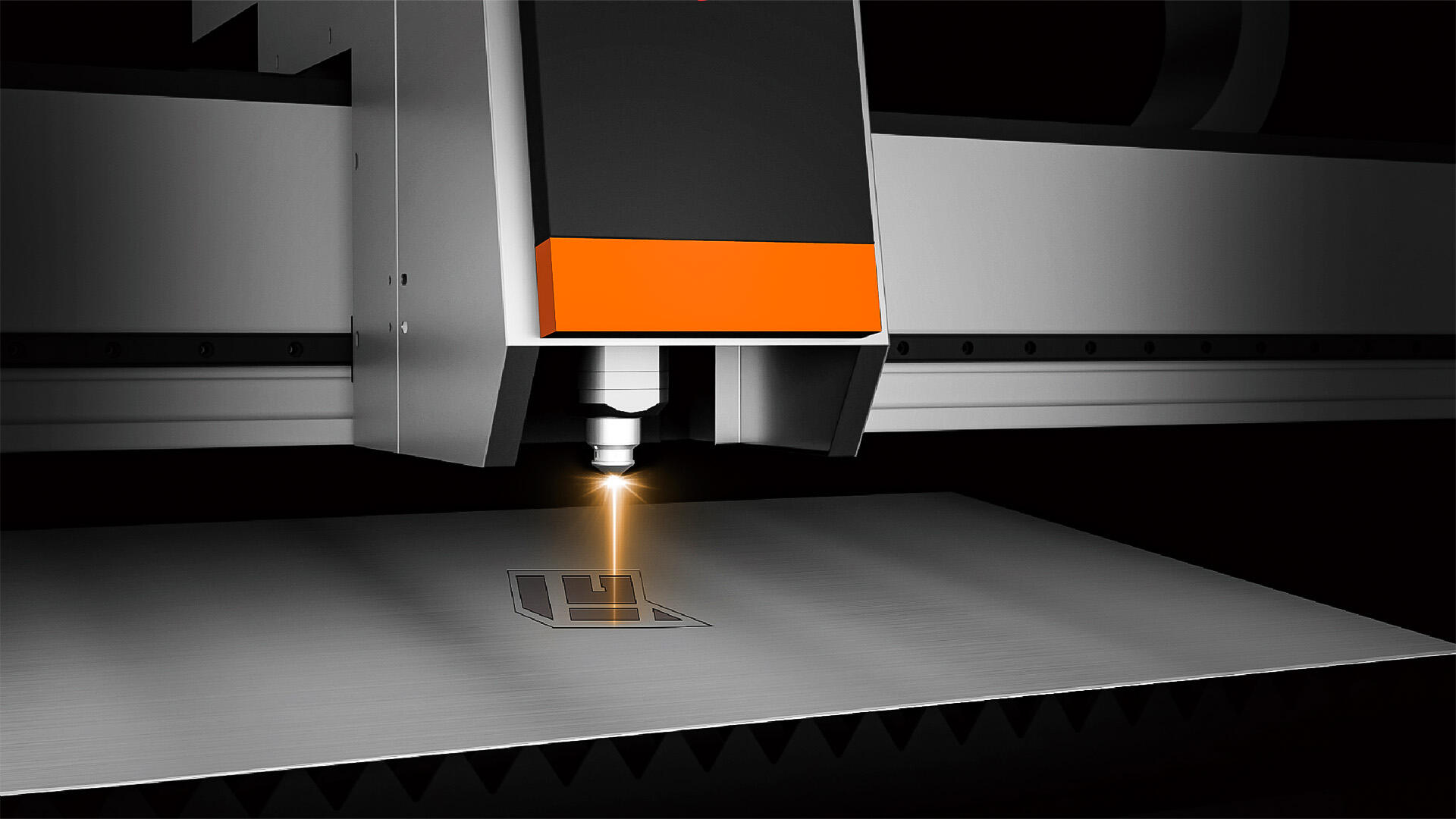

Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.

Standard bed features

• Using 8-12mm plate tenon riveting welding process.

• The two sides of the bed partition dust, super smoke exhaust effect.

• Using annealing process, the bed is not easy to change.

• Three layer spraying process, the bed does not drop paint.

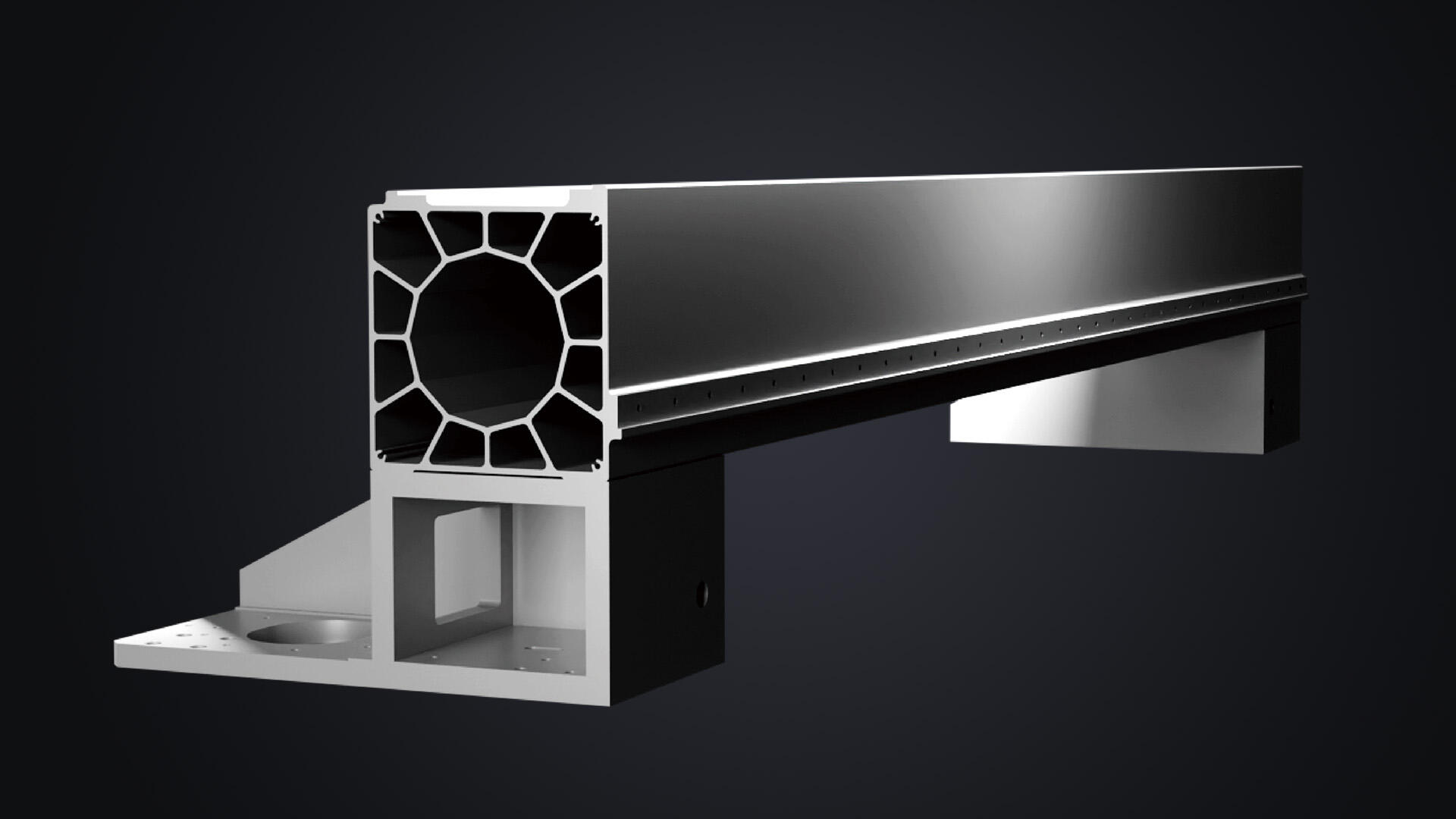

Aircraft-grade aluminum crossbeam:

• Round structure cast aluminum beam, uniform force, stable accuracy.

• Silver powder coating process, aluminum life, corrosion resistance, beautiful.

• Z-axis slide 130cm, (economic Z-axis 130cm).

• Protective spring.

Specifications

Mode	DL12025
Working area	12000mm*2500mm(Processing format can be customized)
Laser power	6000W-13500W
X/Y-axis positioning accuracy	X: ±0.03mm Y: ±0.05mm
Repeated positioning accuracy	±0.05mm
X/Y-axis maxi. acceleration	X:1.2G Y:0.75G
Application field	Engineering machinery, agricultural machinery, shipbuilding, Steel structure,iron tower processing

FAQ

1. What is the warranty policy for the machine and its core components?

-Both the whole machine and the laser generator come with a 2-year warranty, excluding wearing parts. The warranty period starts from the machine finished date notified by us.

2. Is lifetime maintenance service provided after purchasing the machine?

-Lifetime maintenance free of charge is provided.

3. Do you offer training related to machine operation?

-Free training courses are available at our plant.

4. How can I get after-sales technical support? What communication channels are available?

-There is a specialized after-sales service group available 24 hours a day. Free technical support can be obtained via Email, WhatsApp, WeChat and other channels.

5. Do I need additional debugging after receiving the machine, and can it be used directly?

-The machine has been tested and adjusted before delivery. You can use it directly after receiving it.

6. Do you provide on-site technical services? How are the related costs borne?

-On-site technical services are available, including machine installation, commissioning and maintenance. Customers need to bear the engineer's ticket and related charges, and the accommodation problem shall be handled by the customer.

7. Is machine installation complicated? Which main parts need to be connected? How to get guidance if there are questions?

-The machine is shipped in a full container with few disassembled parts. The main parts to be connected are the laser source, water chiller and controller. Detailed manuals and videos are provided. If you have any questions, our after-sales staff can guide you hand by hand via video call.
