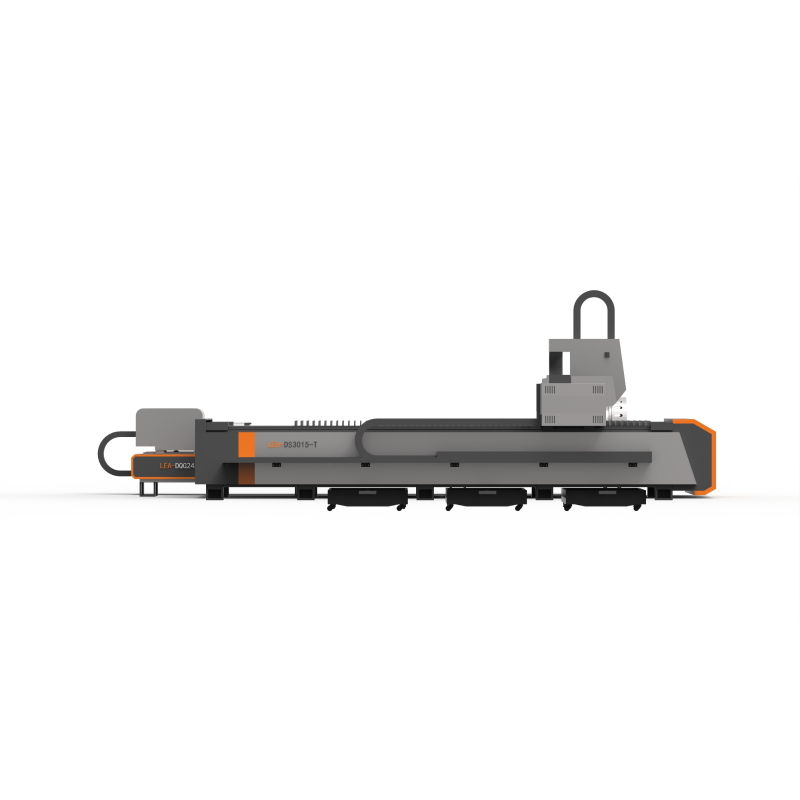

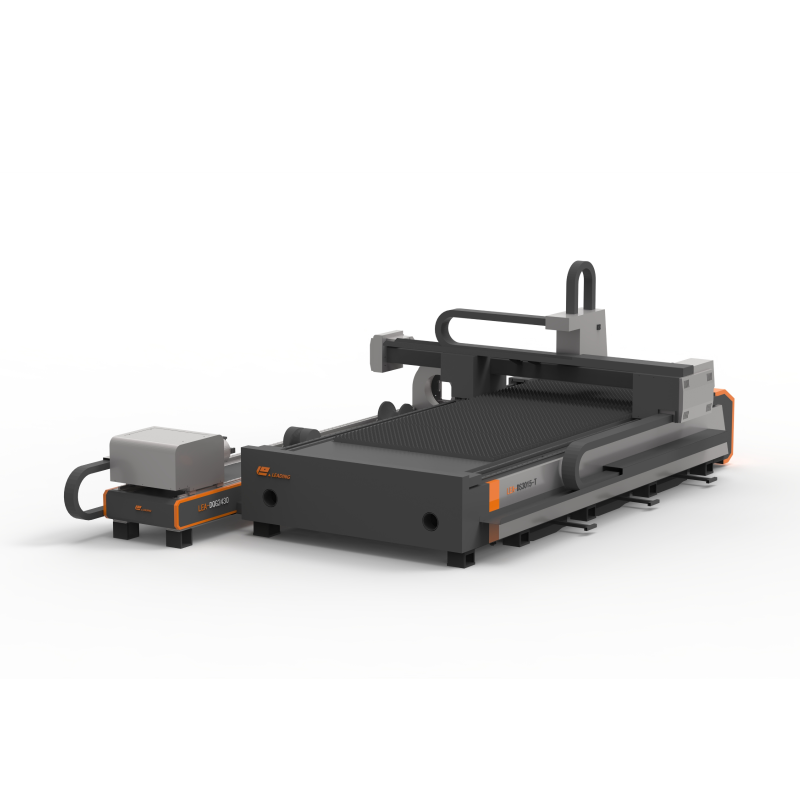

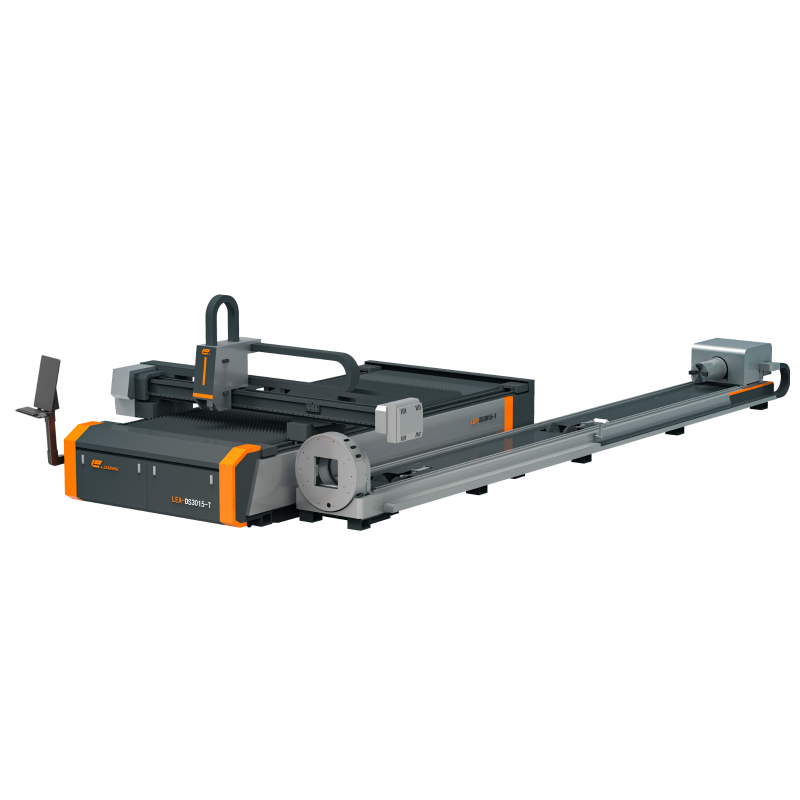

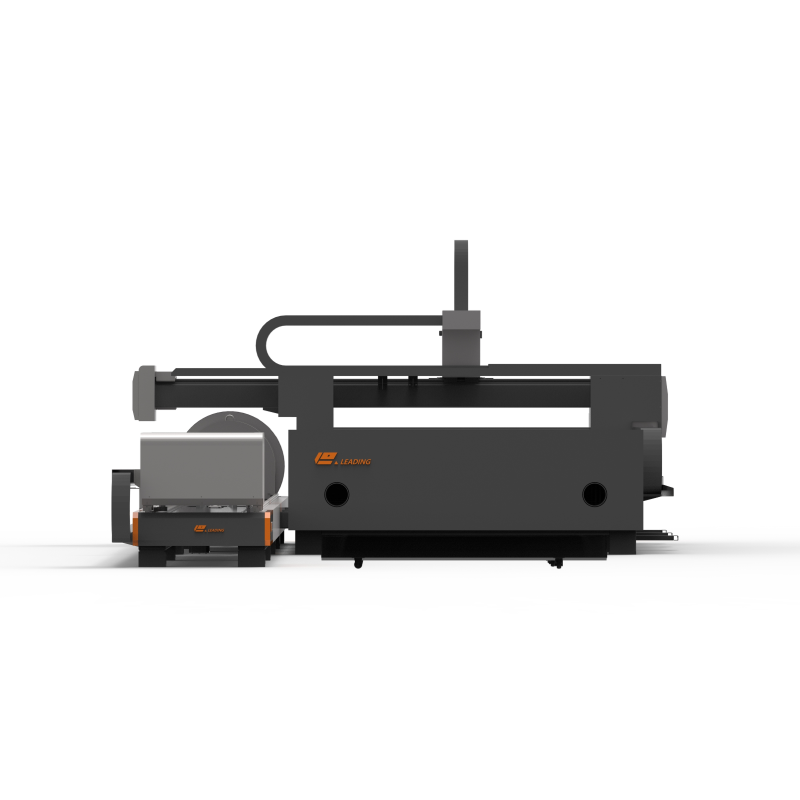

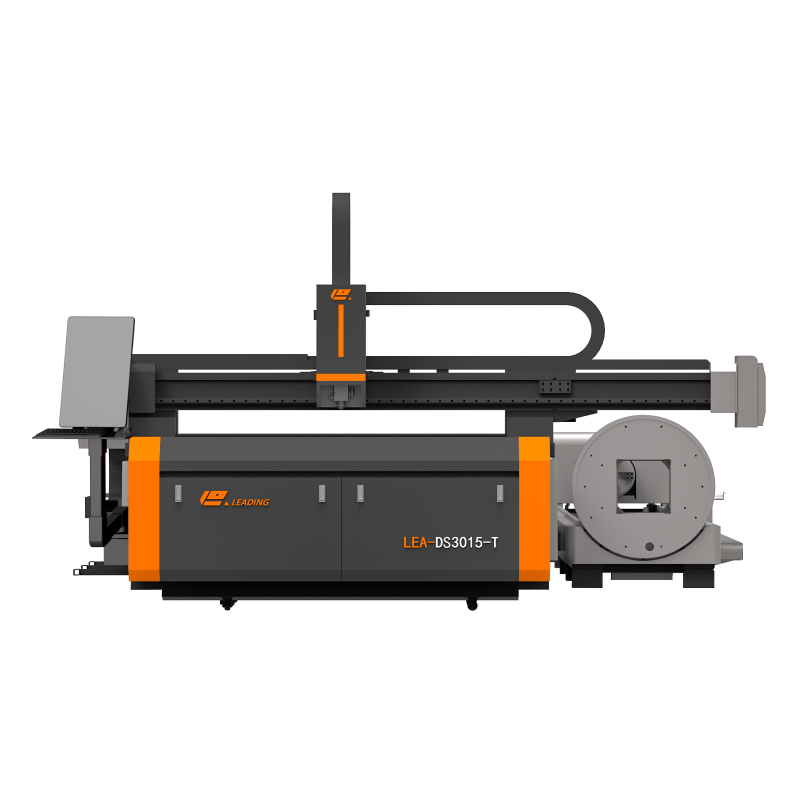

Single Tube-Plate Laser Cutting Machines

Single Tube-Plate Laser Cutting Machines

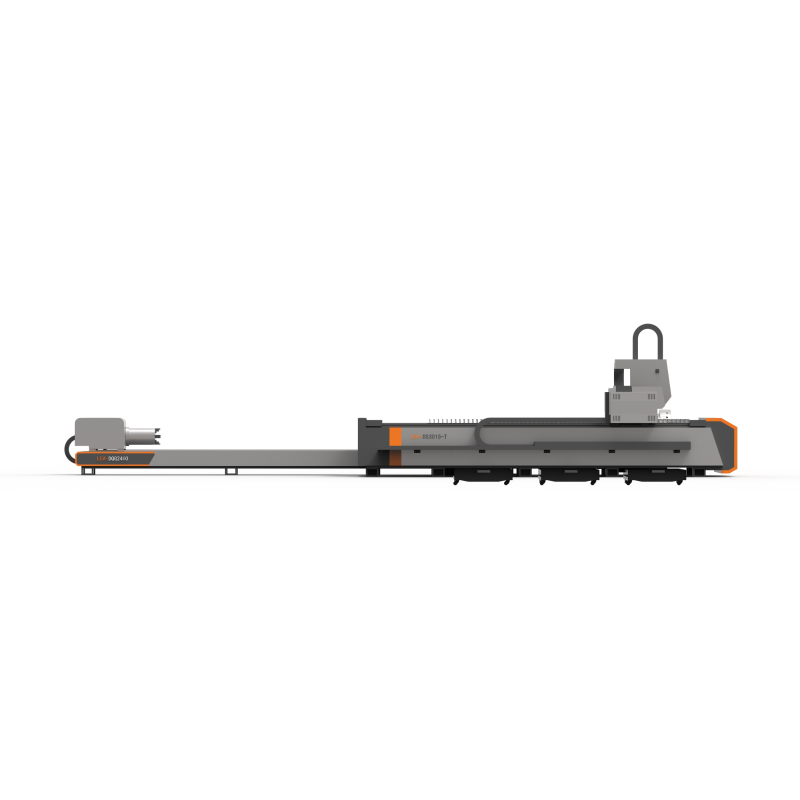

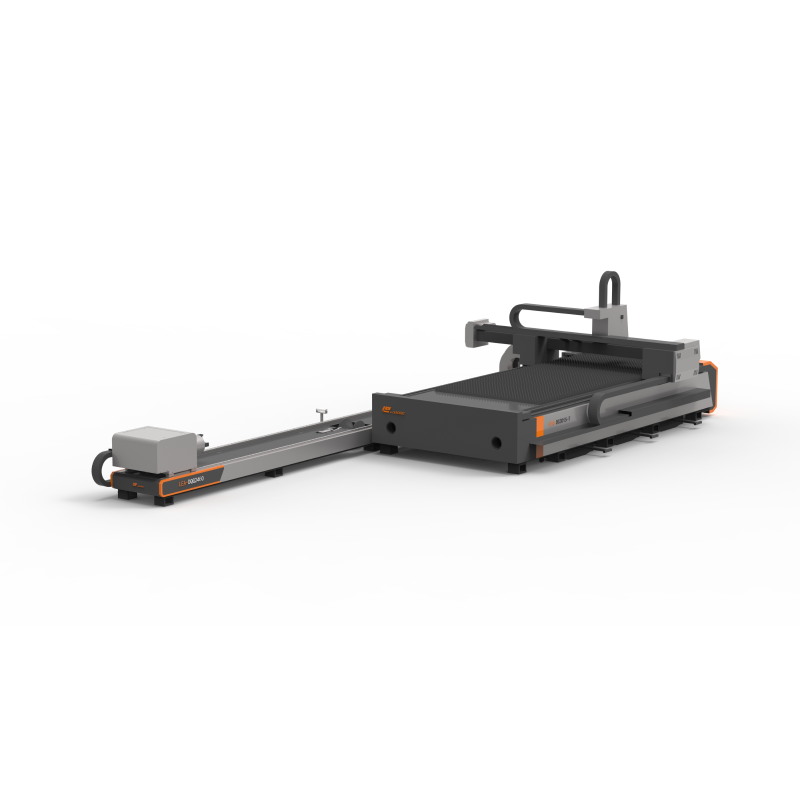

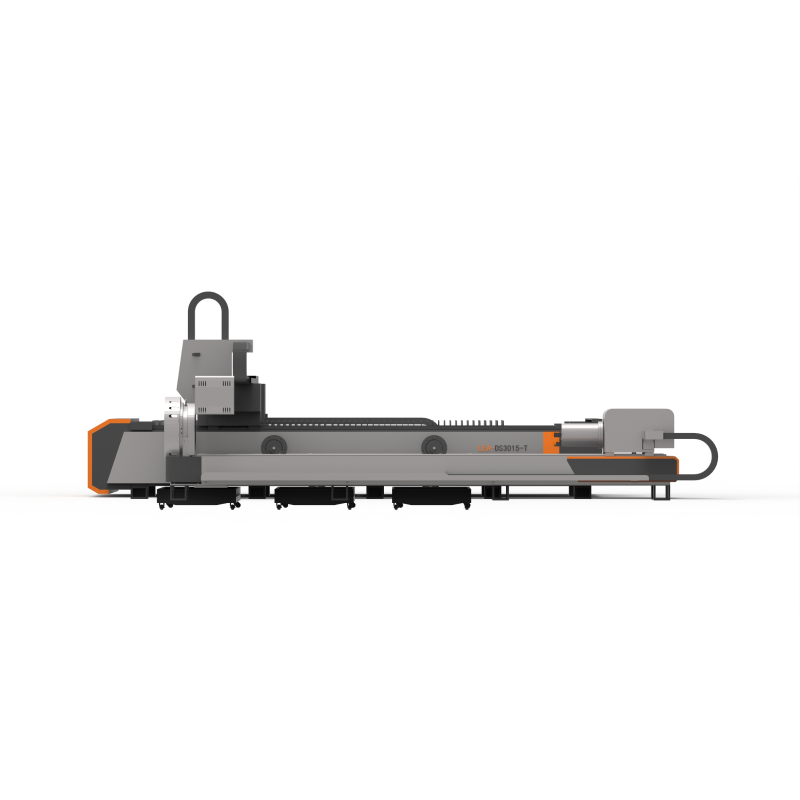

This Single Tube-Plate Laser Cutting Machines both metal sheets and tubes, significantly reducing procurement costs and saving space. It accepts standard tube lengths of 3m or 6m. Built with a rigid cast iron bed that guarantees stability for over 20 years, it features a robust aviation aluminum beam for smooth operation. The fully automatic dual-start chuck is designed for exceptional durability. Furthermore, imported transmission components ensure high-precision movement and reliable performance.

Chat Now

Description
Specifications
FAQ

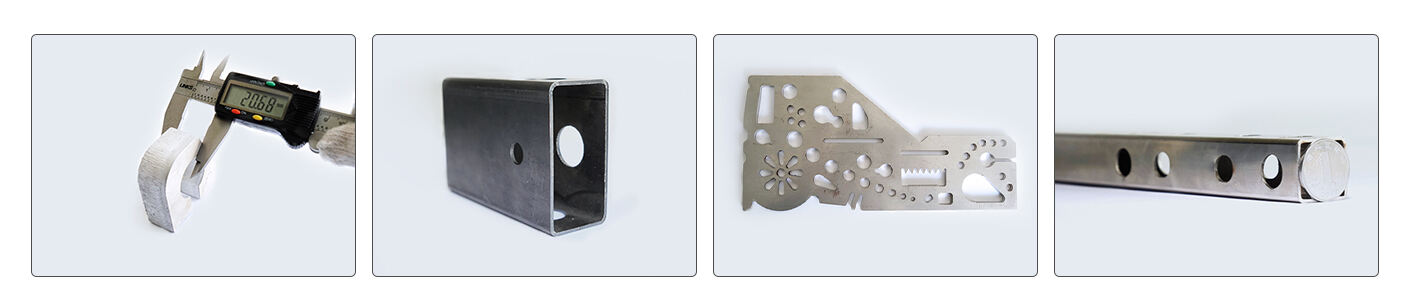

Sample Display

For machine prices and efficient production solutions, please contact us!

+86-13280023931

[email protected]

Description

One machine for two purposes

Double-use function saves both cost and space. It can not only process metal sheets, but also various metal tubes, which greatly improves the work efficiency.

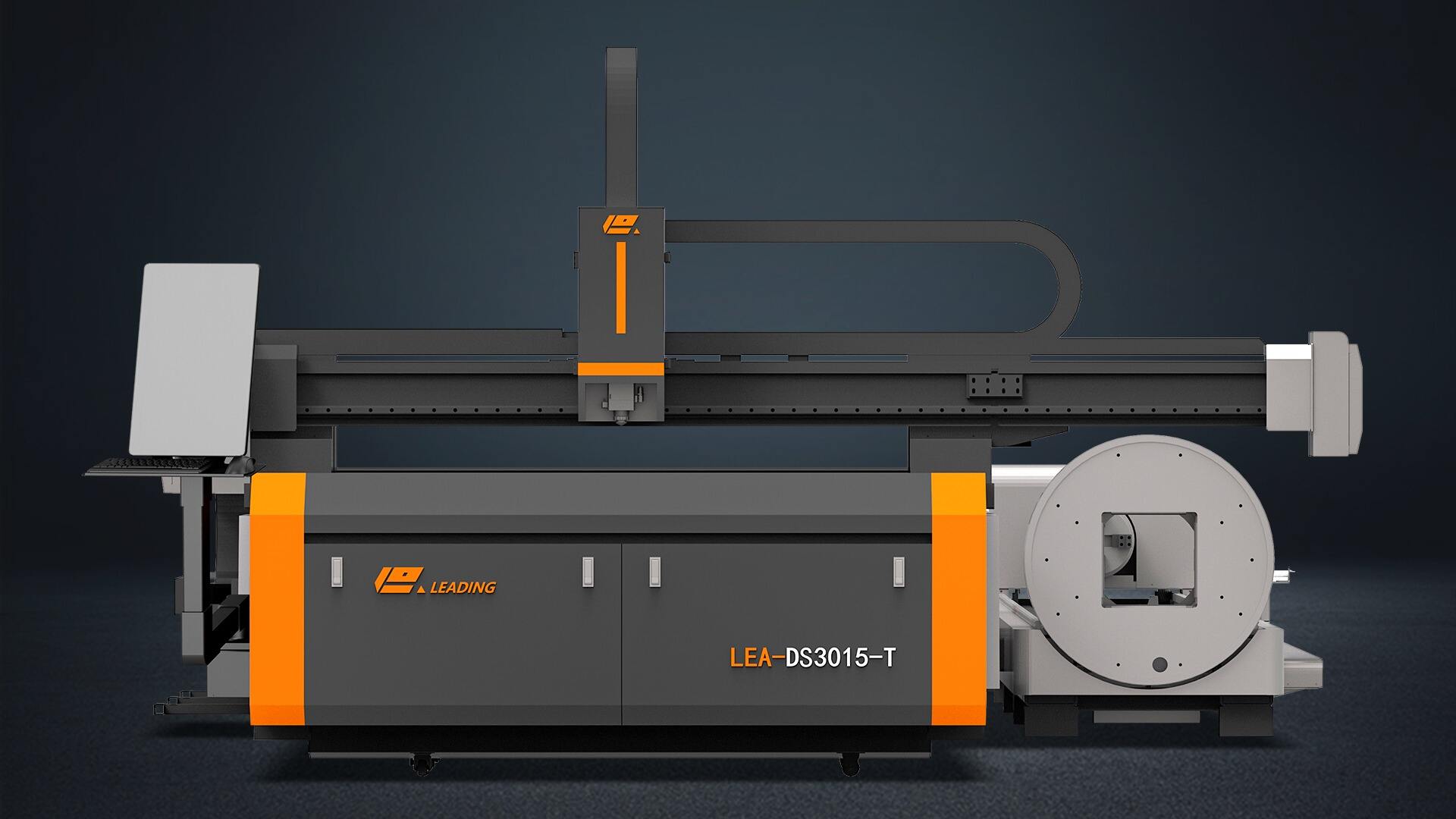

1- (1).jpg

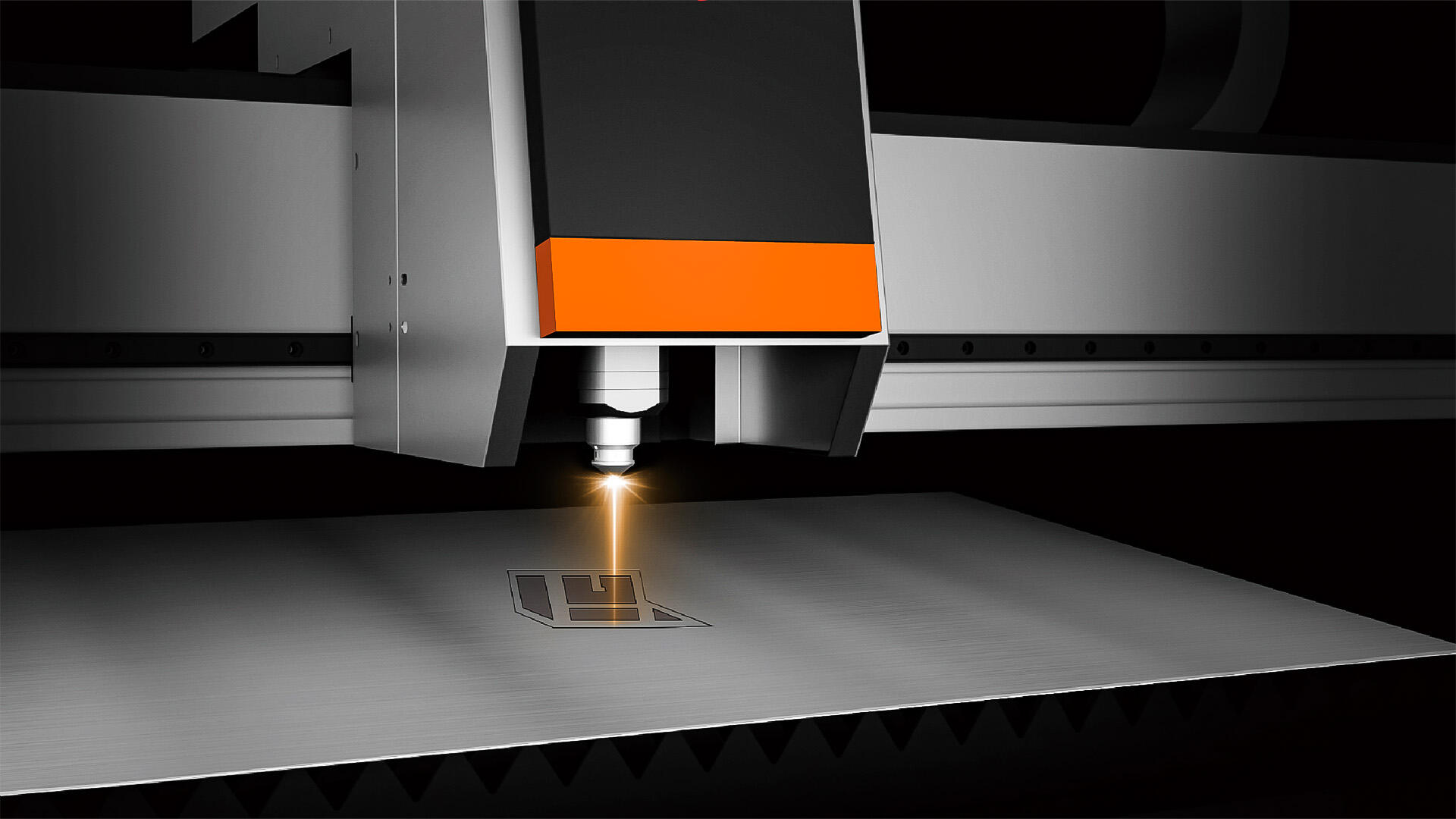

1- (2).jpg

Comprehensive performance improved by 15%

Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.

Aircraft-grade aluminum crossbeam:

• Round structure cast aluminum beam, uniform force, stable accuracy.

• Silver powder coating process, aluminum life, corrosion resistance, beautiful.

• Z-axis slide 130cm, (economic Z-axis 130cm).

• Protective spring.

1- (3).jpg

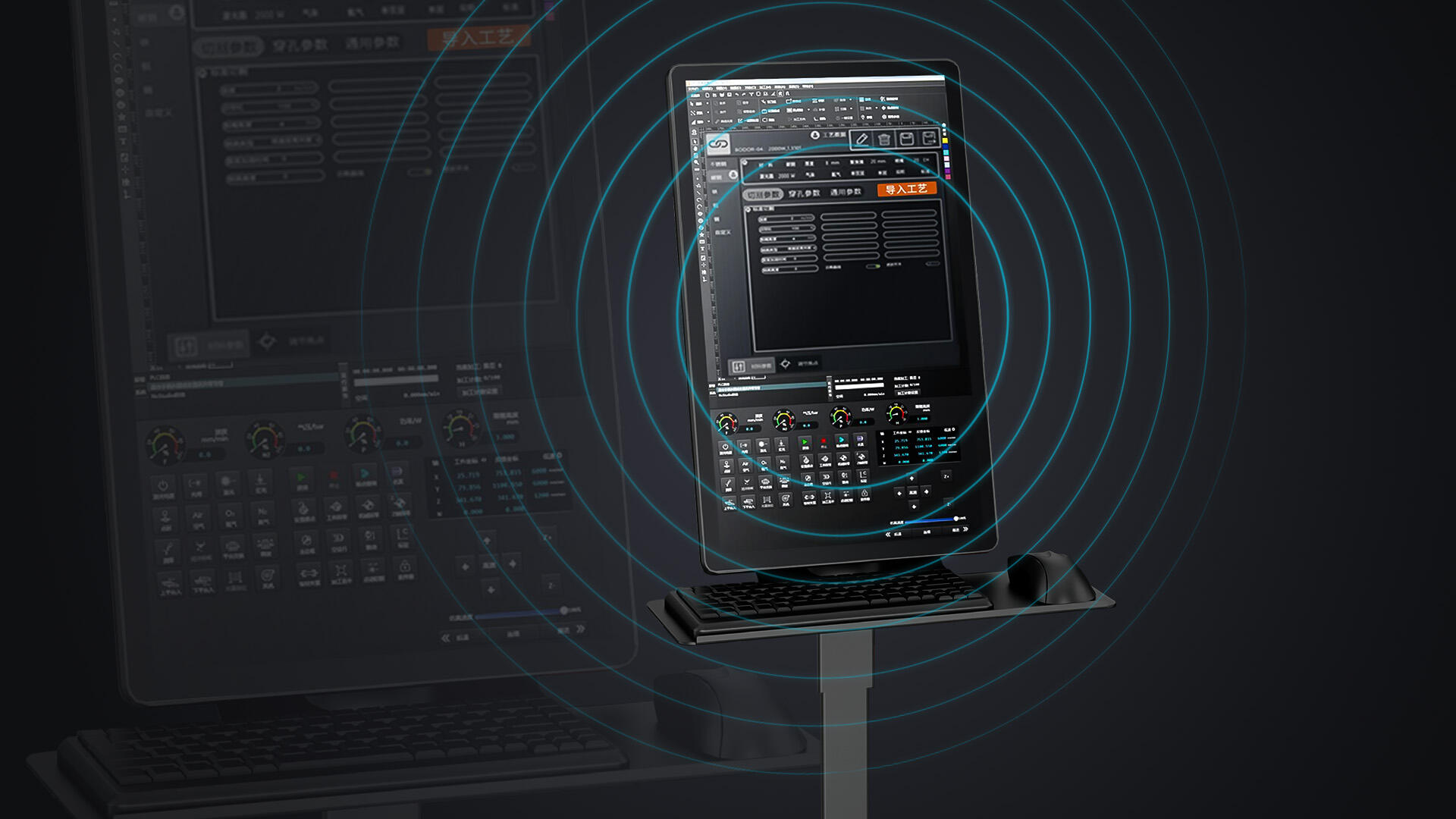

1- (4).jpg

• lt is the brain of the laser cutting machine and is responsiblefor controlling the movement of the cutting head.

• Through the pre-written cutting program (G code, etc.).

• The CNC system can precisely control the cutting head to cutalong the set path.

• System(Optional):Raytools/Cypcut/Weihong

Specifications

Model	LEA-DS4020-T
Machine bed	Square tube welding
Gantry struture	Aluminum
Working area	4000*2000mm
chine overall dimensie	830039002000
Overall weight	4500kg
Guiderail	THK/PEK/HIWIN
Laser head	Raytools/Precitec
Laser source	IPG/Raycus/MAX
Servo motor and drive	YASKAWA/FUJI
Control system	Cypcut/WEIHONG
Chuck	Dysonbot
Clamping Range	20-220mm(320/350) mm
Max linkage speed	100m/min
Max acceleration	1.5G
Positioning accuracy	0.03mm
Pepositioning accuracy	0.02mm
laser power	1KW-6KW

FAQ

1. What is the warranty policy for the machine and its core components?

-Both the whole machine and the laser generator come with a 2-year warranty, excluding wearing parts. The warranty period starts from the machine finished date notified by us.

2. Is lifetime maintenance service provided after purchasing the machine?

-Lifetime maintenance free of charge is provided.

3. Do you offer training related to machine operation?

-Free training courses are available at our plant.

4. How can I get after-sales technical support? What communication channels are available?

-There is a specialized after-sales service group available 24 hours a day. Free technical support can be obtained via Email, WhatsApp, WeChat and other channels.

5. Do I need additional debugging after receiving the machine, and can it be used directly?

-The machine has been tested and adjusted before delivery. You can use it directly after receiving it.

6. Do you provide on-site technical services? How are the related costs borne?

-On-site technical services are available, including machine installation, commissioning and maintenance. Customers need to bear the engineer's ticket and related charges, and the accommodation problem shall be handled by the customer.

7. Is machine installation complicated? Which main parts need to be connected? How to get guidance if there are questions?

-The machine is shipped in a full container with few disassembled parts. The main parts to be connected are the laser source, water chiller and controller. Detailed manuals and videos are provided. If you have any questions, our after-sales staff can guide you hand by hand via video call.
