Open Exchange Tube-Plate Laser Cutting Machines

Open Exchange Tube-Plate Laser Cutting Machines

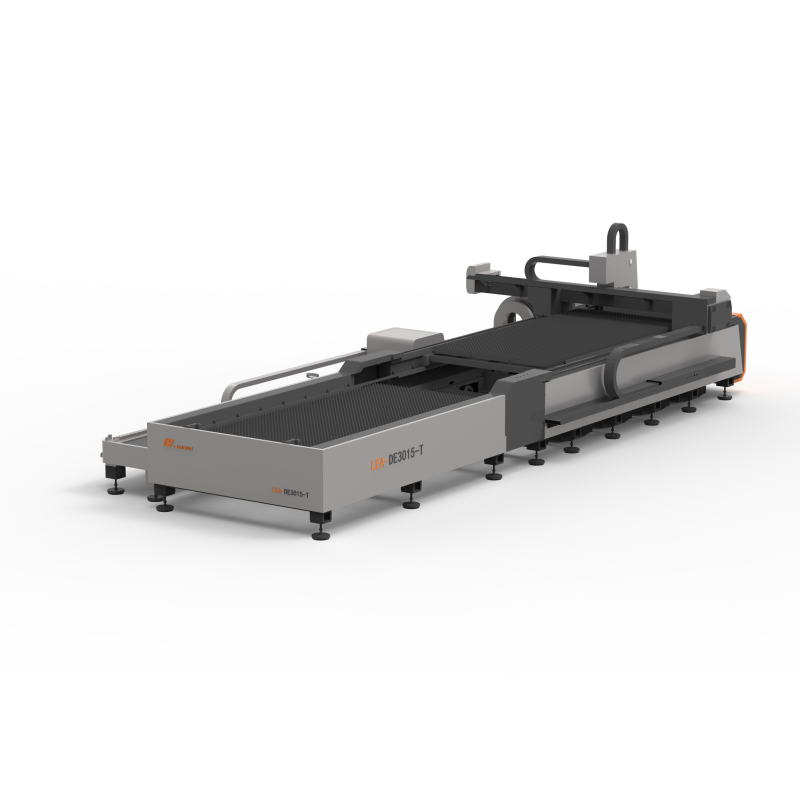

This exchange-platform laser cutting machine processes both metal sheets and tubes, significantly reducing procurement costs and saving space. Its dual-table design allows continuous operation, one table cuts while the other loads maximizing productivity.
Built with a heavy-duty cast iron bed that ensures stability for up to 20 years, the machine also features an aerospace-grade aluminum beam for smooth, reliable performance. Equipped with a durable fully automatic dual-start chuck and high-precision imported transmission components, it delivers exceptional accuracy and long-term reliability.

Chat Now

Description
Specifications
FAQ
Sample Display

For machine prices and efficient production solutions, please contact us!

+86-13280023931

[email protected]

Description

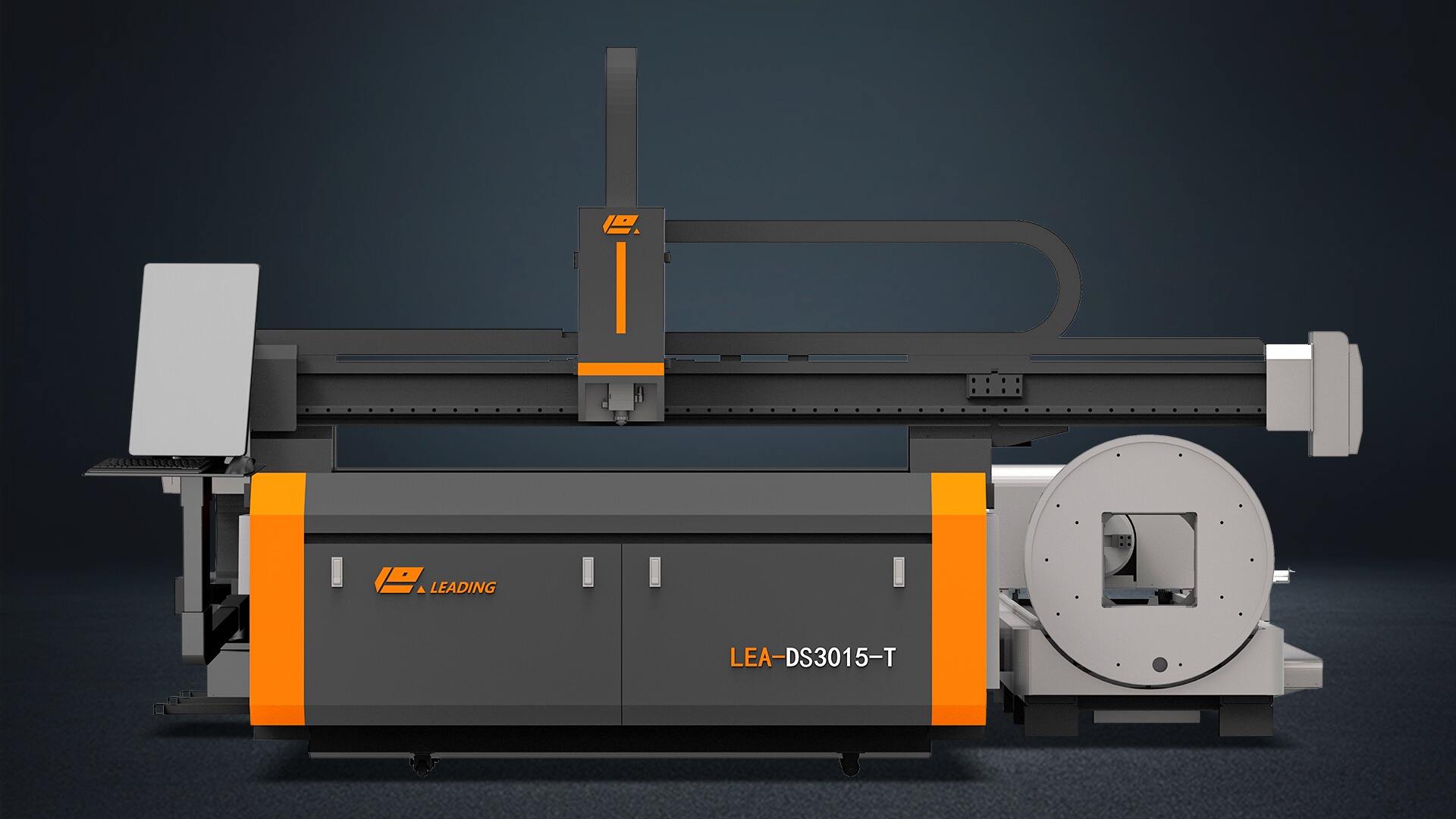

One machine for two purposes

Double-use function saves both cost and space. It can not only process metal sheets, but also various metal tubes, which greatly improves the work efficiency.

Open Exchange Tube-Plate Laser Cutting Machines (1).jpg

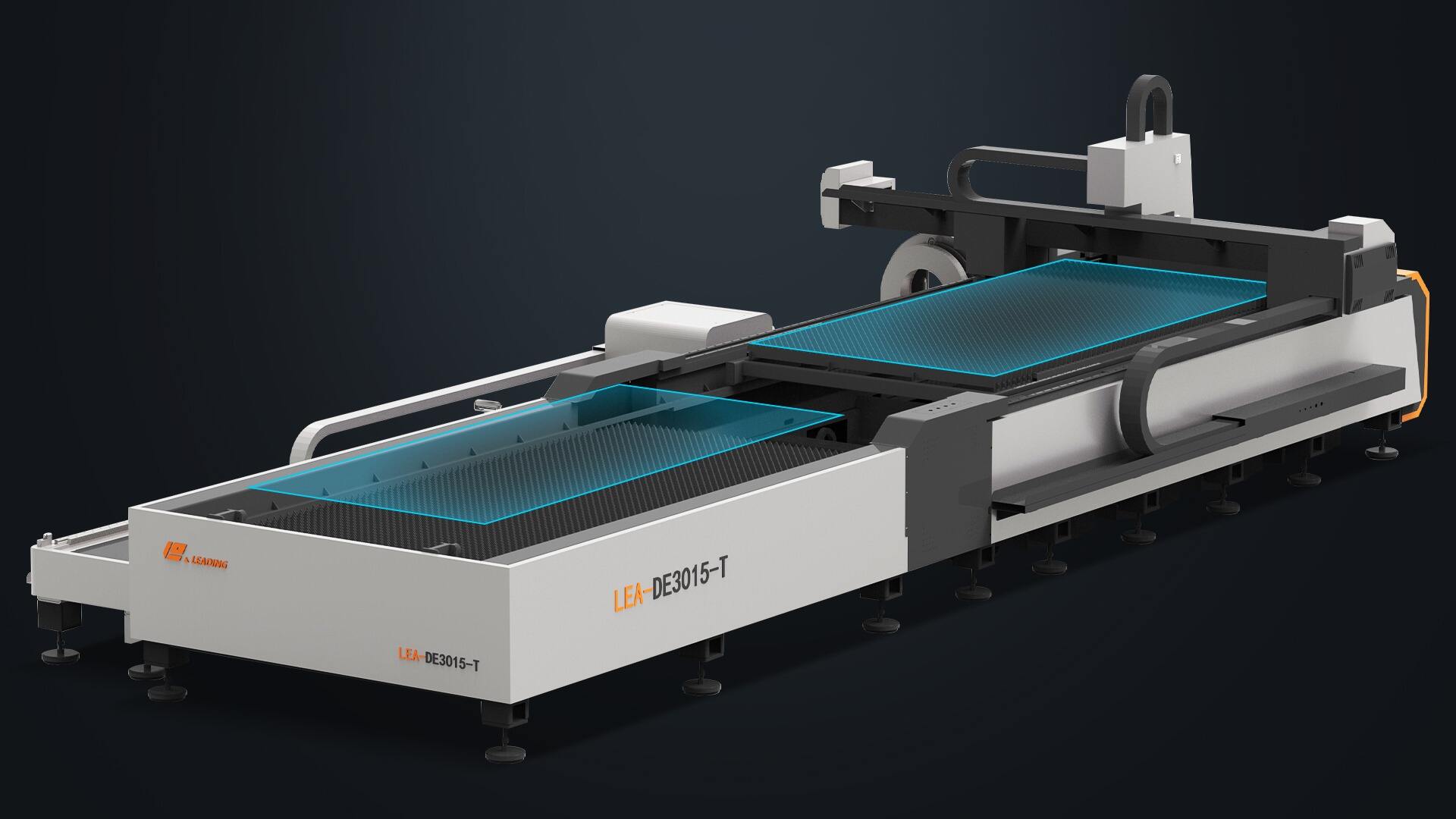

Open Exchange Tube-Plate Laser Cutting Machines (2).jpg

Efficient production capacity andfast refuelling speed

Laser cutting machine for exchange plates is equipped with two tables, one of which can be used for cutting while the other table can be used for loading. The cutting process can be uninterrupted, thus increasing production efficiency.

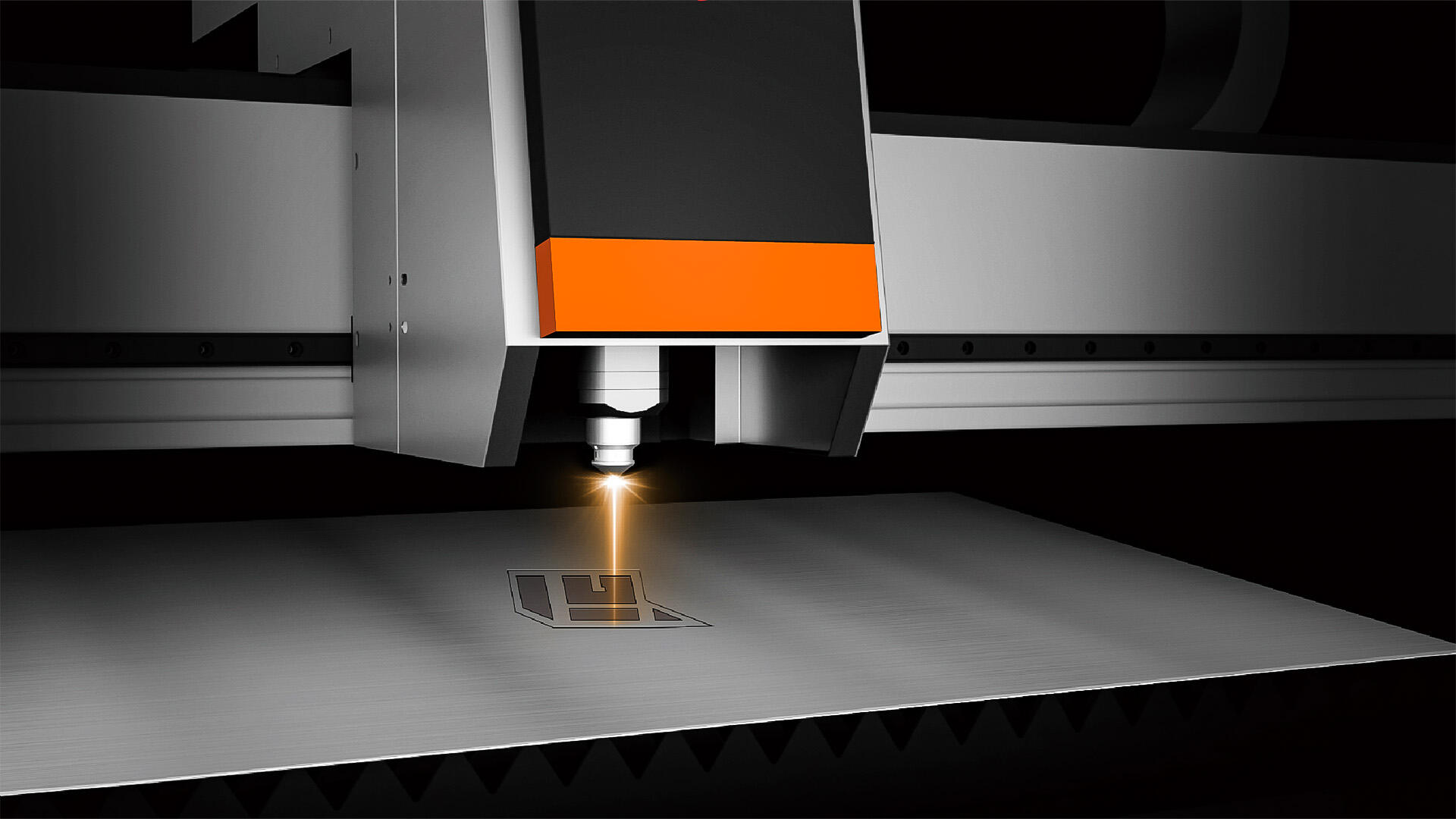

Comprehensive performance improved by 15%

Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.

Open Exchange Tube-Plate Laser Cutting Machines (3).jpg

Open Exchange Tube-Plate Laser Cutting Machines (4).jpg

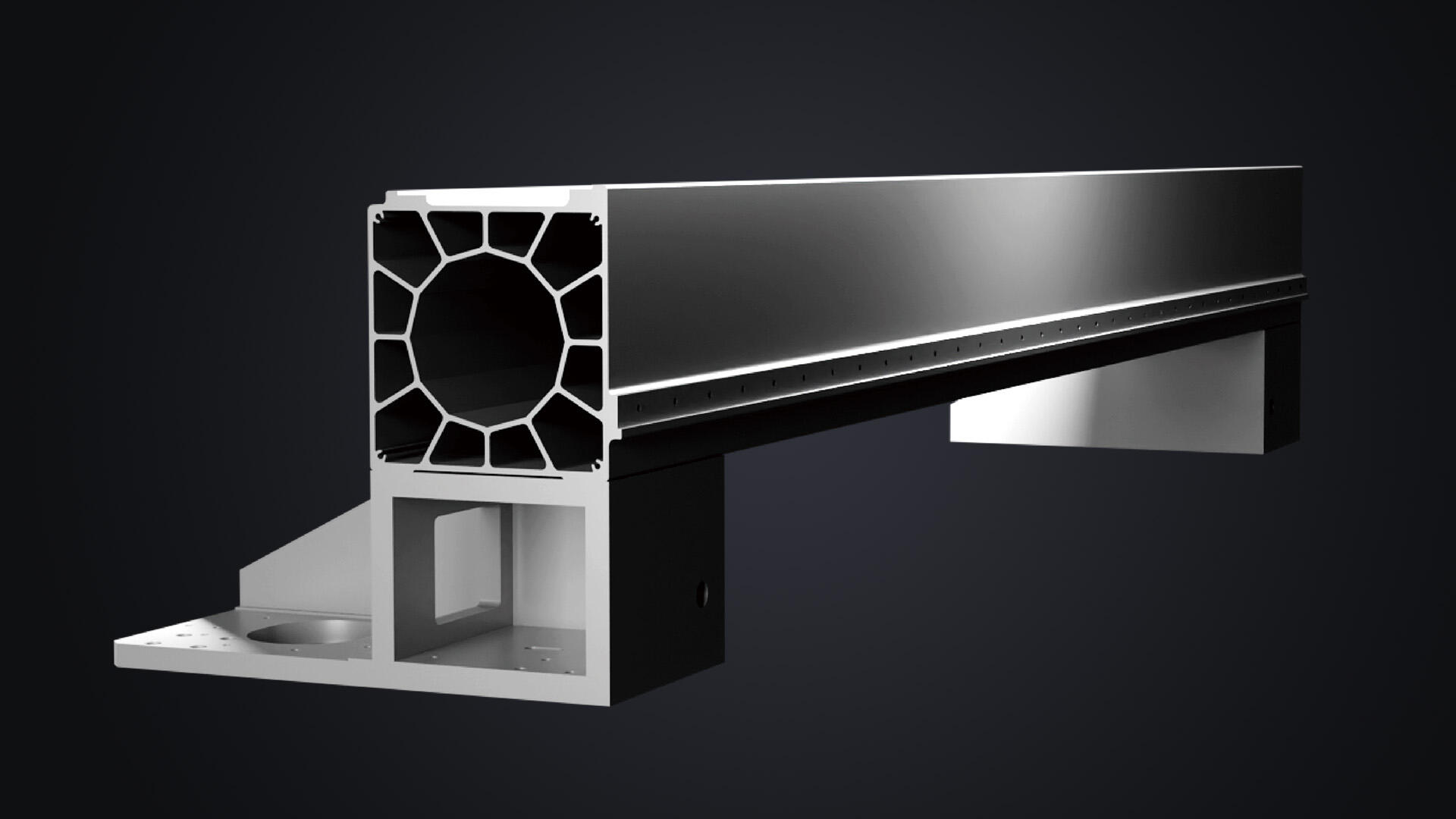

Aircraft-grade aluminum crossbeam:

• Round structure cast aluminum beam, uniform force, stable accuracy.

• Silver powder coating process, aluminum life, corrosion resistance, beautiful.

• Z-axis slide 130cm, (economic Z-axis 130cm).

• Protective spring.

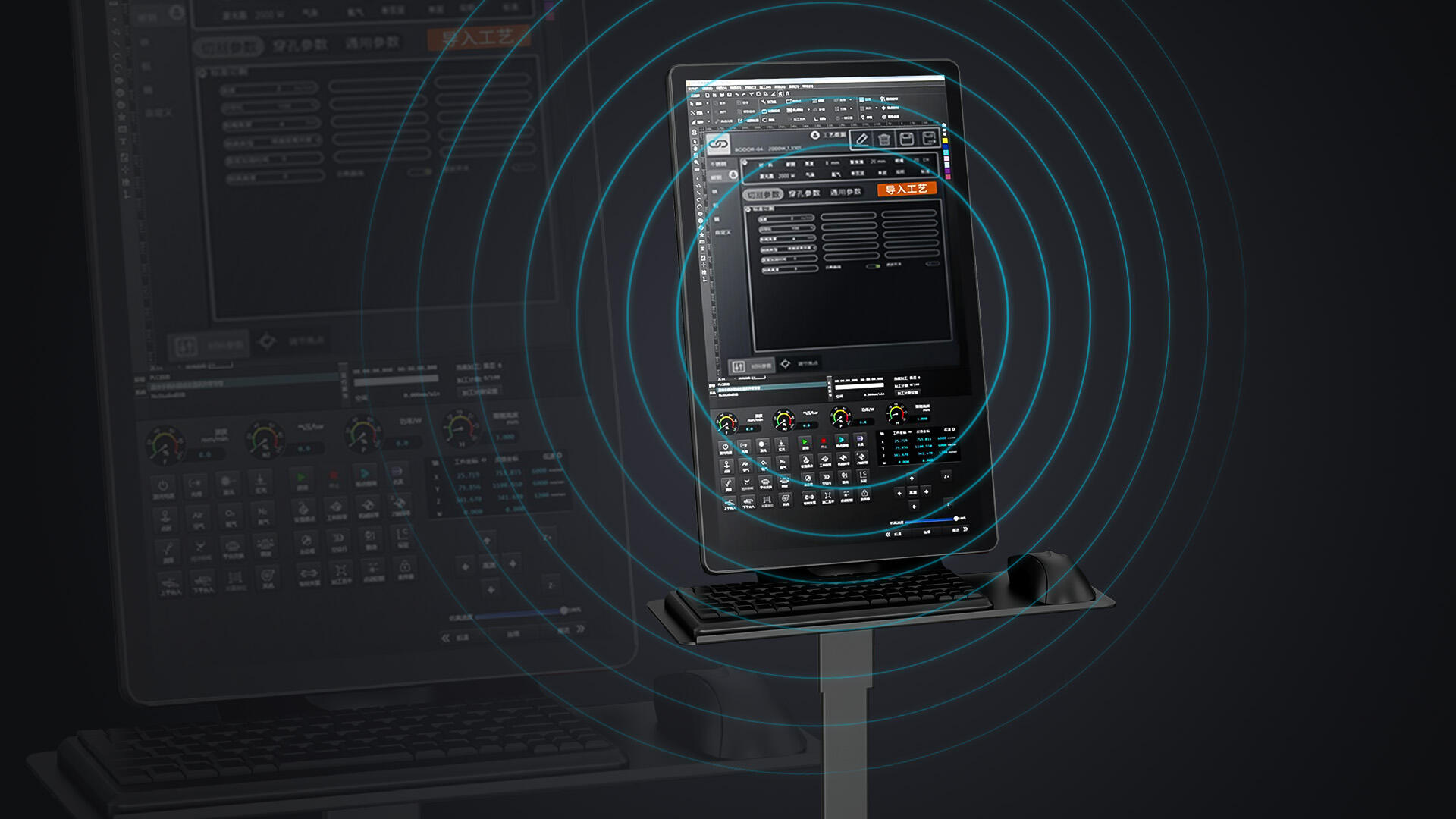

• lt is the brain of the laser cutting machine and is responsiblefor controlling the movement of the cutting head.

• Through the pre-written cutting program (G code, etc.).

• The CNC system can precisely control the cutting head to cutalong the set path.

• System(Optional):Raytools/Cypcut/Weihong

Open Exchange Tube-Plate Laser Cutting Machines (5).jpg

Specifications

Model	LEA-DS4020-T
Machine bed	Square tube welding
Gantry struture	Aluminum
Working area	4000*2000mm
chine overall dimensie	830039002000
Overall weight	4500kg
Guiderail	THK/PEK/HIWIN
Laser head	Raytools/Precitec
Laser source	IPG/Raycus/MAX
Servo motor and drive	YASKAWA/FUJI
Control system	Cypcut/WEIHONG
Chuck	Dysonbot
Clamping Range	20-220mm(320/350) mm
Max linkage speed	100m/min
Max acceleration	1.5G
Positioning accuracy	0.03mm
Pepositioning accuracy	0.02mm
laser power	1KW-6KW

FAQ

1. What is the warranty policy for the machine and its core components?

-Both the whole machine and the laser generator come with a 2-year warranty, excluding wearing parts. The warranty period starts from the machine finished date notified by us.

2. Is lifetime maintenance service provided after purchasing the machine?

-Lifetime maintenance free of charge is provided.

3. Do you offer training related to machine operation?

-Free training courses are available at our plant.

4. How can I get after-sales technical support? What communication channels are available?

-There is a specialized after-sales service group available 24 hours a day. Free technical support can be obtained via Email, WhatsApp, WeChat and other channels.

5. Do I need additional debugging after receiving the machine, and can it be used directly?

-The machine has been tested and adjusted before delivery. You can use it directly after receiving it.

6. Do you provide on-site technical services? How are the related costs borne?

-On-site technical services are available, including machine installation, commissioning and maintenance. Customers need to bear the engineer's ticket and related charges, and the accommodation problem shall be handled by the customer.

7. Is machine installation complicated? Which main parts need to be connected? How to get guidance if there are questions?

-The machine is shipped in a full container with few disassembled parts. The main parts to be connected are the laser source, water chiller and controller. Detailed manuals and videos are provided. If you have any questions, our after-sales staff can guide you hand by hand via video call.
