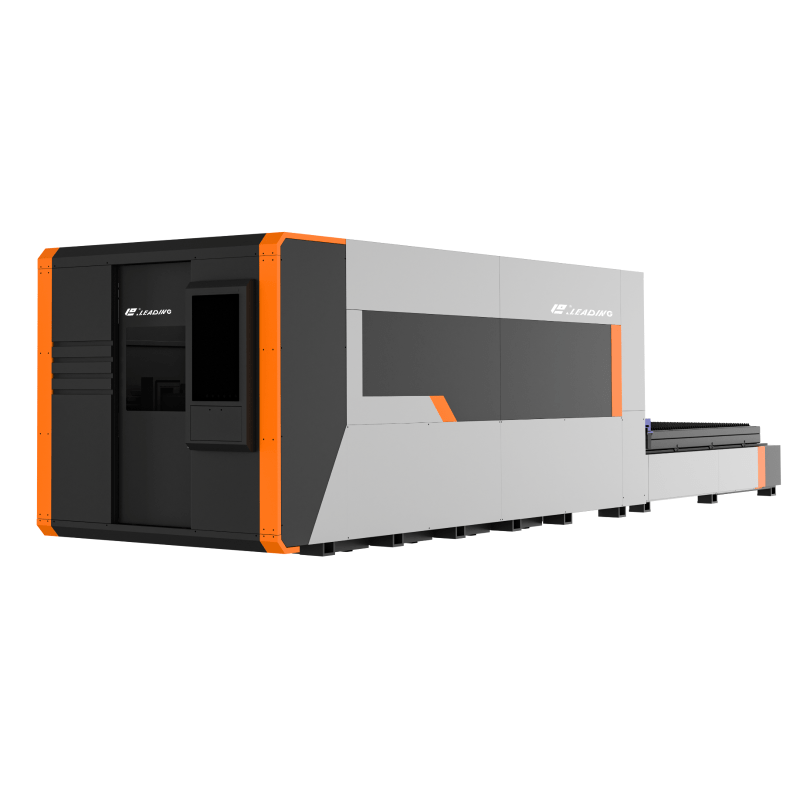

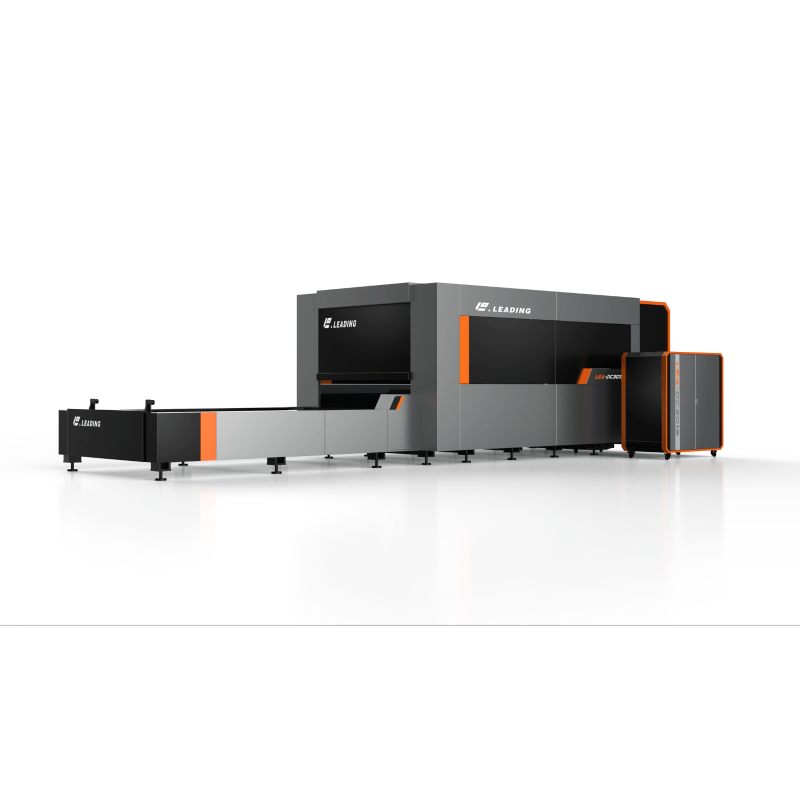

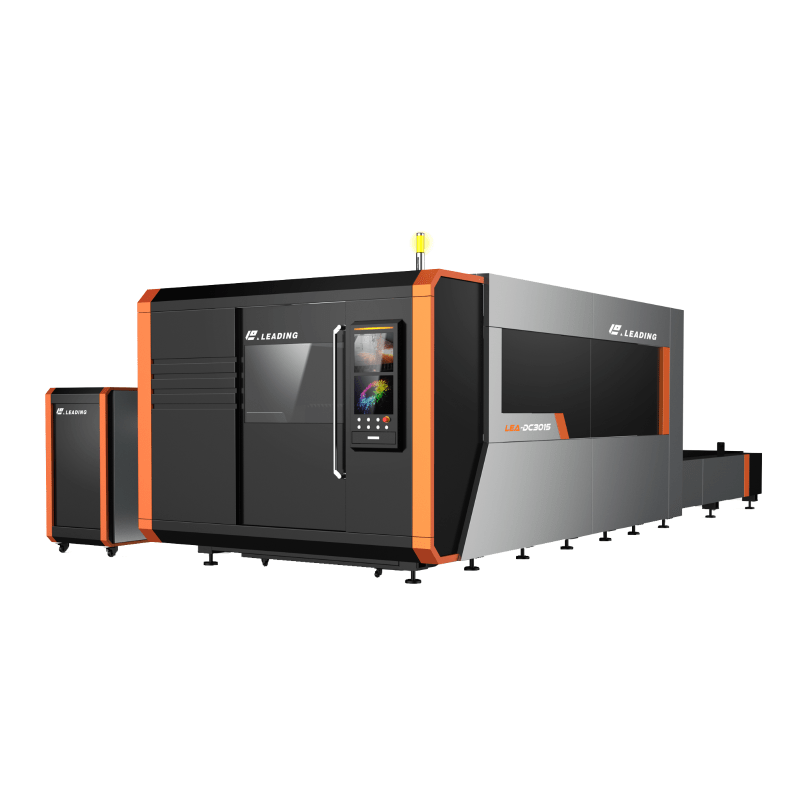

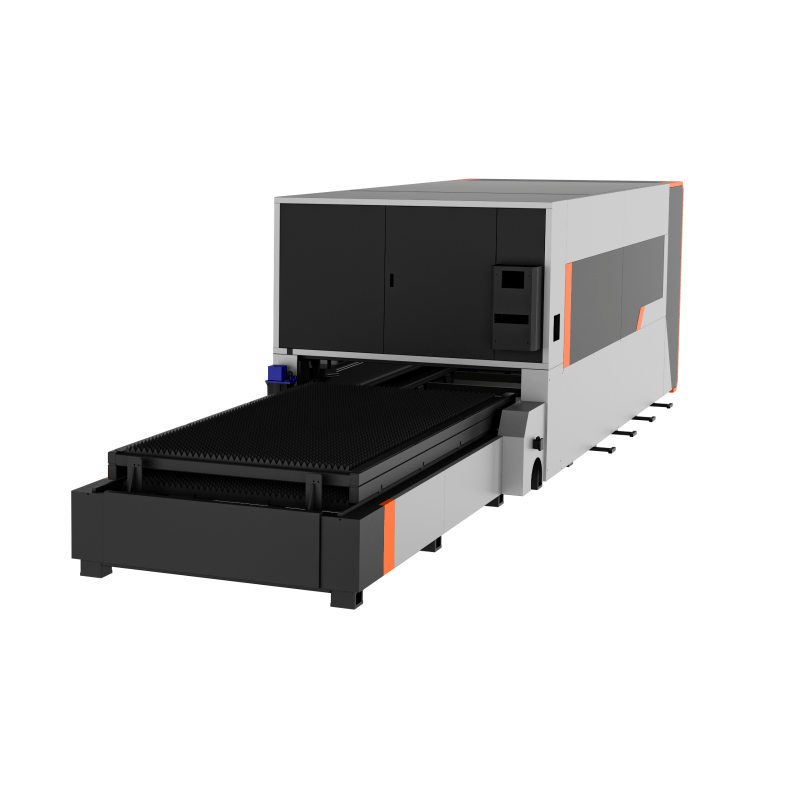

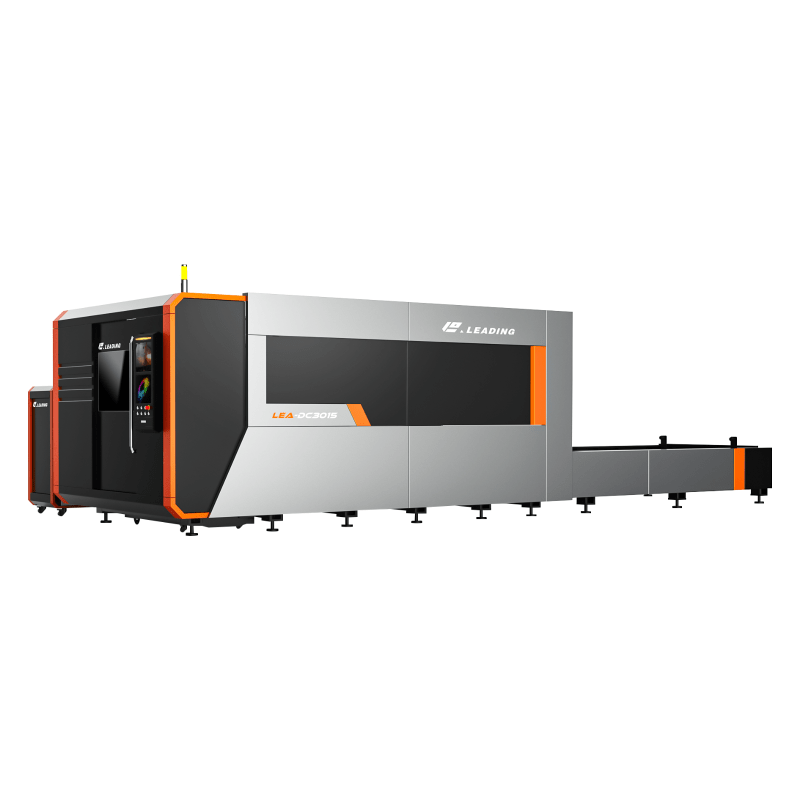

LEA-DC Full Cover Exchange Plate Laser Cutting Machine

Full Cover Exchange Plate Laser Cutting Machine as one of the classic models, is widely used in many common fields in our lives, such as the processing of cabinets like stainless steel kitchenware and storage cabinets, and is closely related to People's Daily lives. It is used for cutting various metal plates and is mainly applied to stainless steel, carbon steel, galvanized plates, electrolytic plates, brass, aluminum, various alloy plates, rare metals and other metal materials.

Chat Now

Description
Specifications
FAQ

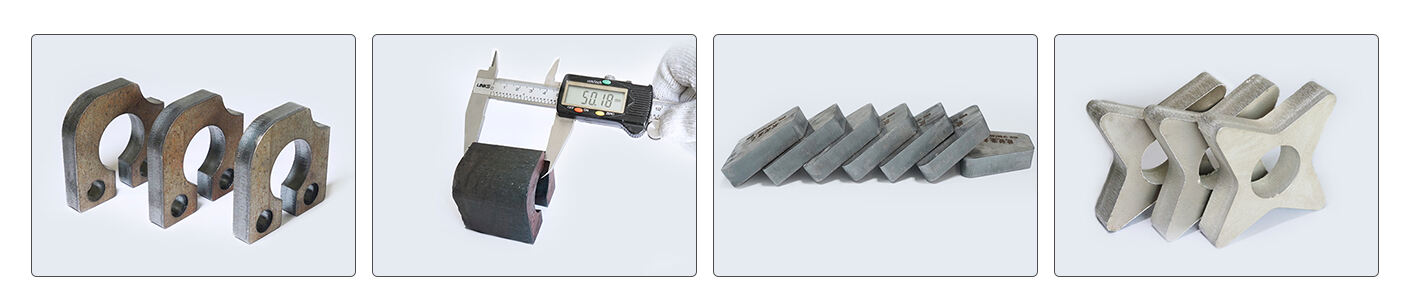

Sample Display

For machine prices and efficient production solutions, please contact us!

+86-13280023931

[email protected]

Description

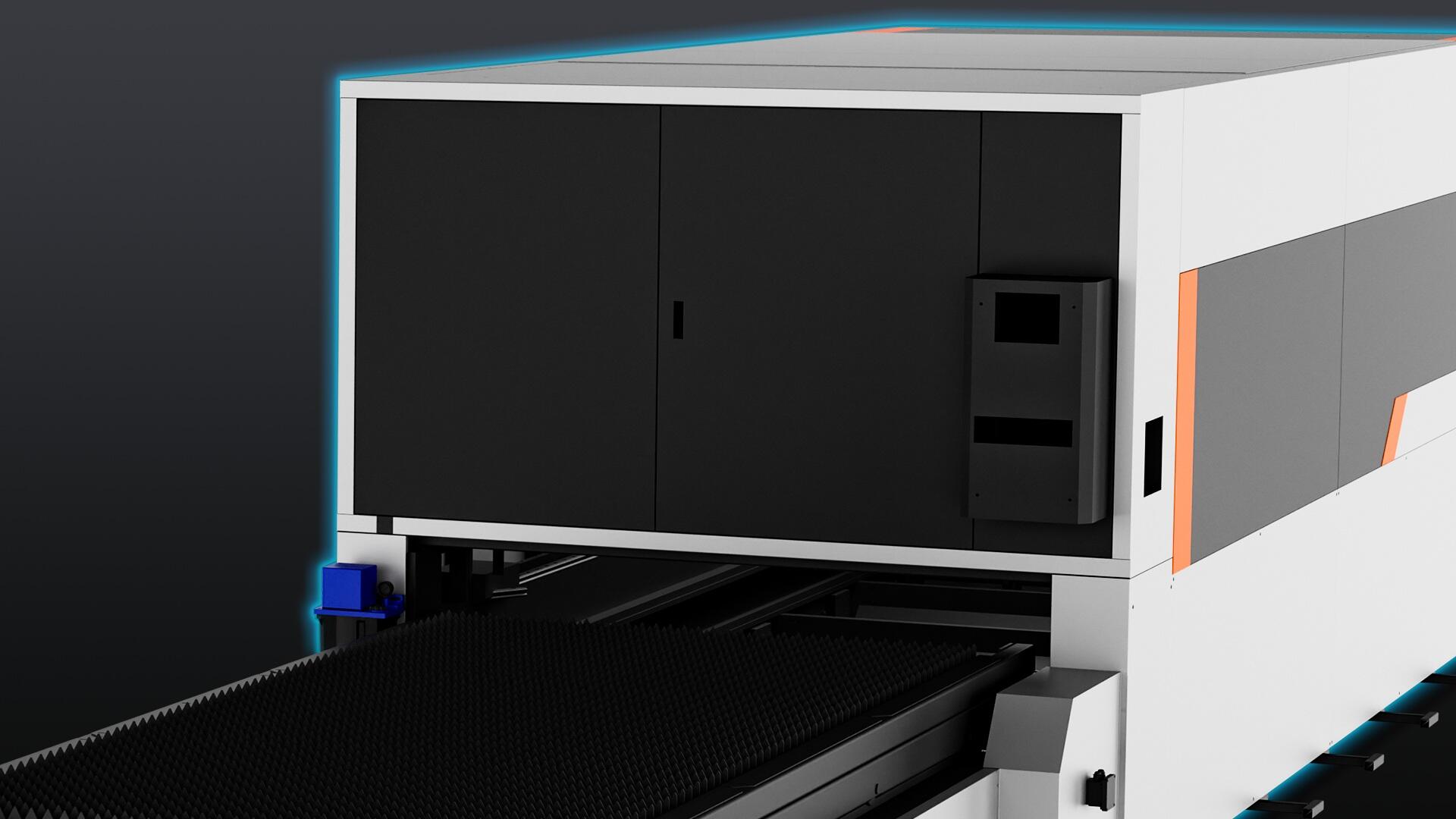

Fully enclosed external protection The newly designed closed cover, compact structure, can effectively isolate the laser cutting arc, prevent the escape of smoke, reduce the laser damage to the human eye, but also reduce the risk of mechanical injury, to provide more reliable safety protection for the operator, and more in line with the requirements of green environmental protection.

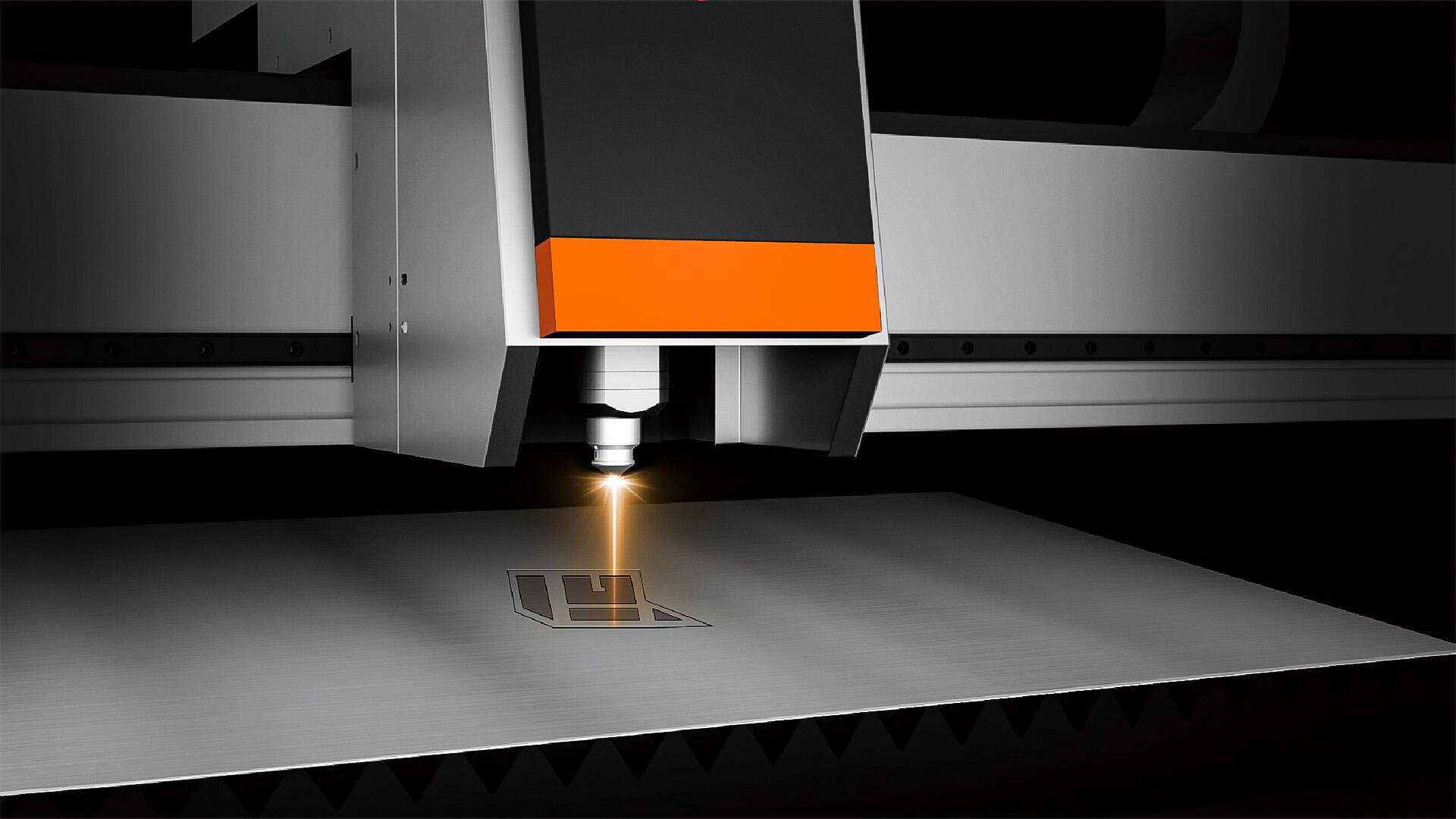

	Comprehensive performance improved by 15% Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.

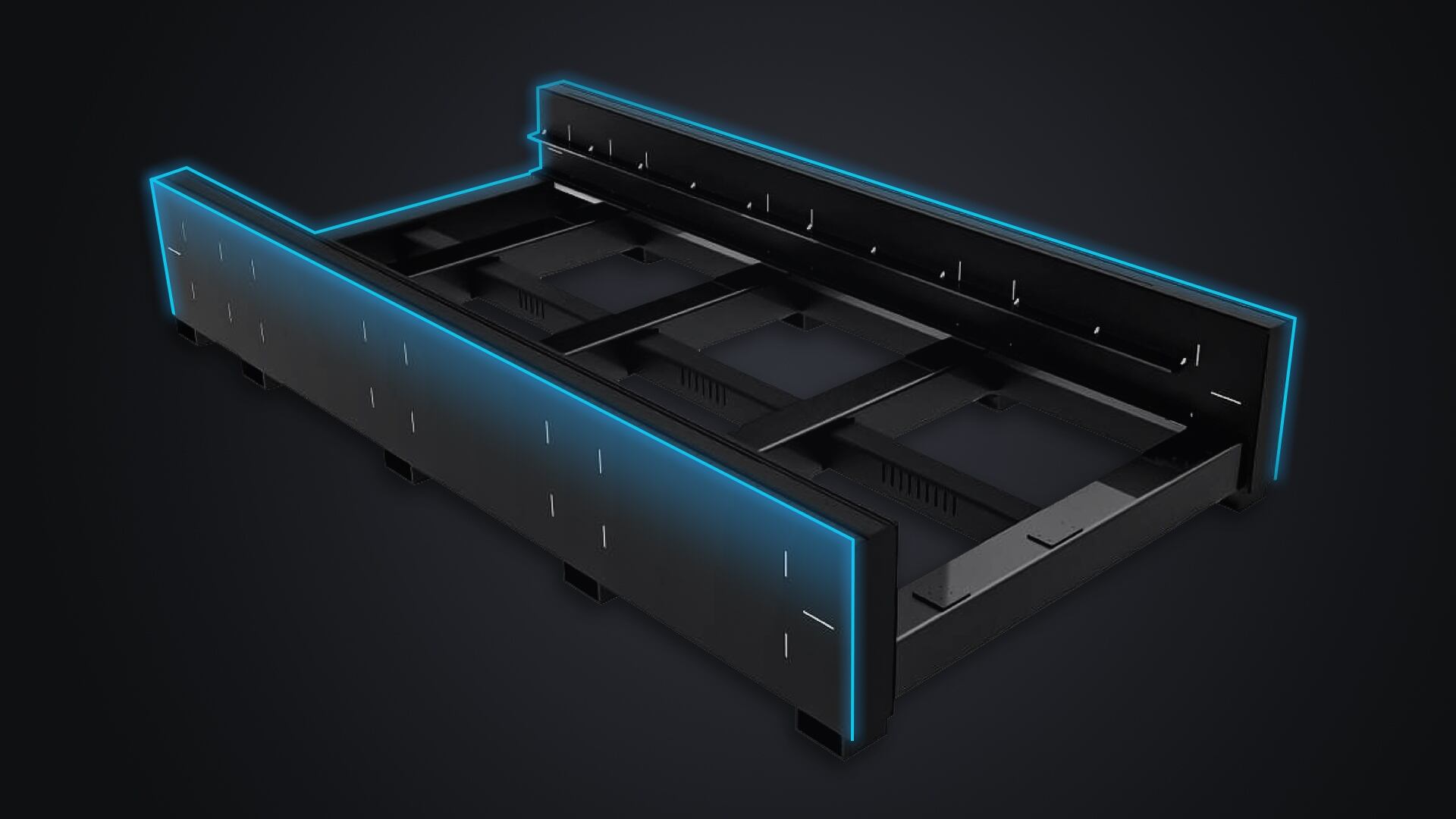

Standard bed features • Using 8mm plate tenon riveting welding process. • The two sides of the bed partition dust, super smoke exhaust effect. • Using annealing process, the bed is not easy to change. • Three layer spraying process, the bed does not drop paint.

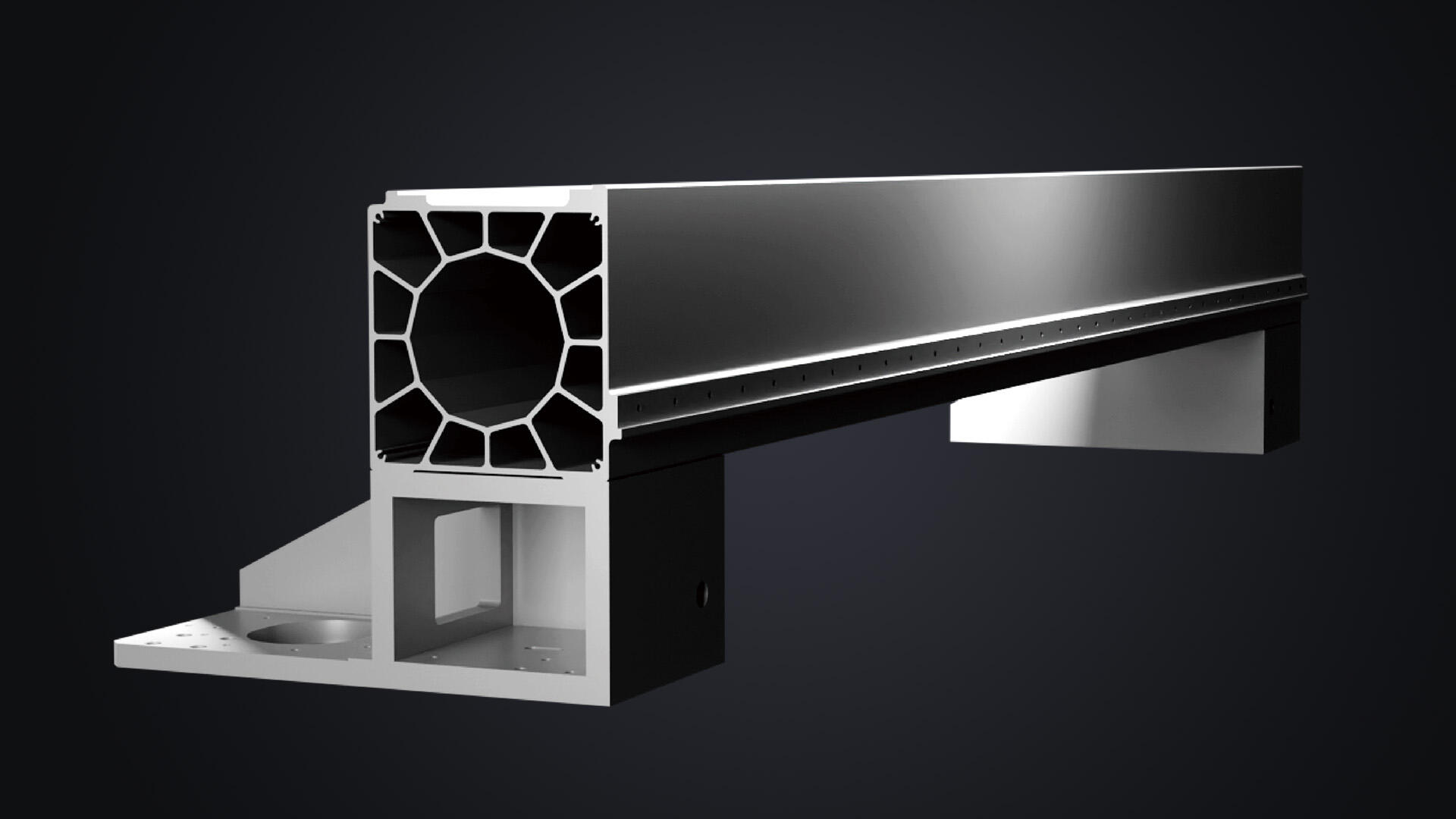

	Aircraft-grade aluminum crossbeam: • Round structure cast aluminum beam, uniform force, stable accuracy. • Silver powder coating process, aluminum life, corrosion resistance, beautiful. • Z-axis slide 130cm, (economic Z-axis 130cm). • Protective spring.

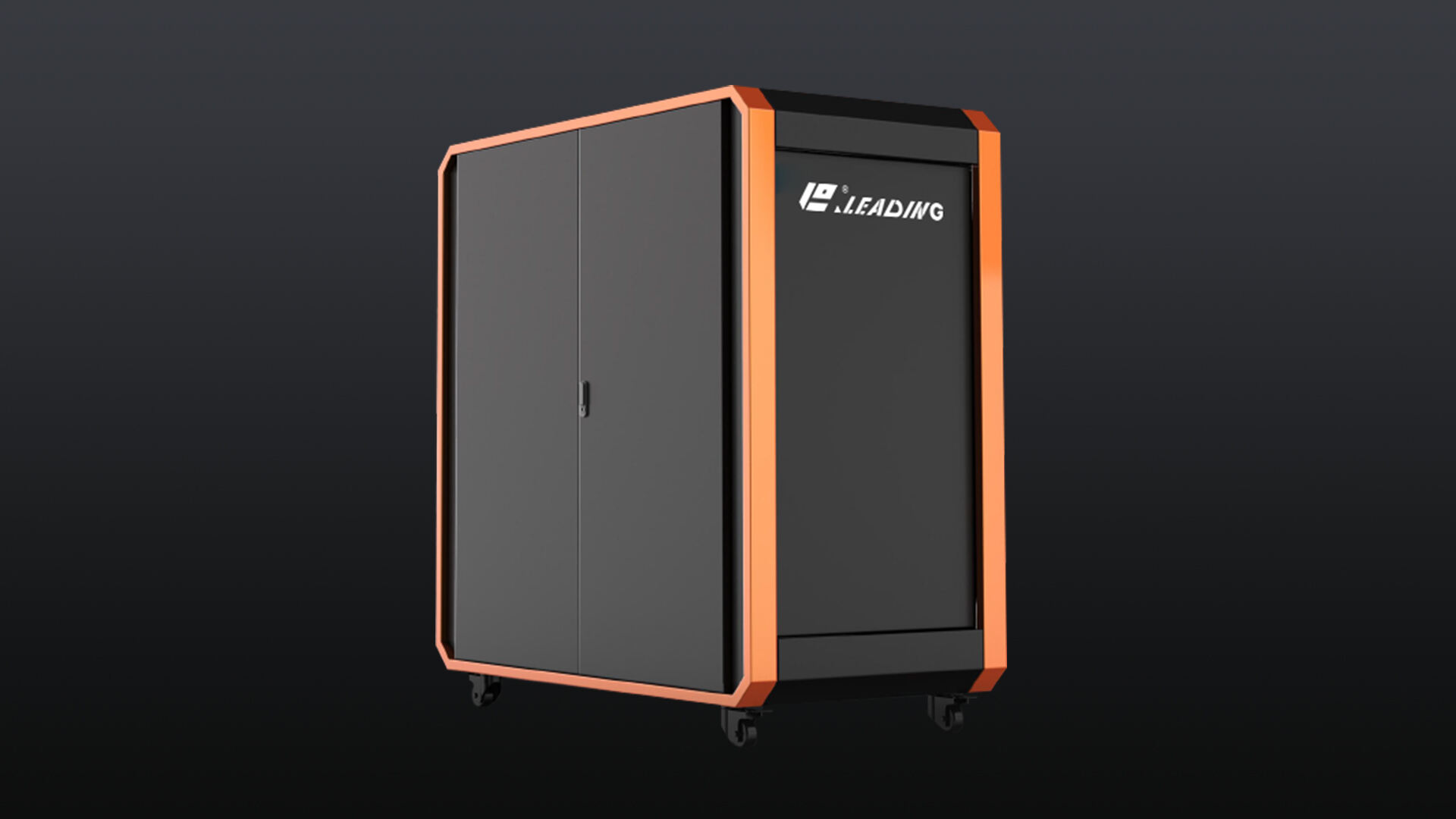

Centralized control and protection The electrical control components of the laser cutting machine are centrally installed in an independent electric box for easy unified management. lt can effectively prevent circuit failure from causing damage to equipment and operators, and quickly cut off the power supply when the circuit is abnormal to ensure the safety of equipment and personnel.

Specifications

Model	LEA-DC3015
Machine bed	Square tube welding
Gantry struture	Aluminum
Working area	3000*1500mm
Machine overall dimensions	1100028502260mm
Overall weight	6500kg
Guiderail	THK/PEK/HIWIN
Laser head	Raytools/Precitec
Laser source	IPG/Raycus/MAX
Servo motor and drive	YASKAWA/FUJ
Control system	Sypcut/WEIHONG
Max linkage speed	100m/min
Max acceleration	1.5G
Positioning accuracy	0.03mm
Pepositioning accuracy	0.02mm
laser power	1KW-6KW
Power supply	380V 50Hz/60Hz/60A
cutting material	lron/CS/SS/Aluminum/Copper and all kinds metal
Other Models	4015/6015/4020/6020/6025

FAQ

1. What is the warranty policy for the machine and its core components?

-Both the whole machine and the laser generator come with a 2-year warranty, excluding wearing parts. The warranty period starts from the machine finished date notified by us.

2. Is lifetime maintenance service provided after purchasing the machine?

-Lifetime maintenance free of charge is provided.

3. Do you offer training related to machine operation?

-Free training courses are available at our plant.

4. How can I get after-sales technical support? What communication channels are available?

-There is a specialized after-sales service group available 24 hours a day. Free technical support can be obtained via Email, WhatsApp, WeChat and other channels.

5. Do I need additional debugging after receiving the machine, and can it be used directly?

-The machine has been tested and adjusted before delivery. You can use it directly after receiving it.

6. Do you provide on-site technical services? How are the related costs borne?

-On-site technical services are available, including machine installation, commissioning and maintenance. Customers need to bear the engineer's ticket and related charges, and the accommodation problem shall be handled by the customer.

7. Is machine installation complicated? Which main parts need to be connected? How to get guidance if there are questions?

-The machine is shipped in a full container with few disassembled parts. The main parts to be connected are the laser source, water chiller and controller. Detailed manuals and videos are provided. If you have any questions, our after-sales staff can guide you hand by hand via video call.
